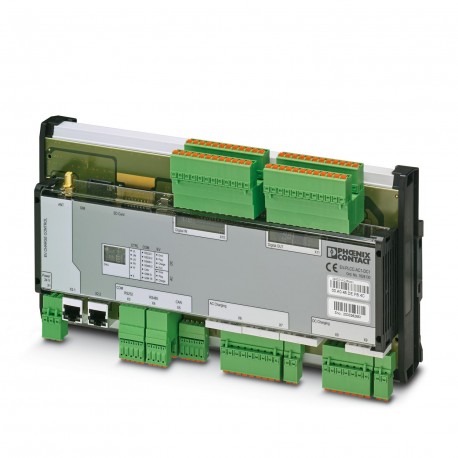

EV-PLCC-AC1-DC1
1624130
PHOENIX_CONTACT
1
Programmable charging controller for DC and AC charging of electric vehicles in accordance with IEC 61851-1,-23, DIN SPEC 70121 with integrated 3G mobile network modem
Programmable load control for DC and AC charging of electric vehicles according to IEC 61851-1,-23, DIN SPEC 70121, CHAdeMO with integrated mobile radio modem
Programmable charging controller for DC and AC charging of electric vehicles in accordance with IEC 61851-1,-23, DIN SPEC 70121, and CHAdeMO, with integrated cellular modem
Industrial socket/plug applications > Charging controller E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Digital | |
| Number of digital inputs | 16 |
| Connection method | COMBICON connectors |
| Description of the input | EN 61131-2 type 1 |
| Input voltage range | -0.5 V DC ... 30 V DC |
| -0.5 V DC ... 5 V DC (“0” signal) | |
| 15 V DC ... 30 V DC (“1” signal) | |
| Typical response time | min. 3 ms |
| Cable length | max. 30 m |
| Resistance to permanent reverse voltage | max. 500 mA |
| Digital | |
| Connection method | COMBICON connectors |
| Number outputs | 16 |
| Output voltage | 24 V DC |
| Maximum output current per channel | 500 mA |
| Switching | |
| Output name | AC charging locking system |
| Maximum output current | max. 2 A |
| Maximum output voltage | 12 V DC (Internal supply) |
| Battery | integrated (rechargeable battery buffered) |
| Conductor connection | |
| Connection method | COMBICON connectors |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Interface | Ethernet (2x) |
| Wireless | |
| Interface description | 3G / 2G |
| Note | Hardware revision 02 or later |
| Frequency | 900 MHz (GSM/GPRS/EDGE ) |
| 1800 MHz (GSM/GPRS/EDGE ) | |
| 850 MHz (UMTS/HSPA (Class 3)) | |
| 1900 MHz (UMTS/HSPA (Class 3)) | |
| 2100 MHz (UMTS/HSPA (Class 3)) | |
| Connection method | SMA (female) |
| Impedance | 50 Ω |
| Antenna | max. cable length of 30 m |
| SIM Interface | 1.8 volt and 3 volt SIM card |
| GPRS | Class 12, Class B |
| EDGE | Multislot Class 10 |
| UMTS | HSPA 3GPP R6 |
| Protocols supported | OCPP 1.6J (Core-Profile) |
| Wireless | |
| Interface description | 4G / 2G |
| Note | Hardware revision 04 or later |
| Frequency | 900 MHz (GSM/GPRS/EDGE ) |
| 1800 MHz (GSM/GPRS/EDGE ) | |
| 800 MHz (LTE B20) | |
| 900 MHz (LTE B8) | |
| 1800 MHz (LTE B3) | |
| 2100 MHz (LTE B1) | |
| 2600 MHz (LTE B7) | |
| 700 MHz (LTE B28) | |
| Connection method | SMA (female) |
| Impedance | 50 Ω |
| Antenna | max. cable length of 30 m |
| SIM Interface | 1.8 volt and 3 volt SIM card |
| GPRS | Class 12, Class B |
| EDGE | Multislot Class 10 |
| LTE | CAT1, CAT4 |
| Protocols supported | OCPP 1.6J (Core-Profile) |
| DC charging | |
| Standards/regulations | IEC 61851-1 |
| IEC 61851-23 | |
| Charging mode | Mode 4 |
| Communication | DIN SPEC 70121 |
| Cable length | max. 10 m |
| Proximity | Analog input, reserved for future applications |
| Temperature sensors | 2x Pt 1000 |
| Temperature range | -20 °C ... 120 °C |
| Relay output | DC charging enabled |
| Maximum switching voltage | 30 V (External supply) |
| Max. switching current | 6 A (External supply) |
| AC charging | |
| Standards/regulations | IEC 61851-1, Annex A+B |
| Charging mode | Mode 3, Case B + C |
| Locking control | Relay output, supplied internally |
| Locking feedback | Resistance measurement |
| Voltage | ± 12 V |
| Maximum current for locking actuators | 2 A |
| Activation time | Can be set via application program |
| Behavior in the event of voltage drop | Automatic unlocking |
| Switching thresholds | Can be set via application program |
| Temperature sensors | 1x Pt 1000 (evaluation via application program) |
| Temperature range | -20 °C ... 120 °C |
| Relay output | AC charging enabled |
| Maximum switching voltage | 30 V (External supply) |
| Max. switching current | 6 A (External supply) |
| RS-485 | |
| Interface | RS-485 2-wire |
| Connection method | COMBICON connectors |
| Number of interfaces | 2 |
| Transmission length | max. 3 m (with shielded cable max. 30 m) |
| Termination resistor | 120 Ω (Can be connected internally) |
| RS-232 | |
| Interface | RS-232 |
| Connection method | COMBICON connectors |
| Number of interfaces | 2 |
| Transmission length | max. 3 m (with shielded cable max. 30 m) |
| Ethernet | |
| Interface | Ethernet |
| Connection method | RJ45 jack |
| Number of interfaces | 2 |
| Transmission speed | 100 Mbps |
| Transmission length | max. 100 m |
| CAN-Bus | |
| Interface | CAN bus |
| Connection method | COMBICON connectors |
| Number of interfaces | 1 (Transparent mode, CAN 2.0a, 11 Bit Object Identifier, CAN 2.0b, 29 Bit Object Identifier) |
| Transmission speed | 500 kbps (Default) |
| 125 kbps, 250 kbps, 1000 kbps (adjustable) | |
| Transmission length | max. 3 m (with shielded cable max. 30 m) |
| Termination resistor | 120 Ω (Can be connected internally) |
| Configuration memory | min. 4 Mbyte (depending on storage media) |
| IEC 61131 runtime system | |
| Program memory | 1 Mbyte (86 K instructions (IL)) |
| Data storage system | 1 Mbyte |
| Retentive data storage | 48 kByte (NVRAM) |
| Number of control tasks | 8 |
| Processing speed | 1.3 ms (1 K mix instructions) |
| 90 µs (1 K bit instructions) | |
| Charging controllers | |
| Application | Programmable charging controller for DC and AC charging of electric vehicles in accordance with IEC 61851-1,-23, DIN SPEC 70121, and CHAdeMO, with integrated cellular modem |
| Type | in housing |
| Number of charging points | 2 |
| System requirements | |
| Engineering tool | PC Worx |
| Diagnostics tool | DIAG+ |
| Runtime system | eCLR |
| Supply | |
| Supply voltage UL | 24 V DC |
| Supply voltage range UM | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Residual ripple, in reference to the measured value | 5 % |
| Segment circuit supply US | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
| Current consumption from UM | max. 8 A DC |
| Current consumption from US | max. 8 A DC |
| Power supply at UL | max. 0.8 A DC |
| Power supply at UM | max. 8 A DC (sum of UM+ US) |
| Power supply at US | max. 8 A DC (sum of UM+ US) |
| Real-time clock | |
| Realtime clock | yes |
| Supply | |
| Supply voltage | 24 V DC (Length of cable max. 30 m) |
| Supply voltage range | 19.2 V DC ... 30 V DC (Incl. all tolerances, incl. residual ripple) |
| Product type | DC charging controller |
| Product family | CHARX control professional |
| Application | Programmable charging controller for DC and AC charging of electric vehicles in accordance with IEC 61851-1,-23, DIN SPEC 70121, and CHAdeMO, with integrated cellular modem |
| Operating mode | Stand-Alone |
| Client | |
| Server | |
| Data management status | |
| Article revision | 06 |
| Width | 285.00 mm |
| Height | 158.00 mm |
| Depth | 70.00 mm |
| Mounting type | DIN rail mounting |
| Assembly note | DIN rail mounting |
| Mounting position | horizontal |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2, non-condensing, no ice formation) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (in accordance with EN 61131-2) |
| Shock (operation) | 25g (Criterion 1, according to IEC 60068-2-27) |
| Vibration (operation) | 5g |
| Vibration (storage/transport) | 5g |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above mean sea level) |
| Air pressure (storage/transport) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
| Standards | |
| Standards/regulations | IEC 61851-23 |
| DIN SPEC 70121 | |
| CHAdeMO V1.1 | |
| Conformance with EMC directives | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electrostatic discharge (ESD)EN 61000-4-2/IEC 61000-4-2 Criterion B, ±4 kV contact discharge, ±8 kV air discharge |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electromagnetic fieldsEN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Fast transients (burst)EN 61000-4-4/IEC 61000-4-4 Criterion B, ±2 kV | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Transient overvoltage (surge)EN 61000-4-5/IEC 61000-4-5 Criterion B, Supply lines: 1 kV, Signal/data lines: 0,5 kV | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Conducted interferenceEN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V | |
| Noise emission test in accordance with EN 61000-6-4/IEC 61000-6-4 EN 55011 Class A |
| Feature Name | Feature Value |
|---|---|
| Emergency release at power failure (EF009316) | No |
| Max. number of addressable charging points (EF009156) | 2 |
| With communication interface (EF006609) | Yes |
| Width (EF000008) | 285 mm |
| Height (EF000040) | 158 mm |
| Depth (EF000049) | 70 mm |
| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
