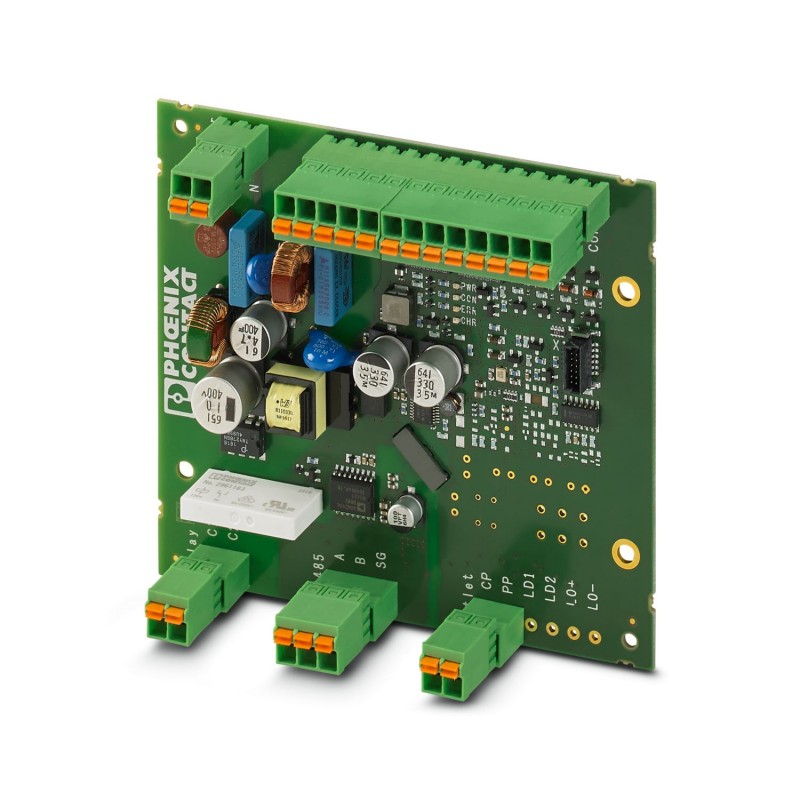

EV-CC-AC1-M3-CC-SER-PCB-MSTB 1627367 PHOENIX CONTACT AC charging controller
EV-CC-AC1-M3-CC-SER-PCB-MSTB
1627367
PHOENIX_CONTACT
AC charging controller
Industrial socket/plug applications > Charging controller E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1627367 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 765 (C-2-2017) |
| GTIN | 4055626342979 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | AC charging controller for private and commercial applications (EU/CN) |
|---|---|
| Type | as uncoated PCB |
| Standards/regulations | IEC 61851-1 |
| GB/T 18487.1-2015 | |
| SAE J1772 | |
| Charging mode | Mode 3, Case C |
| Note on the connection method | with MSTB connection |
| Number of supported charging points | 1 |
| Conformance | CE-compliant |
Ambient conditions
| Ambient temperature (operation) | -35 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 30 % ... 95 % |
| Degree of protection | IP00 |
Inputs
| Number of digital inputs | 5 |
|---|---|
| Frequency range | 50 Hz ... 60 Hz |
| Nominal power consumption | < 0.5 W (No-load) |
| Nominal current IN | ≤ 1 mA |
| Nominal input voltage UN | 12 V |
| Input voltage range U1 | 0 V ... 3 V (Off) |
| Input voltage range U2 | 9 V ... 15 V (On) |
Switching outputs
| Control of charging contactor | Relay output C1.2 |
|---|---|
| Minimum switching capacity | 1500 VA |
| Maximum switching voltage | 250 V AC (External supply) |
| Max. switching current | 6 A |
Digital outputs
| Control of additional functions | 4 digital outputs |
|---|---|
| Connection technology | Spring-cage connection |
| Maximum output voltage | 30 V |
| Maximum output current | 0.5 A (Total current for all outputs; internally supplied) |
| 0.6 A (Per output; externally supplied) |
RS-485 data interfaces
| Number of interfaces | 1 |
|---|---|
| Bus system | RS-485 |
| Connection method | Pluggable spring-cage terminal blocks |
| Transmission speed | 9.6 kbps (Standard) |
| 9.6 kbps ... 19.2 kbps (adjustable) | |
| Data flow control/protocols | Modbus/RTU (slave) |
Connection data
| Connection method | Plug-in push-in spring-cage connection |
|---|---|
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
Device supply
| Supply voltage | 230 V |
|---|---|
| Supply voltage range | 100 V AC ... 240 V AC (nominal voltage range) |
| Max. current consumption | 40 mA |
| Nominal power consumption | < 1 W (No-load) |
| Frequency range | 50 Hz ... 60 Hz |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027210902eCl@ss 4.127371105eCl@ss 5.027371801eCl@ss 5.127242700eCl@ss 6.027242200eCl@ss 7.027242207eCl@ss 8.027242207eCl@ss 9.027144703
