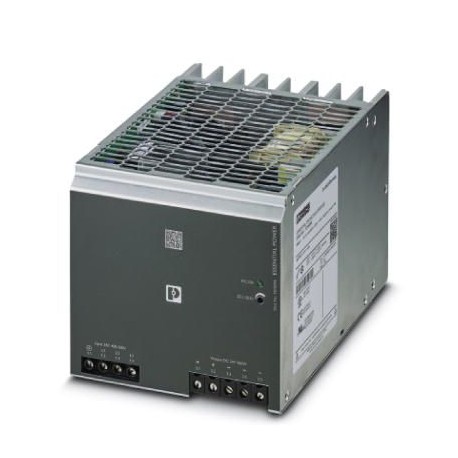

PHOENIX CONTACT  ESSENTIAL-PS/3AC/24DC/960W/EE 1018294 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ESSENTIAL-PS/3AC/24DC/960W/EE 1018294 PHOENIX CONTACT Power supply unit

Reference: ESSENTIAL-PS/3AC/24DC/960W/EE

Code: 1018294

Manufacturer: PHOENIX CONTACT

Description:

Power supply unit
ESSENTIAL edition primary switching power supply for rail mounting, input: three-phase, output: 24 V DC/960 W

Categories:

  • Low-voltage industrial components > DC-power supply
  • PHOENIX CONTACT > Power Supplies (PS)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 332,11 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey1018294
Packing unit1 pc
GTIN4055626501796
Weight per Piece (excluding packing)3,450.000 g
Custom tariff number85044030
Country of originCN (China)

Dimensions

Width139 mm
Height130 mm
Depth190 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 55 °C Derating: 2.5 %/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2

Input data

Nominal input voltage range3x 400 V AC ... 500 V AC
Input voltage range3x 320 V AC ... 575 V AC
AC frequency range45 Hz ... 65 Hz
Discharge current to PE< 3.5 mA
Current consumption3x 2 A (400 V AC)
3x 1.6 A (480 V AC)
Inrush surge current< 20 A
Mains buffering> 16 ms (3x 400 V AC)
Choice of suitable circuit breakers10 A ... 16 A (UL: 20 A)
Type of protectionTransient surge protection
Protective circuit/componentVaristor

Output data

Nominal output voltage24 V DC ±1 %
Setting range of the output voltage (USet)22.5 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (IN)40 A (UOUT= 24 V DC)
Derating55 °C ... 70 °C (2.5%/K)
Connection in parallelYes, for redundancy and increased capacity
Feedback resistance35 V DC
Protection against surge voltage on the output< 35 V DC
Active current limitationapprox. 42 A
Residual ripple< 20 mVPP
Output power960 W
Typical response time< 1 s
Peak switching voltages nominal load< 40 mVPP
Maximum power dissipation in no-load condition11 W
Power loss nominal load max.87 W

General

Net weight3.2 kg
Operating voltage displayGreen LED
Efficiency91.5 % (at 400 V AC and nominal values)
Insulation voltage input/output3 kV AC (type test)
1.5 kV AC (routine test)
Insulation voltage output / PE500 V DC
Protection classI (with PE connection)
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)> 700000 h

Connection data, input

Connection methodScrew connection

Connection data, output

Connection methodScrew connection

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise immunityEN 61000-6-2:2005
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
Standards/regulationsEN 61000-4-11
Low Voltage DirectiveConformance with LV directive 2006/95/EC
Standard - Electrical safetyEN 60950-1
Standard – Safety extra-low voltageEN 60950-1 (SELV)
UL approvalsUL/C-UL listed UL 508
Shock15g
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.
Approval - requirement of the semiconductor industry with regard to mains voltage dipsSEMI F47 - 0706 (200 V AC)

Classifications

ETIM for 1018294 Low-voltage industrial controls and switchgear (EC002540)

Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature name1st secondary output voltage (EF006792)
Feature value22.5 V
Feature nameMax. output current 1 (EF008284)
Feature value40 A
Feature nameSecondary voltage adjustable (EF007002)
Feature valueYes
Feature nameNominal value output voltage 1 (EF009393)
Feature value24 V
Feature nameNominal value output current 1 (EF009396)
Feature value40 A
Feature nameShort-circuit-proof (EF007332)
Feature valueYes
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value320 V
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value400 V
Feature nameOutput voltage stabilized (EF003092)
Feature valueYes
Feature namePower consumption (EF000346)
Feature value1149.27 VA
Feature namePower output (EF003034)
Feature value960 W
Feature nameStabilized (EF005302)
Feature valueYes
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameWall mounting possible (EF003973)
Feature valueNo
Feature nameModular version (EF001126)
Feature valueNo
Feature nameBuilt-in height (EF000332)
Feature value130 mm
Feature nameDirect mounting possible (EF005689)
Feature valueNo
Feature nameWidth (EF000008)
Feature value139 mm
Feature nameHeight (EF000040)
Feature value130 mm
Feature nameDepth (EF000049)
Feature value190 mm
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueNone
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
