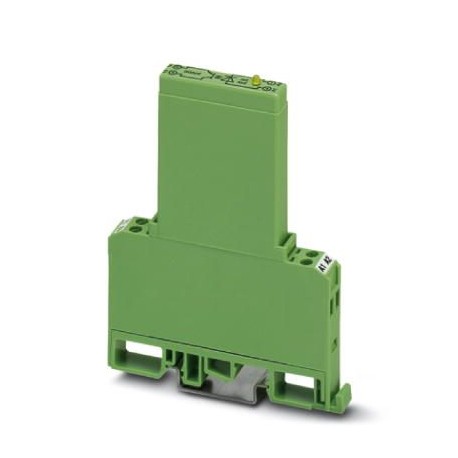

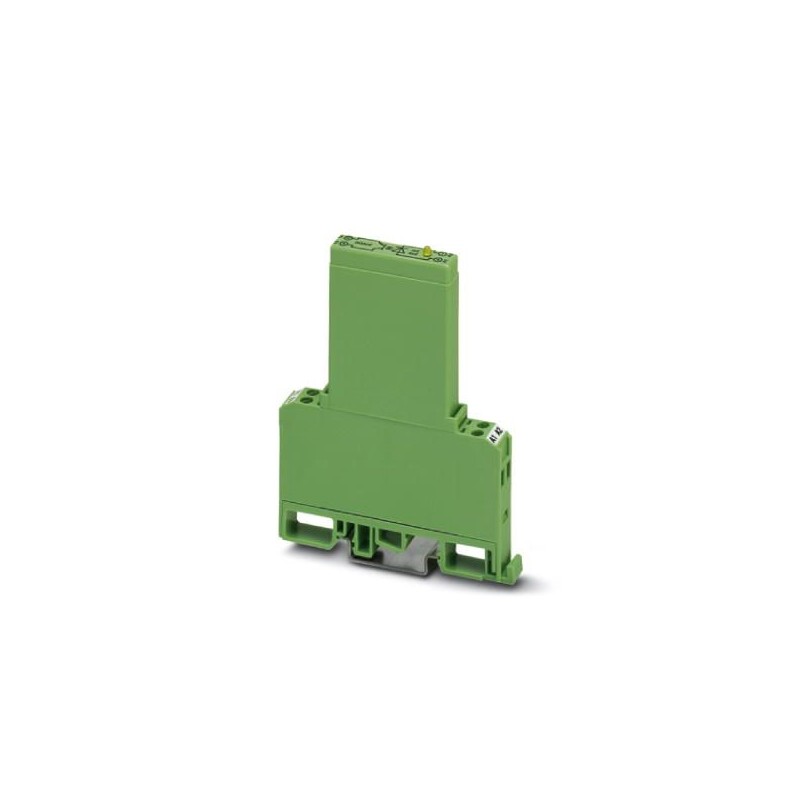

EMG 10-OE-230AC/48DC/100/SO218 2311700 PHOENIX CONTACT Solid-state relay module
EMG 10-OE-230AC/48DC/100/SO218
2311700
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Solid-state relay module
Input solid-state relay, with indicator light and protection circuit in the output and input circuit, input: 230 V AC, output: 4 V DC - 48 V DC/max. 35 mA, customer-specific variant for 50 Hz triggering
Relays > Optocoupler
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2311700 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356287326 |
| Weight per Piece (excluding packing) | 40.400 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Input data
| Nominal input voltage UN | 230 V AC |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Input voltage range | 207 V AC ... 253 V AC |
| Typical input current at UN | 3 mA |
| Operating voltage display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 50 Hz |
Output data
| Output nominal voltage | 48 V DC |
|---|---|
| Output voltage range | 4 V DC ... 48 V DC |
| Limiting continuous current | 35 mA |
| Voltage drop at max. limiting continuous current | 0.9 V |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data, output side
| Connection name | Output side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
General
| Test voltage input/output | 3.5 kV AC |
|---|---|
| Mounting position | any |
| Standards/regulations | DIN VDE 0110 |
| DIN VDE 0106-101 | |
| Degree of pollution | 2 |
| Overvoltage category | III |
Standards and Regulations
| Standards/regulations | DIN VDE 0110 |
|---|---|
| DIN VDE 0106-101 | |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 207 V |
| Output voltage (EF003933) | 4 V |
| Rated operation current Ie (EF001443) | 0.035 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN .pdf | 28 Mbytes |
|
