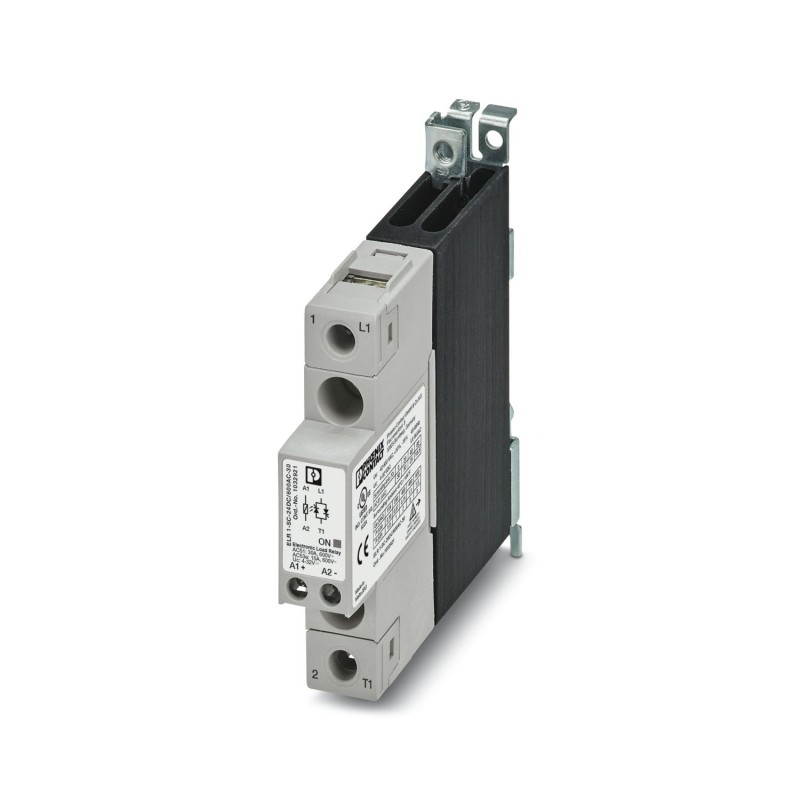

ELR 1-SC-24DC/600AC-30 1032921 PHOENIX CONTACT Single-phase solid-state contactor, input voltage: 24 V DC, o..
ELR 1-SC-24DC/600AC-30
1032921
PHOENIX_CONTACT
Single-phase solid-state contactor, input voltage: 24 V DC, output current: 30 A, zero voltage switch
Single-phase semiconductor contactor, input voltage: 24 V DC, output current: 30 A, zero voltage switch
Low-voltage industrial components > Power contactor, AC switching
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1032921 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 49 (C-5-2019) |
| GTIN | 4055626537924 |
| Weight per Piece (excluding packing) | 260.000 g |
| Custom tariff number | 85362010 |
| Country of origin | MT (Malta) |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Input data
| Input name | Control input |
|---|---|
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 4 V DC ... 32 V DC |
| Rated actuating current IC | approx. 12 mA |
| Switching threshold | ≤ 1 V DC (“0” signal) |
| ≥ 4 V DC (“1” signal) | |
| Transmission frequency | 25 Hz |
| Operating voltage display | Green LED |
Output data load output
| Output name | Load output |
|---|---|
| Operating voltage range | 42 V AC ... 660 V AC |
| Load current range | 250 mA ... 30 A (see to derating) |
| Rated operating current at AC-51 | 30 A |
| Rated operating current at AC-53a | 15 A (TA= 25 °C) |
| 5 A (TA= 40 °C) | |
| Leakage current | < 3 mA (In off state) |
| Residual voltage | < 1 V |
| Surge current | 600 A (t = 10 ms) |
| Type of protection | Varistor |
General
| Mounting position | Vertical (horizontal DIN rail) |
|---|---|
| Assembly instructions | Can be aligned with ≥ 22.5 mm spacing |
Connection data
| Connection name | Control circuits |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section AWG | 18 ... 12 |
Connection data 2
| Connection name | Load circuit |
|---|---|
| Connection method | Screw connection |
| Stripping length | 12 mm |
| Screw thread | M4 |
| Conductor cross section solid | 2.5 mm² ... 6 mm² |
| Conductor cross section flexible | 1 mm² ... 4 mm² |
| Conductor cross section AWG | 14 ... 10 |
Standards and Regulations
| Designation | Standards/regulations |
|---|---|
| Standards/regulations | EN 61000-4-2 |
| EN 61000-4-3 | |
| EN 61000-4-4 | |
| EN 61000-4-5 | |
| EN 55011 |
Classifications
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 0 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 30 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 15 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Modular version (EF001126) | Yes |
