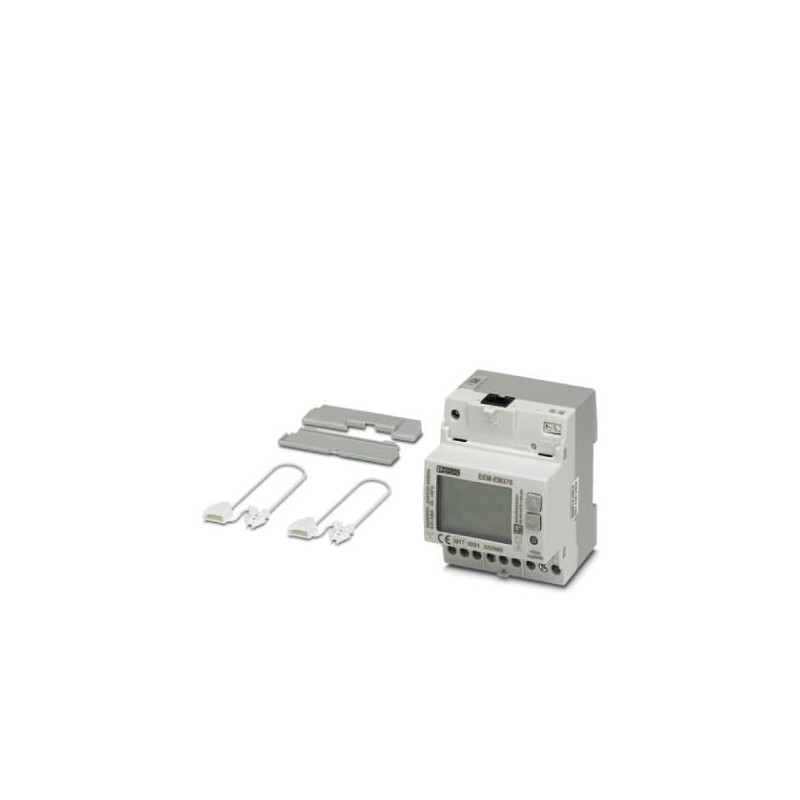

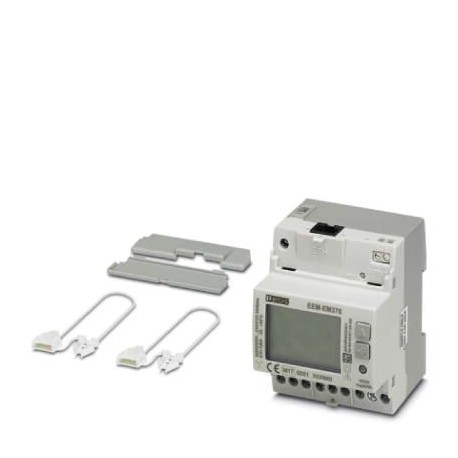

EEM-EM375 2908581 PHOENIX CONTACT Measuring instrument
EEM-EM375
2908581
PHOENIX_CONTACT
Measuring instrument
Three-phase energy meter for measuring active power with 1 A / 5 A transformer measurement in networks up to 500 V, with S0 output, Ethernet interface, certified according to the MID directive
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2908581 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626338248 |
| Weight per Piece (excluding packing) | 470.800 g |
| Custom tariff number | 85371098 |
| Country of origin | IT (Italy) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Max. permissible relative humidity (operation) | 80 % |
Input data
| Designation | Measuring input |
|---|---|
| Input voltage range | 3x 184 V ... 288 V (320 V ... 500 V) |
| Power consumption | 3.5 VA (1 W) |
| Frequency range | 45 Hz ... 65 Hz |
| Energy (EN 50470-3) | Class B |
| Real energy (IEC 62053-21) | Class 1 |
| Reactive power (IEC 62053-23) | Class 2 |
Output data
| Designation | S0 output |
|---|---|
| Output description | Passive opto-isolated |
| Maximum switching voltage | 27 V DC |
| Max. switching current | 27 mA |
General data
| Degree of protection | IP51 (Front) |
|---|---|
| IP20 (Connections) | |
| Protection class | II (EN 50470-1) |
| Electric strength | 6 kV |
| 4 kV (EN 50470-3, 7.2) |
Connection data
| Connection name | Measurement connection |
|---|---|
| Connection method | Screw connection |
| Conductor cross section solid | 1.5 mm² ... 6 mm² |
| Connection name | Other connections |
| Connection method | Screw connection |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 5.027200307eCl@ss 5.127200307eCl@ss 6.027142300eCl@ss 7.027142330eCl@ss 8.027142330eCl@ss 9.027142330
