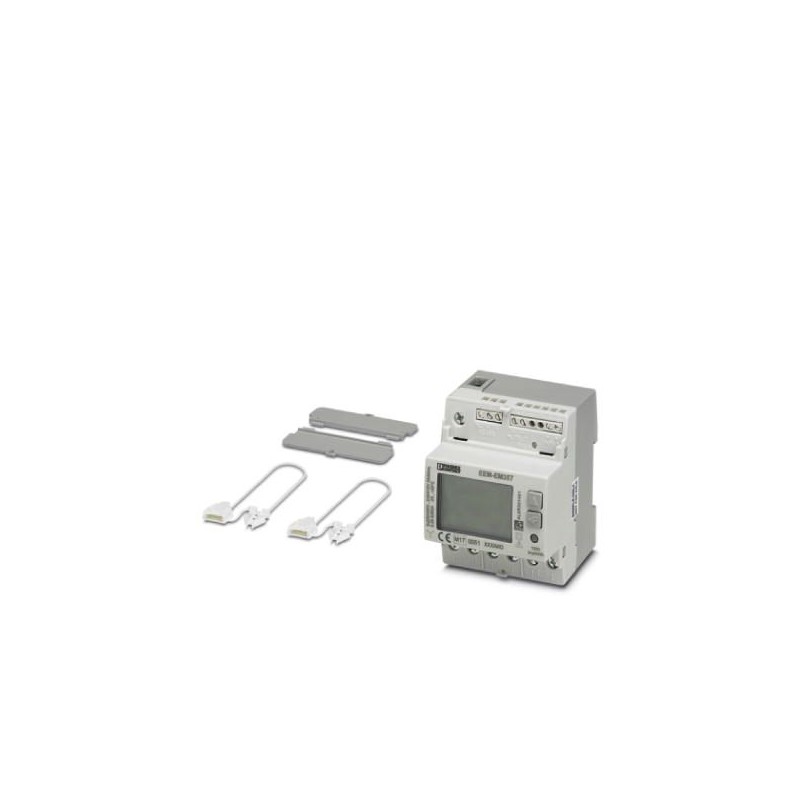

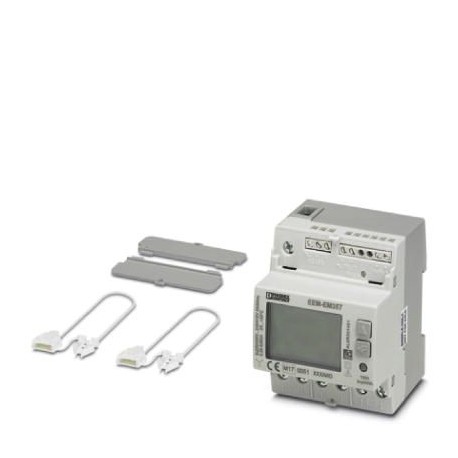

EEM-EM357 2908588 PHOENIX CONTACT Measuring instrument
EEM-EM357
2908588
PHOENIX_CONTACT
Measuring instrument
Three-phase energy meter to measure active power with direct measurement in networks up to 500 V / 80 A, with S0 output, with digital input and RS-485 interface, certified according to the MID directive
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2908588 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626338262 |
| Weight per Piece (excluding packing) | 485.600 g |
| Custom tariff number | 85371098 |
| Country of origin | IT (Italy) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Max. permissible relative humidity (operation) | 80 % |
Input data
| Designation | Measuring input |
|---|---|
| Input voltage range | 3x 184 V ... 288 V (320 V ... 500 V) |
| Power consumption | 3.5 VA (1 W) |
| Frequency range | 45 Hz ... 65 Hz |
| Energy (EN 50470-3) | Class B |
| Real energy (IEC 62053-21) | Class 1 |
| Reactive power (IEC 62053-23) | Class 2 |
| Designation | Digital input |
| Description of the input | Active opto-isolated |
| Input voltage range | 80 V AC/DC ... 276 V AC/DC |
Output data
| Designation | S0 output |
|---|---|
| Output description | Passive opto-isolated |
| Maximum switching voltage | 27 V DC |
| Max. switching current | 27 mA |
Communication interface
| Communication standard | RS-485 |
|---|---|
| Transmission speed range | 300 bps ... 57600 bps |
| Parity | odd, even, none |
| Stop bit | 1 |
| 2 |
General data
| Degree of protection | IP51 (Front) |
|---|---|
| IP20 (Connections) | |
| Protection class | II (EN 50470-1) |
| Electric strength | 6 kV |
| 4 kV (EN 50470-3, 7.2) |
Connection data
| Connection name | Measurement connection |
|---|---|
| Connection method | Screw connection |
| Conductor cross section solid | 1.5 mm² ... 35 mm² |
| Connection name | Other connections |
| Connection method | Screw connection |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 5.027200307eCl@ss 5.127200307eCl@ss 6.027142300eCl@ss 7.027142330eCl@ss 8.027142330eCl@ss 9.027142330
| Feature Name | Feature Value |
|---|---|
| Ampere meter (EF006555) | Yes |
| Reactive power meter (EF006556) | Yes |
| With rotational speed meter (EF006557) | No |
| Frequency meter (EF006558) | Yes |
| Pulse counter (EF006559) | No |
| Voltmeter (EF006560) | Yes |
| Effective power measurement device (EF006561) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
