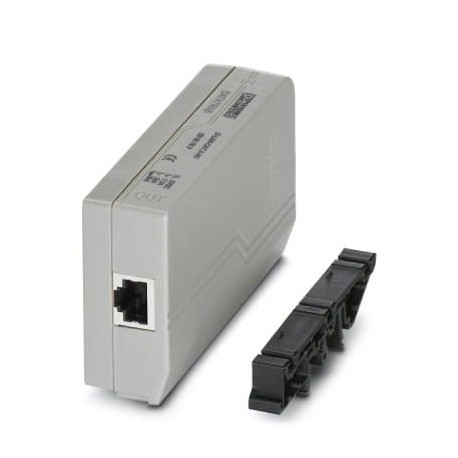

D-LAN-CAT.5-HC 2800763 PHOENIX CONTACT Surge protection device
D-LAN-CAT.5-HC
2800763
PHOENIX_CONTACT
Surge protection device
Surge protection for data networks up to 1 GBit/s. Use on Ethernet, Power over Ethernet (PoE, Mode A and Mode B), Token Ring, ISDN and DS1. RJ45 adapter with separate grounding line and fixing foot for DIN NS 35 rail.
Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2800763 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356730280 |
| Weight per Piece (excluding packing) | 25.000 g |
| Custom tariff number | 85363030 |
| Country of origin | CN (China) |
General
| Housing material | PC+ABS |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | gray |
| Standards for cearances and creepage distances | VDE 0110-1 |
| IEC 60664 | |
| Mounting type | Connection-specific attachment plug and DIN rail, 35 mm |
| Type | Attachment plug for DIN rail mounting |
| Number of positions | 8 |
| Direction of action | Line-Line & Line-Ground/Shield |
Protective circuit
| IEC test classification | B2 |
|---|---|
| C2 | |
| D1 | |
| VDE requirement class | B2 |
| C2 | |
| D1 | |
| Maximum continuous voltage UC | ± 5 V DC |
| Maximum continuous voltage UC(wire-wire) | ± 5 V DC (± 57 V DC / PoE+) |
| Nominal current IN | ≤ 1.5 A (25 °C) |
| Operating effective current ICat UC | ≤ 600 µA |
| Nominal discharge current In(8/20) µs (line-line) | 350 A |
| 350 A (per signal pair) | |
| Nominal discharge current In(8/20) µs (line-earth) | 2 kA (per signal pair) |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 1 kA (per signal pair) |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 10 kA (per signal pair) |
| Nominal pulse current Ian (10/700) µs (line-line) | ≤ 25 A |
| Nominal pulse current Ian (10/700) µs (line-earth) | ≤ 100 A |
| Nominal pulse current Ian (10/700) µs (line-line) | ≤ 25 A (per signal pair) |
| Nominal pulse current Ian (10/700) µs (line-earth) | ≤ 100 A (per signal pair) |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 25 V |
| ≤ 90 V (PoE) | |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 750 V |
| Residual voltage at In(line-line) | ≤ 35 V |
| ≤ 110 V (PoE) | |
| Residual voltage at In(line-earth) | ≤ 850 V (per signal pair) |
| Voltage protection level Up(line-line) | ≤ 20 V (B2 - 1 kV / 25 A) |
| ≤ 90 V (B2 - 1 kV / 25 A - PoE) | |
| ≤ 35 V (700 V / 350 A) | |
| ≤ 110 V (700 V / 350 A - PoE) | |
| Voltage protection level Up(line-earth) | ≤ 700 V (B2 - 4 kV / 100 A) |
| ≤ 850 V (C2 - 4 kV / 2 kA) | |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | ≤ 0.5 dB (100 MHz/100 Ω) |
| ≤ 1 dB (100 MHz/100 Ω/Link Class E) | |
| Near-end crosstalk attenuation | typ. 63 dB (1 MHz/100 Ω/Link Class E) |
| typ. 43 dB (16 MHz / 100 Ω / Link Class E) | |
| typ. 30 dB (100 MHz/100 Ω/Link Class E) | |
| > 40 dB (100 MHz/100 Ω) | |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system | > 100 MHz |
| Capacity (line-line) | typ. 15 pF (f= 1 MHz / VR= 0 V) |
| Capacity (line-earth) | typ. 5 pF (f= 1 MHz / VR= 0 V) |
| Impulse durability (line-line) | B2 - 1 kV / 25 A |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| C2 - 4 kV/2 kA | |
| D1 - 1kA |
Standards and Regulations
| Standards/specifications | IEC 61643-21/A1 2008 |
|---|---|
| GB/T 18802.21 2004 | |
| EN 61643-21/A1 2009 | |
| IEC 61643-21 2000 |
Classifications
eCl@ss 4.027140201eCl@ss 4.127140201eCl@ss 5.027130801eCl@ss 5.127130800eCl@ss 6.027130800eCl@ss 7.027130807eCl@ss 8.027130807eCl@ss 9.027130807
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN .pdf | 27 Mbytes |
|
