CUC-V14-F1ZNI-EM/R4B8 1413962 PHOENIX CONTACT Panel mounting frames
CUC-V14-F1ZNI-EM/R4B8
1413962
PHOENIX_CONTACT
Panel mounting frames

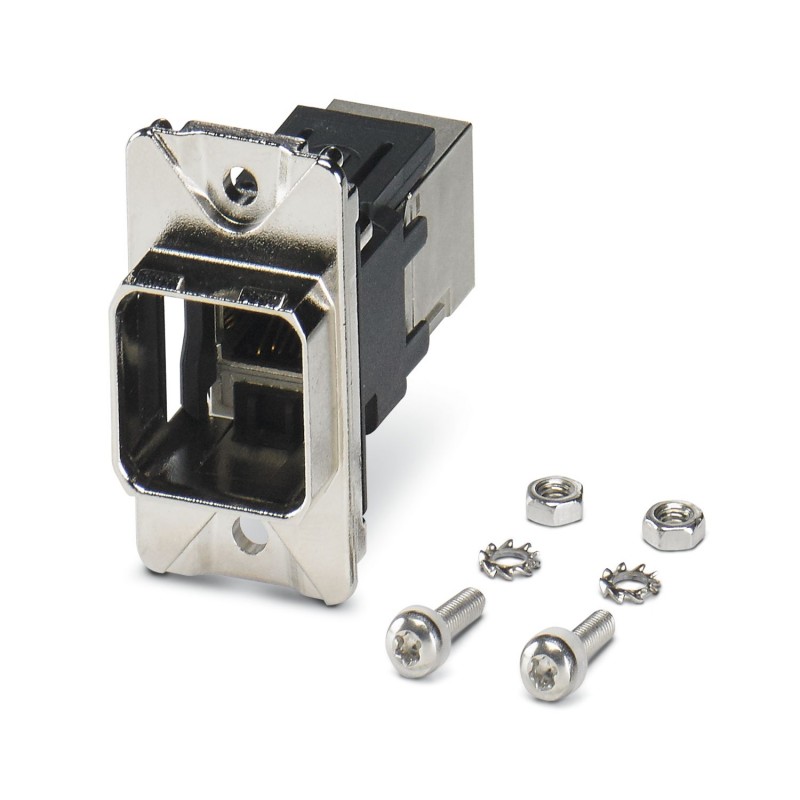

Recessed frame RJ45, IP67, for push-pull locking, metal, for rectangular mounting section, with seal and fixing screws, incl. RJ45 coupling module
RJ45 mounting frame, IP67, for push-pull locking, metal, for rectangular mounting section, with gasket and fastening screws, incl. RJ45 joint module
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1413962 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 364 (C-2-2017) |
| GTIN | 4055626082141 |
| Weight per Piece (excluding packing) | 42.800 g |
| Custom tariff number | 85389099 |
| Country of origin | TW (Taiwan) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Number of slots | 2 |
| Connection profile | RJ45 |
| Locking type | Push Pull |
| Insertion/withdrawal cycles | ≥ 750 |
| Tightening torque, min. | 0.5 Nm |
| Tightening torque max. | 0.75 Nm |
| Screw thread | M3 |
| Insulation resistance | > 500 MΩ |
| Degree of protection | IP65/IP67 |
| Type | RJ45, IP65/67, version 14 |
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
Ambient conditions
| Ambient temperature (operation) | -10 °C ... 60 °C |
|---|---|
| Ambient temperature (assembly) | -10 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Zinc die-cast |
| Housing surface material | Nickel-plated |
| Contact carrier material | PC |
| Contact surface material | Gold over nickel |
| Material | Metal |
| Seal material | NBR |
| Height | 42 mm |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| GRP transmission properties | CAT6A |
| Transmission speed | 1 Gbps |
| Frequency range | 250 MHz |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 72 V (DC) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260701eCl@ss 6.027261200eCl@ss 7.027440210eCl@ss 8.027440210eCl@ss 9.027440210
| Feature Name | Feature Value |
|---|---|
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 22.2 mm |
| Height (EF000040) | 42 mm |
| Depth (EF000049) | 46.2 mm |
