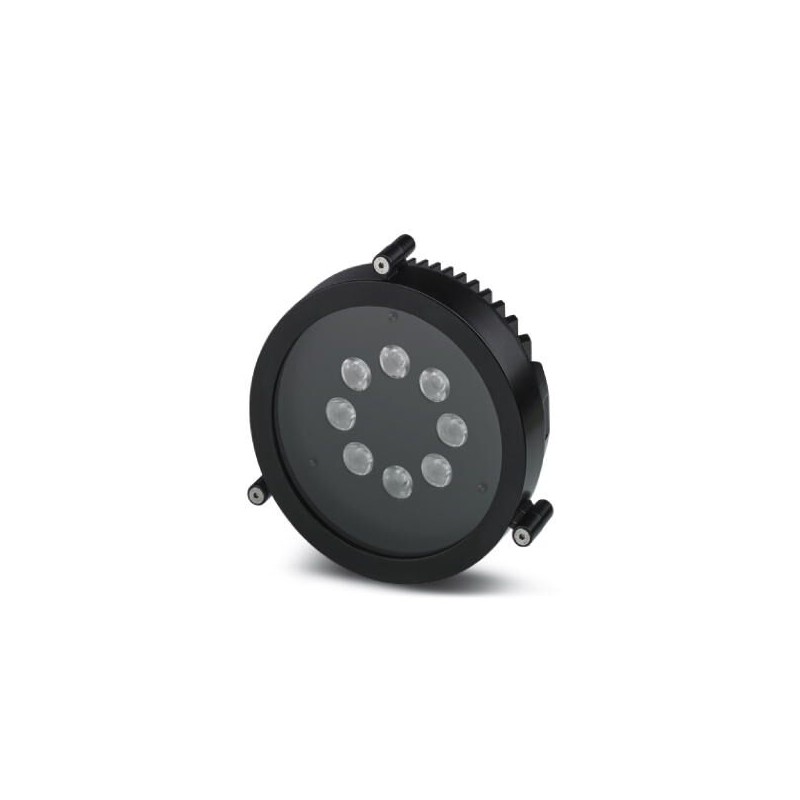

CSD-SL 200S WH 1029564 PHOENIX CONTACT Signal light, 24 V DC, white, communication interface, safe diagnosti..
CSD-SL 200S WH
1029564
PHOENIX_CONTACT
Signal light, 24 V DC, white, communication interface, safe diagnostics in accordance with safety standards
Signal light, 24 VDC, IALA white Optimum, diameter: 174 mm, protection index: IP65/IP67, Communication interface, Safe diagnostics
Optical and acoustic signalling equipment > Accessories/spare parts for optic and acoustic signalling equipment
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1029564 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 510 (C-6-2019) |
| GTIN | 4055626530376 |
| Custom tariff number | 85308000 |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Air pressure (operation) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP65/IP67 (When installed) |
General
| Net weight | 1680 g |
|---|---|
| Diagnostics messages | LEDs; temperature, current, voltage, etc. Yes |
| Mains failure, communication failure Yes | |
| Safe diagnostics (up to SIL 2/PL d) in conjunction with safe modules (safety technology) Yes | |
| Mounting position | vertical |
| Design | Operating hours counter |
| Inrush current | max. 12 A (µ-sec-pulse) |
Power supply for module electronics
| Connection method | M12 connector |
|---|---|
| Number of positions | 8 |
| Supply voltage | 24 V DC (DC) |
| Supply voltage range | 19.2 V DC ... 30 V DC (DC) |
| Current consumption | max. 590 mA (white LEDs) |
| Power consumption | typ. 12 W (white LEDs) |
Light properties
| Source of light type | LED |
|---|---|
| Number of LEDs | 8 (according to IALA recommendation E200-1 and CIE 1931) |
| Service life, lighting appliance | 50000 h |
| Light color | IALA white, optimum |
| Color temperature / wavelength | 5000 K ±1000K |
| Color class | C2 (EN 12966) |
| Luminance | R3 (EN 12966) |
| Luminance ratio | R3 (EN 12966) |
| Phantom light class | 5 (EN 12368) |
| Luminous intensity | max. 7300 Cd |
| Can be dimmed | Yes, in 256 steps |
| Emission angle | 7,5° x 7,5° |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.0 | 27144000 |
|---|---|
| eCl@ss 5.1 | 27144000 |
| eCl@ss 6.0 | 27144000 |
| eCl@ss 7.0 | 27144051 |
| eCl@ss 8.0 | 27144051 |
| eCl@ss 9.0 | 27144051 |
