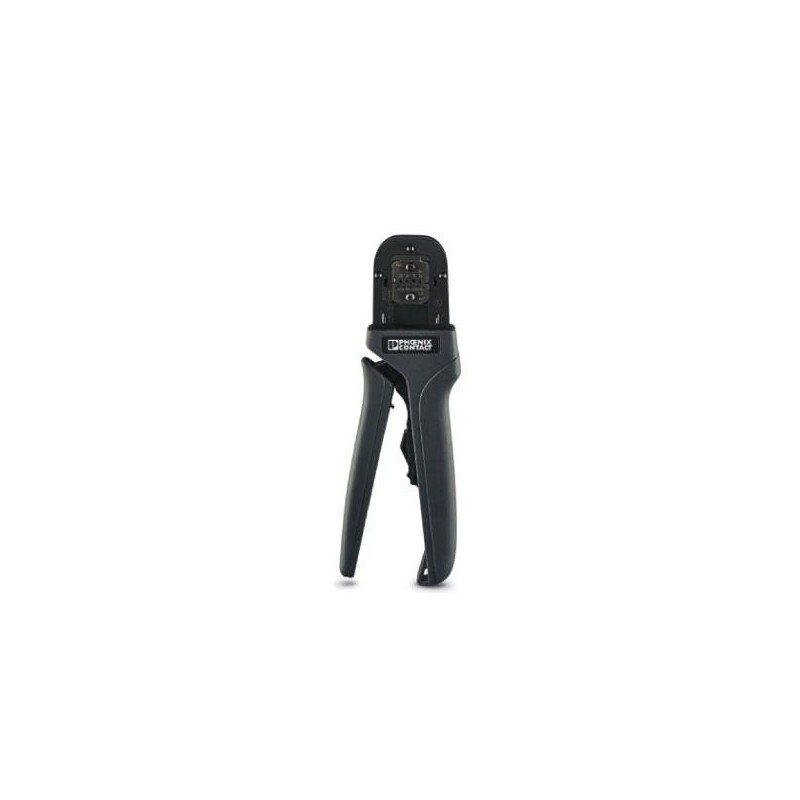

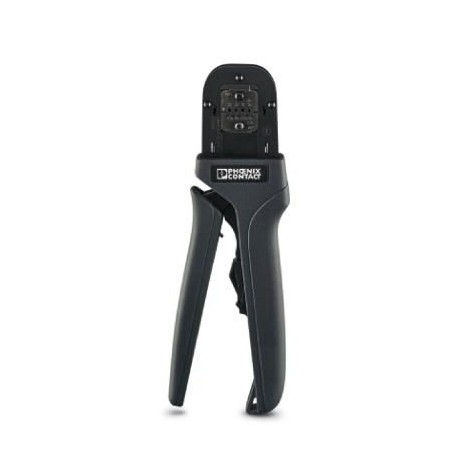

CRIMPFOX-P CC 0.75 L 1064998 PHOENIX CONTACT Crimping pliers
CRIMPFOX-P CC 0.75 L
1064998
PHOENIX_CONTACT
Crimping pliers
Crimp clamp, for COMBICON crimp connectors with cross-section: 0.14 ... 0.75 mm². Unlockable forced lock, precise parallel crimping, front insertion, C crimping, incl. 2 positioning aids
Tools (Press, cut and isolate) > Crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1064998 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626722979 |
| Weight per Piece (excluding packing) | 530.700 g |
| Custom tariff number | 82032000 |
| Country of origin | SE (Sweden) |
General
| Compression | B crimp |
|---|---|
| Designation | Crimping position 1 |
| Max. cross section | 0.34 mm² |
| AWG max | 22 |
| Designation | Crimping position 2 |
| Max. cross section | 0.5 mm² |
| AWG max | 20 |
| Designation | Crimping position 3 |
| Max. cross section | 0.75 mm² |
| AWG max | 18 |
| Die station | Crimping position 4 |
| Min. cross section | 0.14 mm² |
| Max. cross section | 0.25 mm² |
| AWG min | 26 |
| AWG max | 24 |
| Weight | 450 g |
| Min. cross section | 0.14 mm² |
| Max. cross section | 0.75 mm² |
Classifications
| Feature Name | Feature Value |
|---|---|
| Cross section (EF003929) | 0.14 mm² |
| Length (EF001438) | 233 mm |
| With locking device (for mechanical tools) (EF001817) | Yes |
| Construction/operation (EF001462) | Other |
