PHOENIX CONTACT QUICKON Installation System (QPD)CP QPD 4X2,5 1425950 PHOENIX CONTACT Coding profile

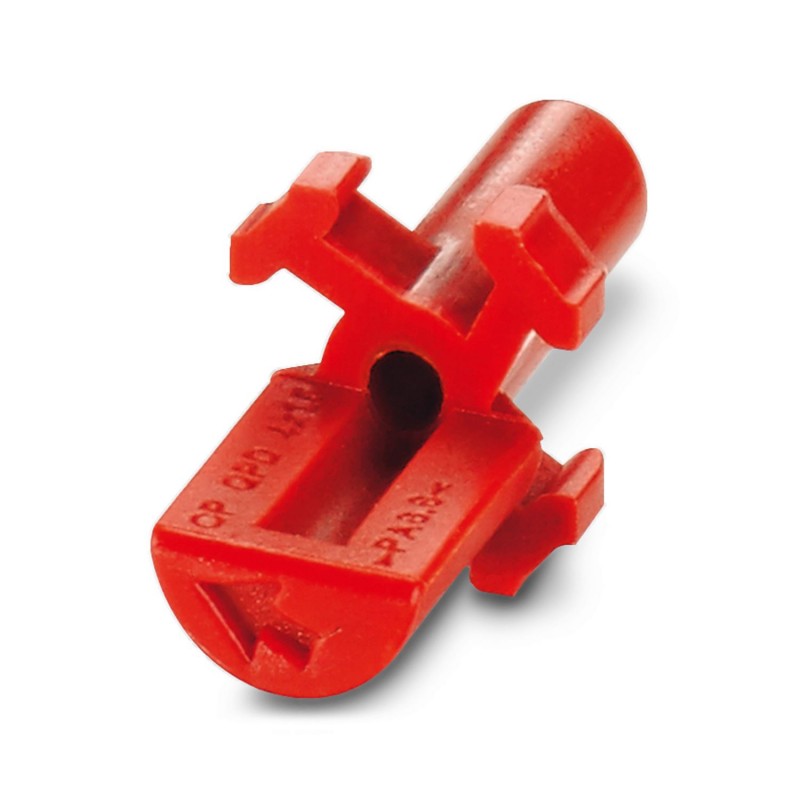

PHOENIX CONTACT CP QPD 4X2,5 1425950 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CP QPD 4X2,5 1425950 PHOENIX CONTACT Coding profile

Reference: CP QPD 4X2,5

Code: 1425950

Manufacturer: PHOENIX CONTACT

Description:

Coding profile
Red encoder profile, to be inserted into the QUICKON socket and plug-in connector, positionable in 90° steps.
Coding profile red, for pushing into the QUICKON dome and connector, can be positioned in 90° steps.

Categories:

  • Connectors > Coding element for industrial connectors
  • PHOENIX CONTACT > QUICKON Installation System (QPD)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 17,00 €

Unit Price: 1,70 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical data
Product properties
Product typeCoding element
Product familyQPD
Data management status
Article revision01
Material specifications
Colorred (RAL 3001)
MaterialPA
Flammability rating according to UL 94V0
Dimensions
Dimensional drawingmyltaqzyqa.jpg
Width7 mm
Height7 mm
Length17.5 mm

ETIM for 1425950 Connectors (EC002311)

Feature nameType of coding element (EF006982)
Feature valueProfile
Feature nameMaterial coding element (EF007540)
Feature valuePlastic
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV0
Feature nameColour (EF000007)
Feature valueRed

DATASHEET - PDF

Title
Size
Type
PDF CATALOG PHOENIX CONNECTORS EN
57 Mbytes
