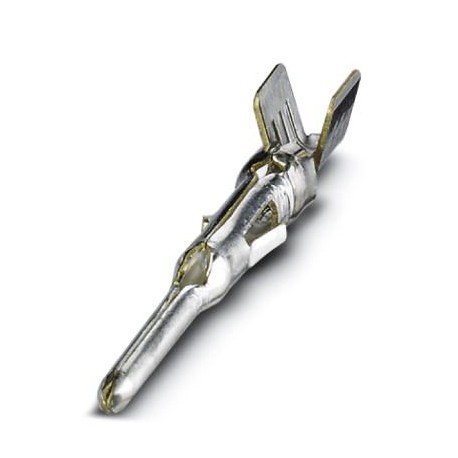

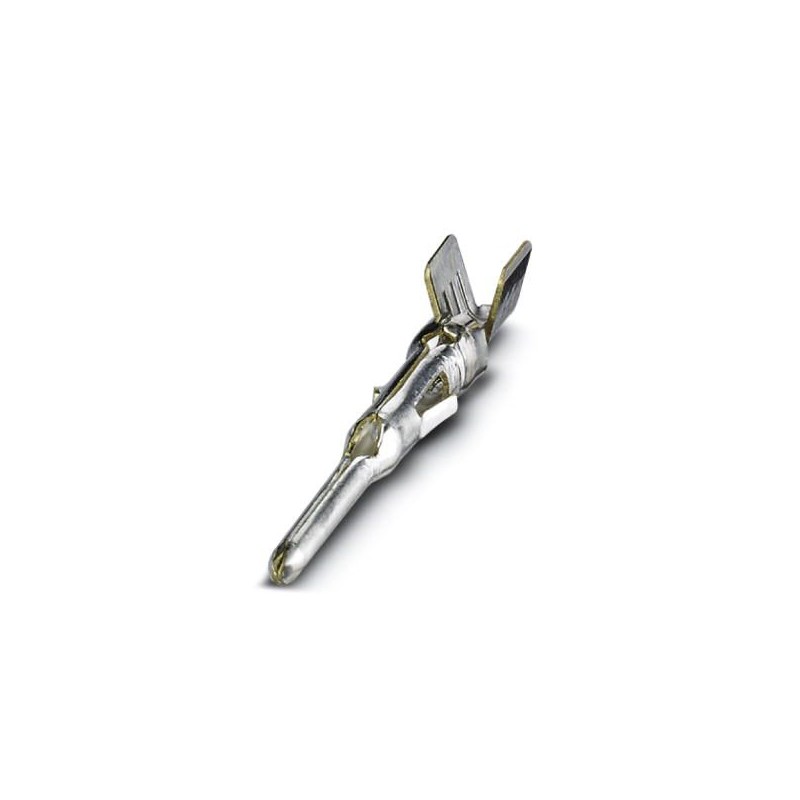

CK1,6-ER-1,00ST OIC AG 1004360 PHOENIX CONTACT Crimp contact
CK1,6-ER-1,00ST OIC AG
1004360
PHOENIX_CONTACT
100
Crimp contact
Crimp contact, contact diameter: 1.6 mm, stamped, Male, contact material: Cu alloy, nickel-plated, contact surface: silver, connection cross-section: 0.34 mm² ... 1 mm², AWG 22 ... 17
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1004360 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626472539 |
| Weight per Piece (excluding packing) | 0.340 g |
| Custom tariff number | 85369010 |
| Country of origin | TR (Turkey) |
Mechanical characteristics
| Conductor cross section | 0.34 mm² ... 1 mm² |
|---|---|
| Connection cross section AWG | 22 ... 17 |
| Stripping length of the individual wire | 4 mm |
| Contact diameter | 1.6 mm |
| Insertion/withdrawal cycles | ≥ 50 |
General
| Note | For use only in Phoenix Contact contact insert designs: HC-DD…-I-CT, HC-M-12-CT, HC-M-17-CT, HC-D7-I-CT, HC-D8-I-CT, HC-Q07-I-CT, HC-Q12-I-CT |
|---|---|
| Type | Individual male contact |
| Connection method | Crimp connection |
| Contact type | rolled |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 125 °C |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.34 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.34 mm² |
| Type of electric connection (EF003961) | Crimp connection |
| Strip length (EF006824) | 4 mm |
| Type of contact (EF012213) | Rolled |
| Diameter plug-in contact (EF007320) | 1.6 mm |
| Material contact (EF007544) | Other copper alloys |
| Material of contact surface (EF004020) | Silver |
| Min. number of insertion cycles (EF012212) | 50 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
