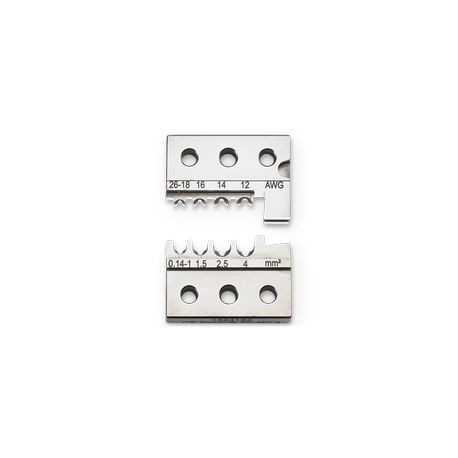

CF 500/DIE TC HC 4 1324132 PHOENIX CONTACT Die for CF 500 crimping machine, machined contacts CK 1,6-ED..., ..
CF 500/DIE TC HC 4
1324132
PHOENIX_CONTACT
Die for CF 500 crimping machine, machined contacts CK 1,6-ED..., CK 2,5-ED..., CK 4,0-ED..., 4 marked die stations
Insert
Tools (Press, cut and isolate) > Stripping and crimping machine
TOOL fox
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | For 0.14 mm² solid crimp contacts... 4.0 mm² of the series CK1.6 ED..., CK2.5 ED..., CK4.0 ED..., the detailed list of crimp contacts can be found in the list of accessories |
| Product Type | Womb |
| Pressing | Square setting |
| Crimp Stitch 1 | |
| Min. Section | 0.14 mm² |
| Max. Section | 1 mm² |
| AWG min. | 26 |
| AWG max. | 18 |
| Crimp stitch 2 | |
| Max. Section | 1.5 mm² |
| AWG max. | 16 |
| Crimp stitch 3 | |
| Max. Section | 2.5 mm² |
| AWG max. | 14 |
| Crimp Stitch 4 | |
| Max. Section | 4 mm² |
| AWG max. | 12 |
| Connecting Conductors | |
| Metric Section Range | 0.14 mm² ... 4 mm² |
| AWG Section Range | 26 ... 12 |
| Width | 9 mm |
| Height | 36 mm |
| Longitude | 32 mm |
| Material thickness min. | 6.05 mm |
| Max. material thickness | 9 mm |
| Colour | Nickel plated |
| Material | steel |
| Coating | Nickel plated |
| Feature Name | Feature Value |
|---|---|
| Adjustable conductor cross section (EF008548) | 6 mm² |
| Function (EF000030) | Other |
| Strip length (EF006824) | 3 mm |
