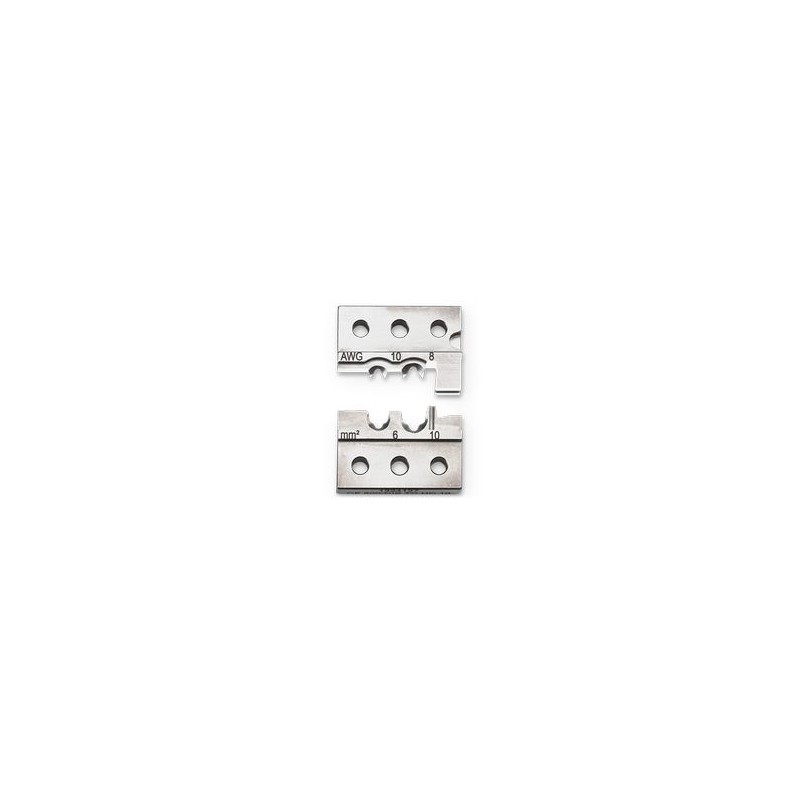

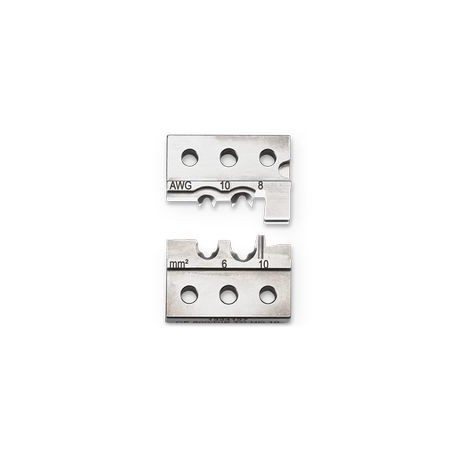

CF 500/DIE TC HC 10 1324137 PHOENIX CONTACT Die for CF 500 crimping machine, CK 4.0-ED machined contacts...,..
CF 500/DIE TC HC 10
1324137
PHOENIX_CONTACT
Die for CF 500 crimping machine, CK 4.0-ED machined contacts..., 2 marked die stations
Insert
Die for CF 500 automatic crimping device, CK 4.0-ED... turned contacts, 2 marked die stations
Tools (Press, cut and isolate) > Stripping and crimping machine
TOOL fox
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | For 6.0 mm² ... 10.0 mm² turned crimp contacts from the CK4.0 ED... series, the packing slip includes a detailed list of the crimp contacts |
| Product type | Die |
| Compression | Square crimp |
| Crimping position 1 | |
| Max. cross section | 6 mm² |
| AWG max | 10 |
| Crimping position 2 | |
| Max. cross section | 10 mm² |
| AWG max | 8 |
| Conductor connection | |
| Cross section range, metric | 6 mm² ... 10 mm² |
| Cross section range AWG | 10 ... 8 |
| Width | 9 mm |
| Height | 36 mm |
| Length | 32 mm |
| Min. material thickness | 6.05 mm |
| Max. material thickness | 9 mm |
| Color | black |
| Material | Steel |
| Coating | nickel-plated |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 47 Mbytes |
|
