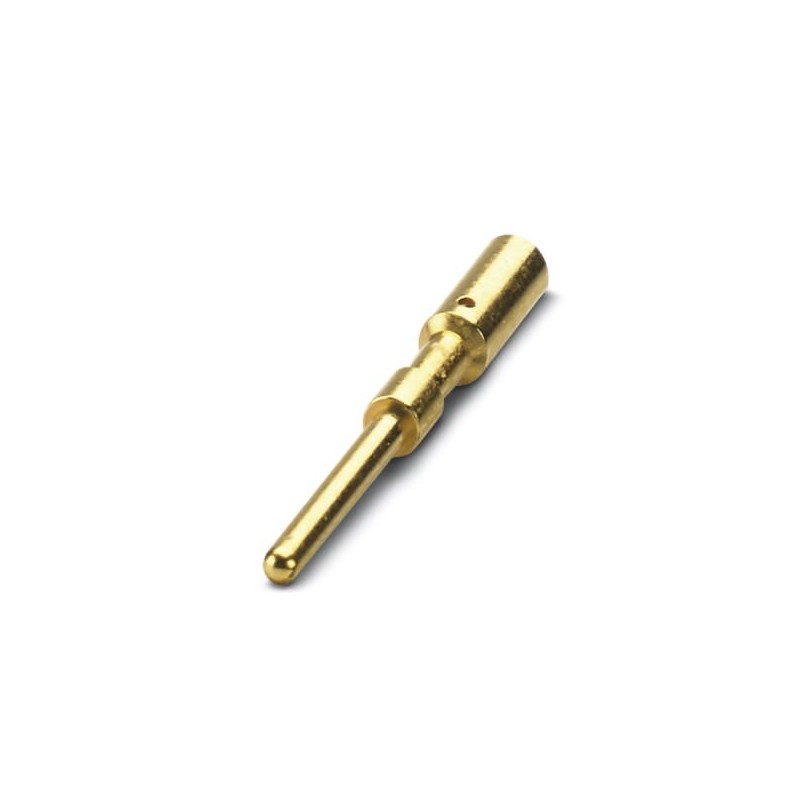

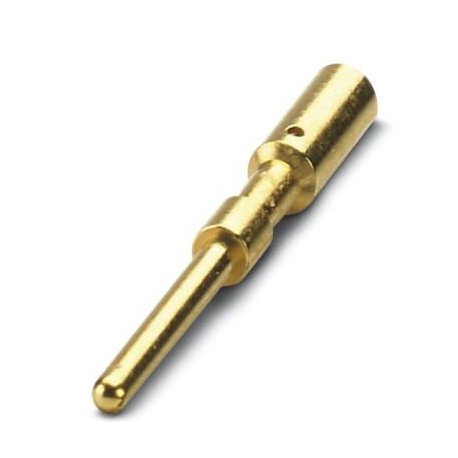

CC1,0-TS-1,00M AU 1423645 PHOENIX CONTACT Crimp contact, contact diameter: 1 mm, turned, Pin, contact ma..
CC1,0-TS-1,00M AU
1423645
PHOENIX_CONTACT
100
Crimp contact, contact diameter: 1 mm, turned, Pin, contact material: CuZn, contact surface: Ni/Au, connection cross section: 0.34 mm² ... 1 mm² AWG 22 ... 18
Crimp contact, contact diameter: 1 mm, machined, Male, contact material: CuZn, contact surface: Ni/Au, connection cross-section: 0.34 mm² ... 1 mm², AWG 22 ... 18
Connectors > Contact for industrial connectors
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1423645 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 27 (C-2-2019) |
| GTIN | 4055626363318 |
| Weight per Piece (excluding packing) | 0.200 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Conductor cross section | 0.34 mm² ... 1 mm² (flexible) |
|---|---|
| Connection cross section AWG | 22 ... 18 (flexible) |
| Stripping length of the individual wire | 4 mm +0,5 mm |
| Contact diameter | 1 mm |
| Insertion/withdrawal cycles | ≥ 100 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27261200 |
|---|---|
| eCl@ss 6.0 | 27261200 |
| eCl@ss 7.0 | 27440204 |
| eCl@ss 8.0 | 27440204 |
| eCl@ss 9.0 | 27440204 |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 85 °C |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.34 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.34 mm² |
| Type of electric connection (EF003961) | Crimp connection |
| Strip length (EF006824) | 4 mm |
| Diameter plug-in contact (EF007320) | 1 mm |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Nickel/gold |
| Min. number of insertion cycles (EF012212) | 100 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
