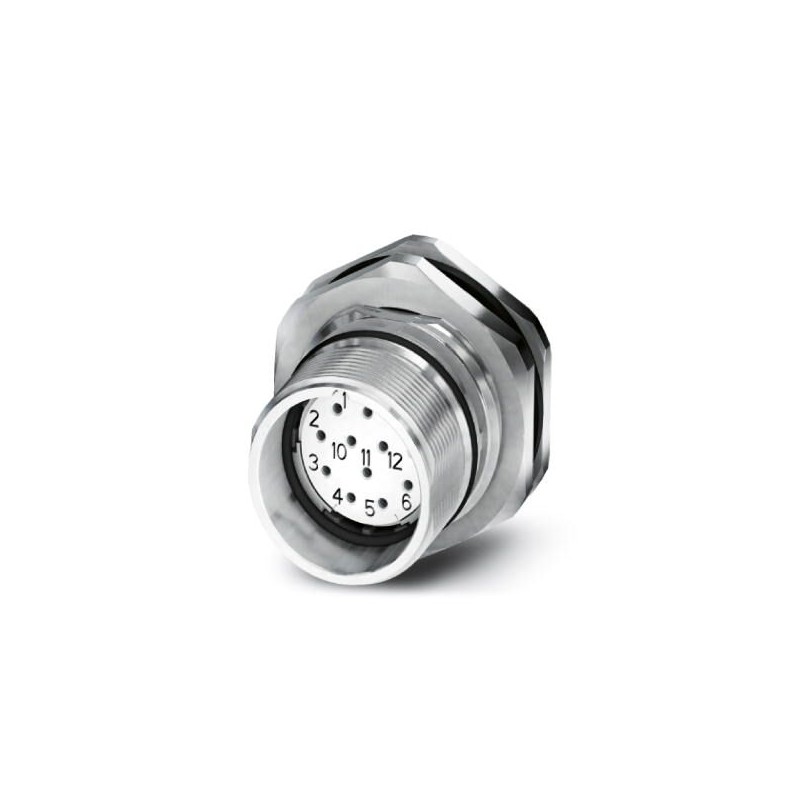

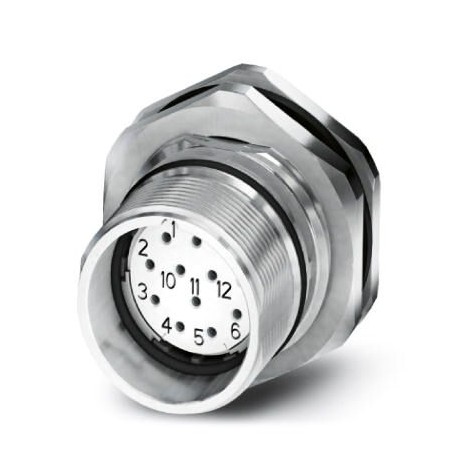

CA-19S1NP2HZ00 1628090 PHOENIX CONTACT Device connector, rear mounting
CA-19S1NP2HZ00
1628090
PHOENIX_CONTACT
48
Device connector, rear mounting
M23, Conect. plug. to be apar. poster wall, series: AC, straight, shielded: yes, for standard and SPEEDCON locking, No. of poles: 16+3, Rotation direction: Standard, contact connection type: Female, Welded connection, Axial joint, Central fixing, coding: N, Alternative product according to RoHS II without exception 6c (Pb <.; 0.1%) art.code: 1245542
Connectors > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Device connector for rear wall, straight, shielded: yes, for standard and SPEEDCON interlock, M23, No. of pos.: 16+3, type of contact: Socket, Solder-in connection, Axial seal, Central fixing
Key Commercial Data
| Orderkey | 1628090 |
|---|---|
| Packing unit | 12 pc |
| Minimum order quantity | 48 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626381909 |
| Weight per Piece (excluding packing) | 53.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Data of the insulating body
| Coding | N |
|---|---|
| Insulator material | PA 6.6 |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact connection method | Solder-in connection |
| Type of contacts | Socket |
| Application | Signal |
| Number of positions | 19 |
| Contact diameter of power contacts | 1.5 mm |
| Litz wire cross section of power contacts min. | 0.08 mm² |
| Litz wire cross section of power contacts max. | 1 mm² |
| Nominal current per power contact at 25°C | 10 A |
| Nominal voltage, power contact | 150 V |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Contact diameter of signal contacts | 1 mm |
| Litz wire cross section of signal contacts min. | 0.08 mm² |
| Litz wire cross section of signal contacts max. | 1 mm² |
| Nominal current per signal contact at 25°C | 8 A |
| Nominal voltage, signal contact | 150 V |
| Overvoltage category | II |
| Degree of pollution | 3 |
Housing data
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
|---|---|
| Type of locking | for standard and SPEEDCON interlock |
| Degree of protection (when plugged in) | IP67 |
| Thread type | M23 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
