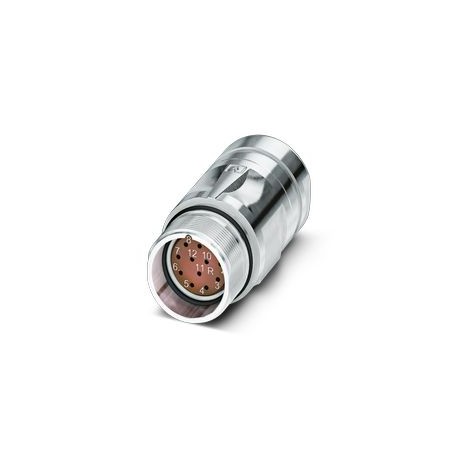

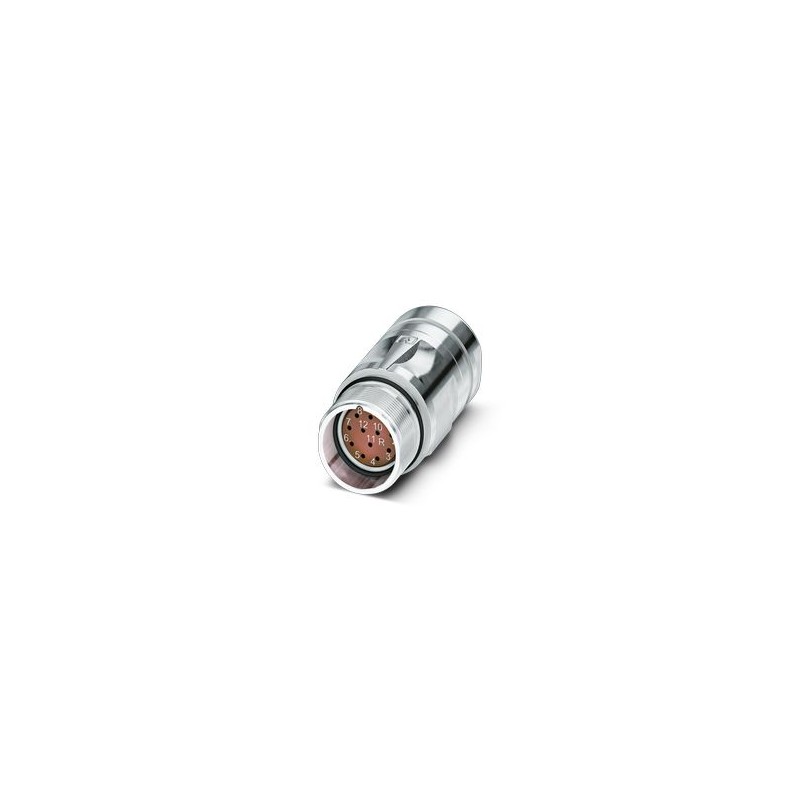

CA-17F1N8A9504X 1243934 PHOENIX CONTACT M23, Mating connector, series: AC, straight, shielded: yes, for stan..
CA-17F1N8A9504X
1243934
PHOENIX_CONTACT
M23, Mating connector, series: AC, straight, shielded: yes, for standard lock and SPEEDCON, No. of poles: 17, Direction of rotation: Standard, type of contact connection: Female, Crimp connection, cable diameter range: 10 mm ... 14.5 mm, coding: N, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1%)
Plug-in coupling connector
M23, Joint connector, series: CA, straight, shielded: yes, for standard and SPEEDCON locking, No. of poles: 17, Direction of rotation: standard, contact connection type: Female, Crimp connection, cable diameter: 10 mm 14.5 mm, coding: N, The article is lead-free according to RoHS II without exception 6c (Pb < 0.1 %)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General notes | Crimp contacts 17 x 1 mm to be ordered separately |
| Product Type | Circular connectors (cable side) |
| Connection 1 | |
| Head structure | female |
| Insulating body | |
| note | Ordering instructions: Crimp contacts Ø 1 mm to be ordered separately |
| Coding | N |
| Insulation body material | PA 6.6 |
| Link | Crimp Connection |
| Contact Switching Type | female |
| Application | Feedback signal |
| Signal | |
| No. of poles | 17 |
| Direction of rotation | standard |
| Insertion plan | 17 |
| Contact DiameterSignal contacts | 1 mm |
| Wire sectionSignal contactsMin. | 0.06 mm² |
| Wire sectionSignal contactsMax. | 1 mm² |
| Rated current for each signal contact | 8 A |
| Rated Voltage Signal Contact | 48 V AC |
| Sizing Impulse Voltage | 1.5 kV |
| Overvoltage Category | Iii |
| Degree of pollution | 3 |
| custody | |
| Housing Material | Rotating parts: copper-zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Clamping Type | for standard and SPEEDCON clamping |
| Screwing Pg | without |
| Degree of protection (engaged) | IP67 |
| Thread type | M23 |
| Seal | |
| Conductor Outer Diameter | 10 mm ... 14.5 mm |
| Gasket material | FPM |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Ambient temperature (EF002386) | -40 °C |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
Datasheet - PDF
