CA-06S1N8A8007SX
1243642
PHOENIX_CONTACT
1
Plug-in connector. for cables

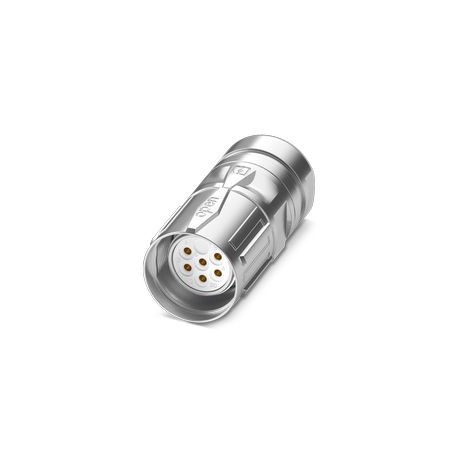

M23, Cable connector, series: CA, straight, shielded: yes, SPEEDCON, No. of pos.: 6, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 6 mm ... 10 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General | Order crimp contacts 6 x Ø 2 mm separately |
Product type | Circular connector (cable-side) |
Connection 1 | |
Head design | Socket |
Insulating body | |
Note | Order information: Order crimp contacts Ø 2 mm separately |
Coding | N |
Insulation body material | PA 6.6 |
Connection method | Crimp connection |
Contact switching type | Socket |
Application | Signal |
Number of positions | 6 |
Direction of rotation | Standard |
Connection profile | 6 |
Contact diameterSignal contacts | 2 mm |
Litz wire cross-sectionSignal contactsmin. | 1 mm² |
Litz wire cross-sectionSignal contactsmax. | 2.5 mm² |
Nominal current per signal contact | 20 A |
Rated voltage Signal contact | 48 V AC |
Rated surge voltage | 1.5 kV |
Overvoltage category | III |
Degree of pollution | 3 |
Housing | |
Housing material | CuZN, GD-Zn |
Type of locking | SPEEDCON |
Pg screw connection | none |
Degree of protection (plugged in) | IP67 |
Thread type | M23 |
Seal | |
External cable diameter | 6 mm ... 10 mm |
Seal material | NBR |
Ambient conditions | |
Ambient temperature (operation) | -40 °C ... 125 °C |
