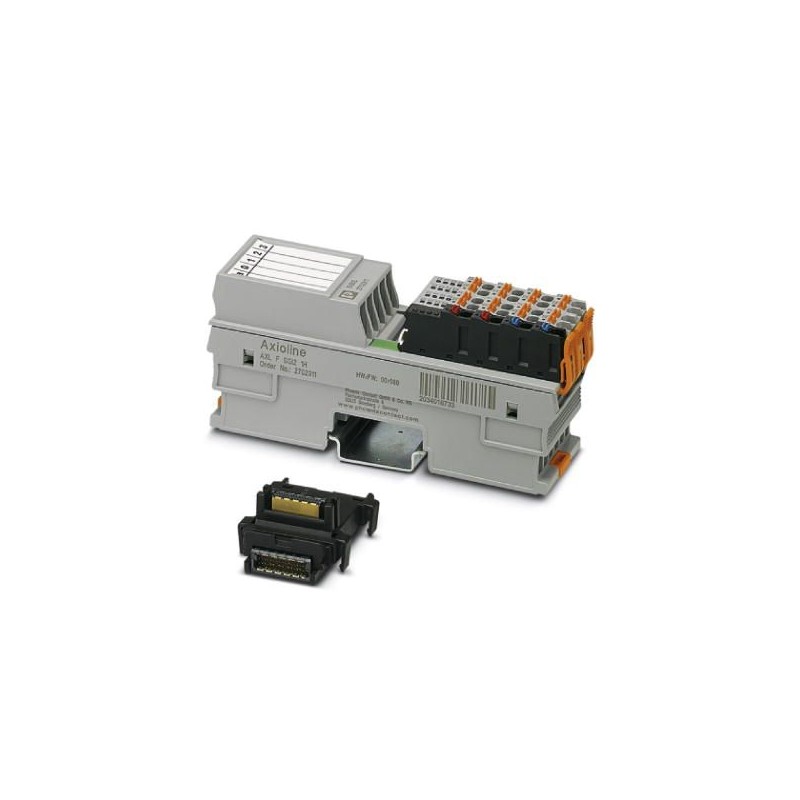

AXL F SGI2 1H 2702911 PHOENIX CONTACT I/O module
AXL F SGI2 1H
2702911
PHOENIX_CONTACT
I/O module
AxiolineF, Extensometer logging module, transmission rate on local bus: 100 MBit/s, protection rating: IP20, including bus socket module and AxiolineF connectors
PLC's > Fieldbus, decentr. periphery - analogue I/O module
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702911 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626459288 |
| Weight per Piece (excluding packing) | 187.700 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Dimensions
| Dimensional drawing | |
|---|---|
| Width | 35 mm |
| Height | 126.1 mm |
| Depth | 54 mm |
| Note on dimensions | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 187.7 g |
| Note on weight specifications | with connectors and bus base module |
| Operating mode | Process data mode with 6 words |
Interfaces
| Designation | Axioline F local bus |
|---|---|
| No. of channels | 2 |
| Connection method | Bus base module |
| Transmission speed | 100 Mbps |
Axioline potentials
| Designation | Axioline F local bus supply (UBus) |
|---|---|
| Supply voltage | 5 V DC (via bus base module) |
| Current consumption | typ. 65 mA |
| max. 75 mA | |
| Power consumption | typ. 325 mW |
| max. 375 mW | |
| Designation | Supply for analog modules (UA) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 25 mA (with typical load: 1 weighing cell with 350 Ω, only one channel loaded) |
| typ. 55 mA (with maximum load: 8 weighing cells with 350 Ω, only one channel loaded) | |
| typ. 110 mA (with maximum load: 8 weighing cells with 350 Ω per channel) | |
| Power consumption | typ. 2.6 W (with maximum load: 8 weighing cells with 350 Ω per channel) |
| typ. 1.5 W (entire device) | |
| max. 3 W (entire device) | |
| Type of protection | Surge protection of the supply voltage |
| Polarity reversal protection of the supply voltage |
Contacts
| Description | Floating N/O contact |
|---|---|
| Quantity | 2 (Ka1-Kb1, Ka2-Kb2) |
| Contact resistance | < 1 Ω (typical) |
| Typical response time | typ. 0.2 ms (opening) |
Analog inputs
| Description of the input | Input channels for strain gauge |
|---|---|
| Number of inputs | 2 |
| Connection technology | 6 or 4-wire, twisted pair shielded cable |
| Bridge difference Ud | Measuring range specified by selecting the characteristic |
| Bridge voltage U0 | 5 V |
| Characteristics | can be parameterized: 350 μV/V ... 6500 μV/V |
| Measured value representation | 32 bits |
Analog outputs
| Output description | Jumper supply |
|---|---|
| Number of outputs | 2 |
| Impedance | > 43 Ω (per channel) |
| Output voltage | typ. 5 V |
| Output current | max. 115 mA (per channel) |
Electrical isolation
| Test section | Logic 500 V AC 50 Hz 1 min. |
|---|---|
| 24 V supply (I/O) 500 V AC 50 Hz 1 min. | |
| Analog inputs 500 V AC 50 Hz 1 min. | |
| N/O contact Ka1- Kb1500 V AC 50 Hz 1 min. | |
| N/O contact Ka2- Kb2500 V AC 50 Hz 1 min. | |
| Functional earth ground 500 V AC 50 Hz 1 min. |
Standards and Regulations
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
|---|---|
| Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g | |
| Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g | |
| Protection class | III, IEC 61140, EN 61140, VDE 0140-1 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
