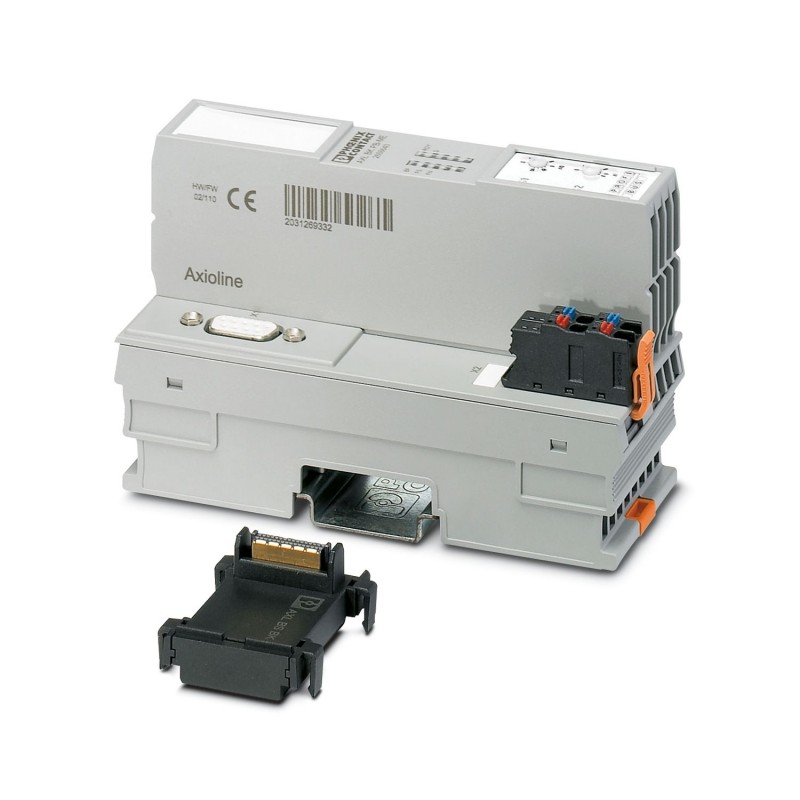

AXL F BK PB XC 2702463 PHOENIX CONTACT Bus coupler
AXL F BK PB XC
2702463
PHOENIX_CONTACT
Bus coupler
AxiolineF, Bus coupler, PROFIBUS DP, D-SUB-9 female connector, Extreme Condition variant, transmission speed on local bus:100 MBit/s, protection rating: IP20, including bus base module and AxiolineF connector
Axioline F, Bus coupler, PROFIBUS DP, 9-pin D-SUB socket, Variant for extreme conditions:, transmission rate in local bus: 100 Mbit/s, degree of protection: IP20, including bus base module and Axioline F connector
PLC's > Fieldbus, decentr. periphery - communication module
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702463 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626459271 |
| Weight per Piece (excluding packing) | 175.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Dimensions
| Dimensional drawing | |
|---|---|
| Width | 45 mm |
| Height | 125.9 mm |
| Depth | 74 mm |
| Note on dimensions | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C (Mounting position: wall mounting on horizontal DIN rail) |
|---|---|
| -25 °C ... 55 °C (Standard; mounting position: any) | |
| -40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
Connection data
| Designation | Axioline F connector |
|---|---|
| Connection method | Push-in connection |
| Note on the connection method | Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual. |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 175 g |
| Note on weight specifications | with connector and bus base module |
| Diagnostics messages | Diagnostic alarms |
Interfaces
| Designation | PROFIBUS DP |
|---|---|
| No. of channels | 1 |
| Connection method | D-SUB-9 female connector |
| Transmission speed | 9.6 kbps ... 12 Mbps |
| Number of positions | 9 |
| Designation | Axioline F local bus |
| Connection method | Bus base module |
| Transmission speed | 100 Mbps |
| Designation | Service |
| Connection method | Micro USB type B |
System limits of the bus coupler
| Designation | System limits of the bus coupler |
|---|---|
| Amount of process data | max. 488 Byte (per station) |
| max. 244 Byte (Input) | |
| max. 244 Byte (Output) | |
| Number of parameter data | max. 244 Byte |
| Number of configuration data | max. 244 Byte |
| Number of supported devices | max. 63 (per station) |
| Number of local bus devices that can be connected | max. 63 |
Axioline potentials
| Designation | Communications power ULfeed-in (the supply of the Axioline F local bus UBusis generated from UL) |
|---|---|
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | max. 567 mA (with 2 A at UBusfor the I/Os and UL= 24 V) |
| Power consumption | max. 13.7 W (with 2 A load at UBusfor the I/Os) |
| Designation | Axioline F local bus supply (UBus) |
| Supply voltage | 5 V DC (via bus base module) |
| Power supply unit | 2 A |
| Type of protection | Surge protection of the supply voltage |
| Polarity reversal protection of the supply voltage |
Standards and Regulations
| Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
|---|---|
| Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse | |
| Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g | |
| Protection class | III, IEC 61140, EN 61140, VDE 0140-1 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 19.2 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 125.893514 mm |
| Depth (EF000049) | 74.25 mm |
