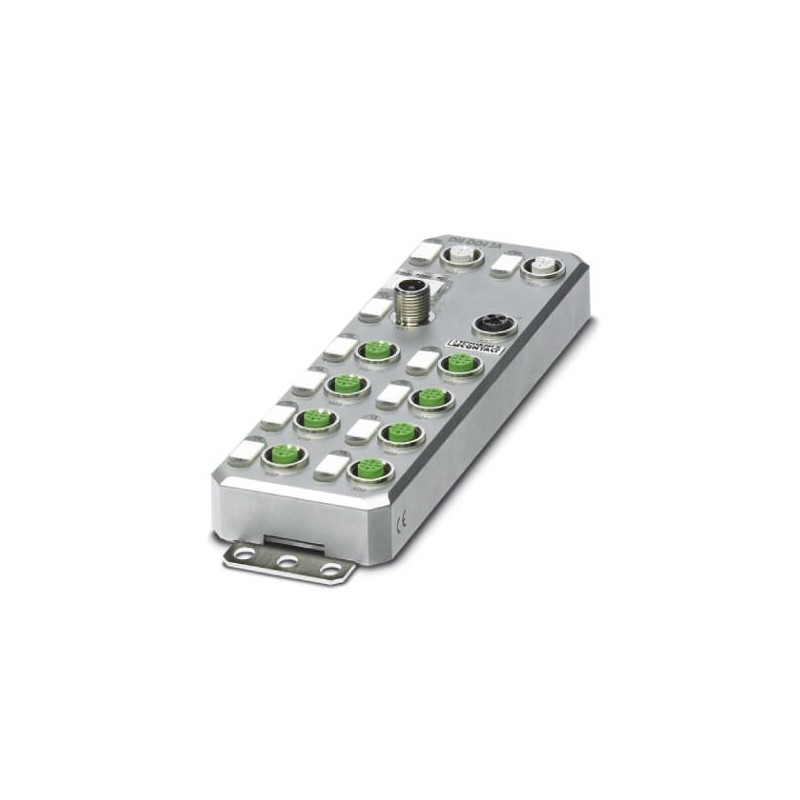

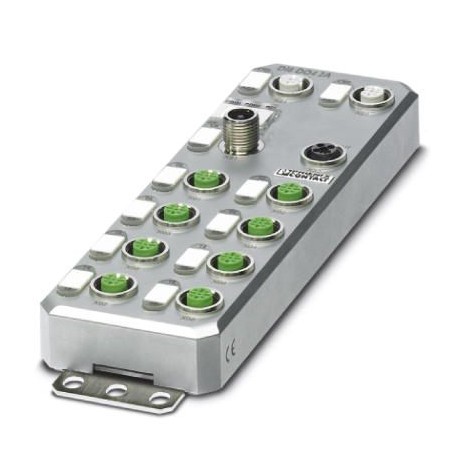

AXL E S3 DI8 DO4 2A M12 6M
2701551
PHOENIX_CONTACT
1
Distributed I/O device
I/O
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2701551 |
---|---|
Packing unit | 1 pc |
Catalog page | Page 201 (C-6-2017) |
GTIN | 4046356763981 |
Weight per Piece (excluding packing) | 708.100 g |
Custom tariff number | 85176200 |
Country of origin | DE (Germany) |
Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
---|
Dimensional drawing | |
---|---|
Width | 60 mm |
Height | 185 mm |
Depth | 38 mm |
Note on dimensions | The height is 194.5 mm including the mounting plate. With fixing clips pulled out, the height is 212 mm. The depth is 38 mm including the mounting plate (30.5 mm without the mounting plate). |
Drill hole spacing | 198.5 mm |
Ambient temperature (operation) | -25 °C ... 60 °C |
---|---|
Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % |
Permissible humidity (storage/transport) | 5 % ... 95 % |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Degree of protection | IP65/IP67 |
Housing material | Zinc die-cast |
---|---|
Mounting type | Wall mounting or DIN rail mounting; both with mounting plate. |
Net weight | 708.1 g |
Designation | Sercos |
---|---|
No. of channels | 2 |
Connection method | M12 fast connection technology |
Note on the connection method | D-coded |
Designation connection point | Copper cable |
Transmission speed | 100 Mbps (with auto negotiation) |
Number of positions | 4 |
Designation | Sercos |
---|---|
Equipment type | Sercos slave |
Device profile | FSP_IO |
System-specific protocols | Sercos protocols Sercos |
Sercos protocols S/IP | |
Protocols supported | HTTP |
TFTP | |
FTP | |
Specification | Sercos specification 1.1.2 |
Designation | Module electronics and sensors (US) |
---|---|
Connection method | M12 connector (T-coded) |
Number of positions | 4 |
Supply voltage | 24 V DC |
Nominal supply voltage range | 18 V DC ... 31.2 V DC (including all tolerances, including ripple) |
Current consumption | typ. 140 mA ±15 % (at 24 V DC) |
Designation | Actuators (UA) |
Connection method | M12 connector (T-coded) |
Number of positions | 4 |
Supply voltage | 24 V DC |
Nominal supply voltage range | 18 V DC ... 31.2 V DC (including all tolerances, including ripple) |
Current consumption | typ. 30 mA ±15 % (at 24 V DC) |
Input name | Digital inputs |
---|---|
Description of the input | EN 61131-2 types 1 and 3 |
Connection method | M12 connector, double occupancy |
Connection technology | 4-wire |
Number of inputs | 8 |
Type of protection | Overload protection, short-circuit protection of sensor supply |
Input filter time | < 1000 µs |
Input voltage range "0" signal | 0 V ... 5 V DC |
Input voltage range "1" signal | 11 V DC ... 30 V DC |
Nominal input current at UIN | typ. 3 mA |
Output name | Digital outputs |
---|---|
Connection method | M12 connector, (A-coded) |
Connection technology | 3-wire |
Number of outputs | 4 |
Type of protection | Overload protection, short-circuit protection of outputs |
Output voltage | 24 V |
Nominal output voltage | 24 V DC (from voltage UA) |
Maximum output current per channel | 2 A |
Nominal load, inductive | 48 VA (1.2 H, 48 Ω, with nominal voltage) |
Nominal load, ohmic | 48 W (48 Ω, with nominal voltage) |
Test section | 24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min. |
---|---|
24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min. | |
24 V supply (communications power and sensor supply, digital inputs)/FE 500 V AC 50 Hz 1 min. | |
Bus connection (Ethernet 1)/FE 500 V AC 50 Hz 1 min. | |
Bus connection (Ethernet 2)/FE 500 V AC 50 Hz 1 min. | |
Bus connection (Ethernet 1)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min. | |
24 V supply (actuator supply, digital outputs)/24 V supply (communications power and sensor supply, digital inputs) 500 V AC 50 Hz 1 min. | |
24 V supply (actuator supply, digital outputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min. | |
24 V supply (actuator supply, digital outputs)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min. | |
24 V supply (actuator supply, digital outputs)/FE 500 V AC 50 Hz 1 min. |
Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
---|---|
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse | |
Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g | |
Protection class | III, IEC 61140, EN 61140, VDE 0140-1 |
China RoHS | Environmentally Friendly Use Period = 25; |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
