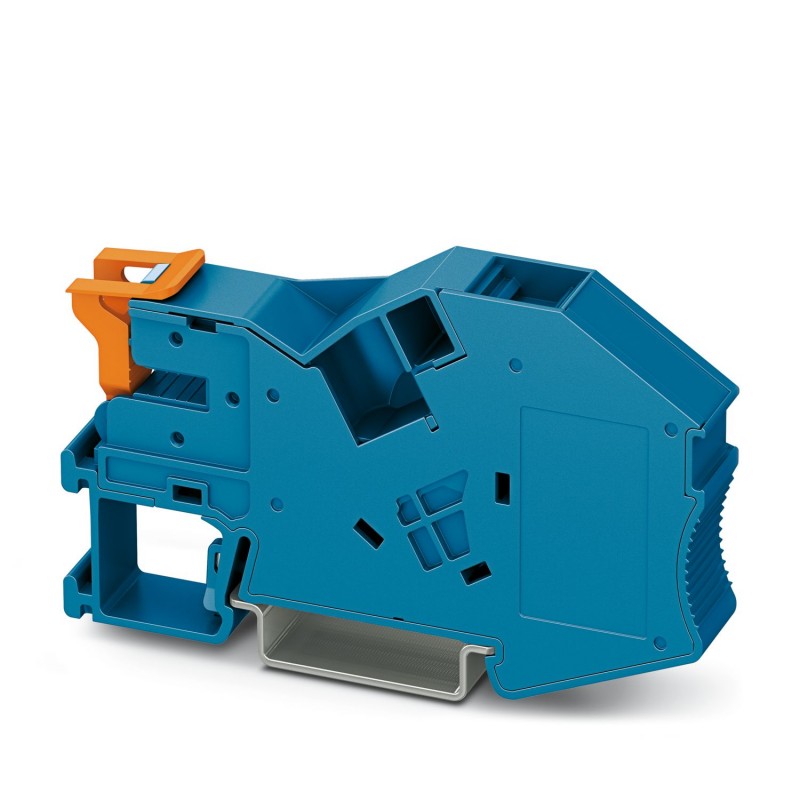

AB-PTI 16-NLS BU 1030138 PHOENIX CONTACT Support bracket
AB-PTI 16-NLS BU
1030138
PHOENIX_CONTACT
10
Support bracket
Easel, length: 81.9 mm, width: 12.2 mm, height: 46.8 mm, colour: blue
Support bracket, depth: 46.8 mm, width: 12.2 mm, height: 81.9 mm, color: blue
Energy distribution systems > Busbar support
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Note on application | with end bracket function |
| Product type | Support bracket |
| Data management status | |
| Article revision | 00 |
| Width | 12.2 mm |
| Height | 81.9 mm |
| Depth | 46.8 mm |
| Depth on NS 35/7,5 | 48.5 mm |
| Depth on NS 35/15 | 56 mm |
| Color | blue (RAL 5015) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Datasheet - PDF
