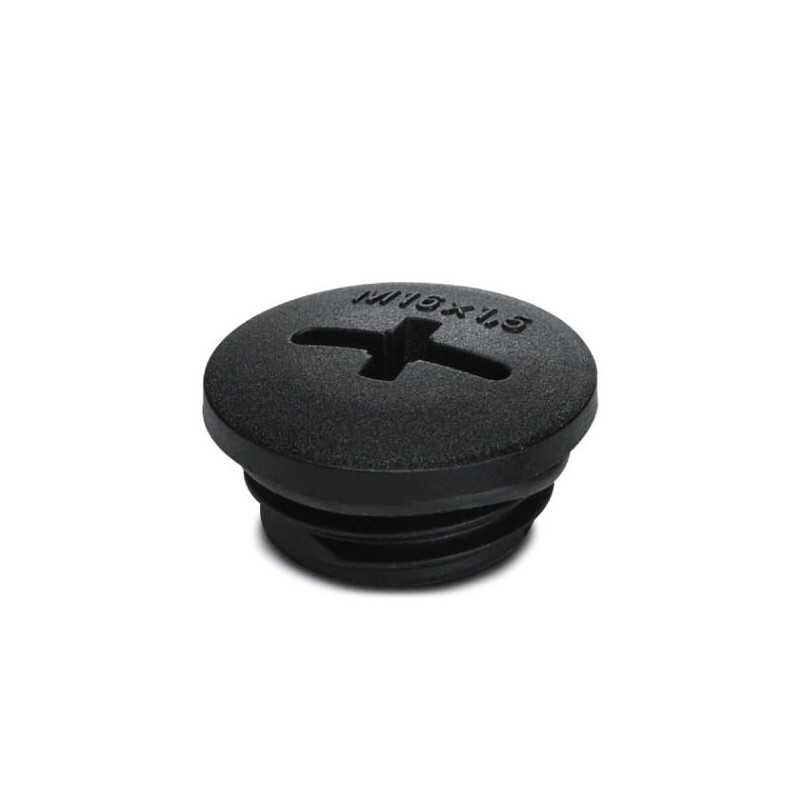

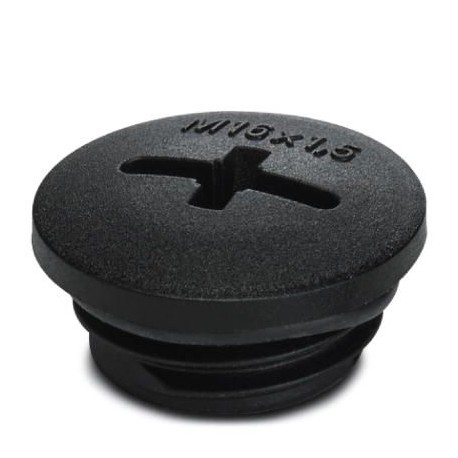

A-INSP-M16-68N-P-BK 1045817 PHOENIX CONTACT Screw plug
A-INSP-M16-68N-P-BK
1045817
PHOENIX_CONTACT
10
Screw plug
Locking screw, screwed connection material: PA, connection thread: M16 x 1.5, color: intense black RAL 9005, with O-ring
Cable and wire entry systems > Plug for cable screw gland
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1045817 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4055626638164 |
| Weight per Piece (excluding packing) | 4.500 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Dimensions
| Length | 9 mm |
|---|---|
| Outside diameter | 20 mm |
| Hexagon angular dimension | 20 mm |
| Length of the connecting thread | 6 mm |
General
| Material | PA |
|---|---|
| Cable gland material | PA |
| Sealing material | EPDM (O-ring) |
| Thread type connection side | M16 x 1.5 |
| Thread type on connection side | M16 |
| Torque | 1 Nm |
| Color | jet black RAL 9005 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
