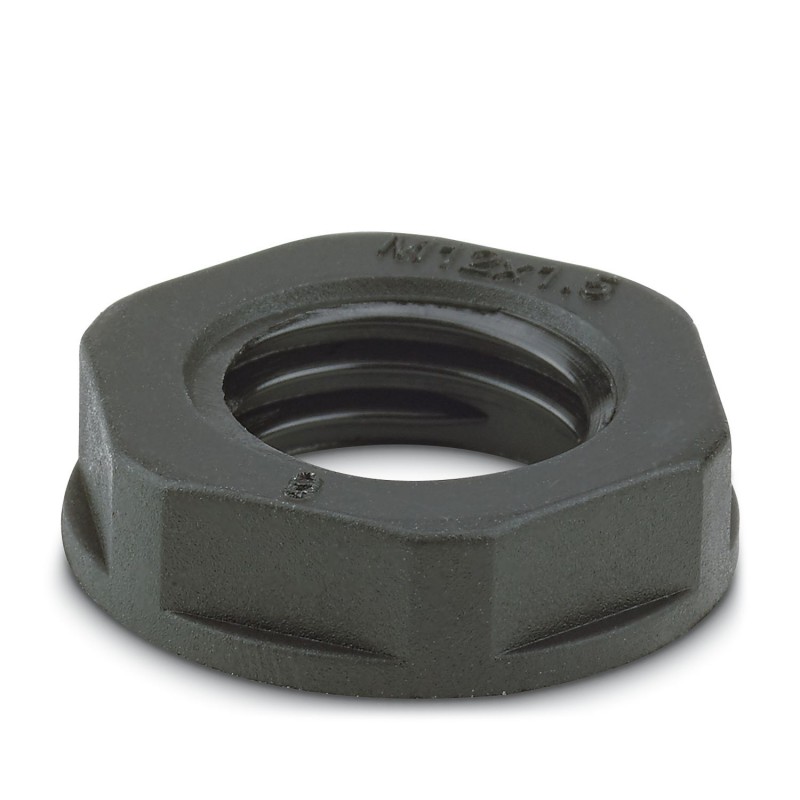

A-INL-PG7-P-BK 1424558 PHOENIX CONTACT Counter nut

Reference: A-INL-PG7-P-BK

Code: 1424558

Manufacturer: PHOENIX CONTACT

Description:

Counter nut
Lock nut, material: PA 6 GF 30, connection thread: Pg7, color: black
Lock nut, connection thread: Pg7, colour: deep black

Categories:

  • Cable and wire entry systems > Cable entry sleeve
  • PHOENIX CONTACT > Industrial plug-in connectors/interfaces

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 1,96 €

Unit Price: 0,196 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey1424558
Packing unit10 pc
Catalog pagePage 695 (C-2-2017)
GTIN4055626374628
Weight per Piece (excluding packing)1.600 g
Custom tariff number39269097
Country of originTR (Turkey)

Dimensions

Length5 mm
Connecting thread diameter12.5 mm
Wrench size, counter nut19 mm
Hexagon angular dimension21 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 100 °C

General

MaterialPA 6 GF 30
Flammability rating according to UL 94V2
Thread type connection sidePg7
Thread type on connection sidePg7
Colorjet black RAL 9005

Standards and Regulations

Halogen-freeyes
Flammability rating according to UL 94V2

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

ETIM for 1424558 Cable glands and cable entry products (EC000879)

Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMaterial quality (EF001257)
Feature valuePolyamide (PA)
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameColour (EF000007)
Feature valueBlack
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature nameOperating temperature (EF001742)
Feature value-40 °C
