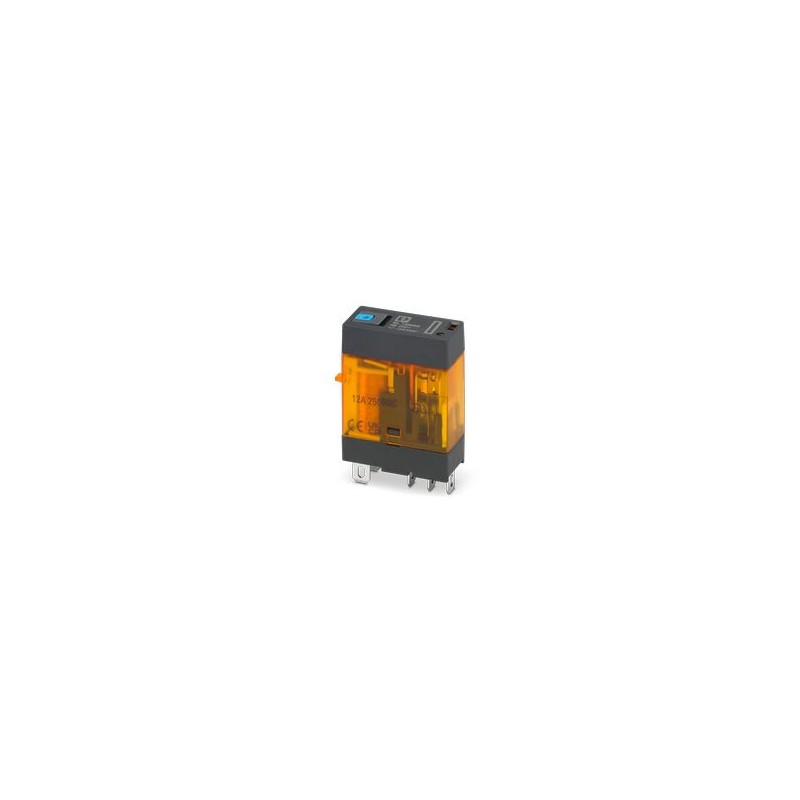

PHOENIX CONTACT  REL-FO/LD-24DC/1X21MS 1308302 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

REL-FO/LD-24DC/1X21MS 1308302 PHOENIX CONTACT Plug-in miniature relay with mechanical switching position ind..

Reference: REL-FO/LD-24DC/1X21MS

Code: 1308302

Manufacturer: PHOENIX CONTACT

Description:

Plug-in miniature relay with mechanical switching position indicator, FASTON connection, 1 switch, status indication: LED (yellow), Free circulation diode, Input voltage: 24 V DC
REL-FO/LD-24DC/1X21MS - Single Relay
Plug-in miniature relay with mechanical switching position indicator, FASTON connection, 1 changeover contact, status display: Yellow LED, Freewheeling diode, Input voltage: 24 V DC

Categories:

  • Relays > Switching relay
  • PHOENIX CONTACT > Industrial Relays

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 28,98 €

Unit Price: 2,898 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical data

Notes
GeneralDo not use to separate SELV/PELV circuits from other circuits, because safe isolation is not guaranteed. (applies to the optocoupler variants)
GeneralThe system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact.

Product properties
Product typeSingle relay
Product familyESSENTIAL edition
Operating mode100% operating factor
Mechanical service lifeapprox. 5x 107cycles
Relay typeElectromechanical relay
Insulation characteristics: Air clearances and creepage distances between the power circuits
InsulationBasic insulation
Overvoltage categoryII
Pollution degree3

Electrical properties
Maximum power dissipation for nominal condition0.64 W
Test voltage (Winding/contact)5 kVrms(50 Hz, 1 min., winding/contact)
Test voltage ()1 kVrms(50 Hz, 1 min., open contact)
Air clearances and creepage distances between the power circuits
Rated insulation voltage250 V AC
Rated surge voltage2.5 kV

Input data
Coil side
Nominal input voltage UN24 V DC
Input voltage range16.8 V DC ... 26.4 V DC
Drive and functionmonostable
Drive (polarity)polarized
Typical input current at UN24 mA
Input power dissipation for UN0.58 W
Typical response time9 ms
Typical release time10 ms
Protective circuitFreewheeling diode
Status displayYellow LED
Coil resistance1080 Ω ±10 %

Output data
Switching
Contact switching type1 changeover contact
Type of switch contactSingle contact
Contact materialAgSnO
Maximum switching voltage250 V AC/DC
Minimum switching voltage5 V (100 mA)
Limiting continuous current12 A
Maximum inrush current24 A (20 ms, N/O contacts)
Inrush current, minimum100 mA (5 V)
Interrupting rating (ohmic load) max.288 W (24 V DC)
360 W (30 V DC)
3000 VA (250 V AC)

Connection data
Cross section AWG(converted acc. to IEC)
Connection methodFASTON connection

Dimensions
Width13 mm
Height31.1 mm
Depth35 mm

Environmental and real-life conditions
Ambient conditions
Degree of protection (Relay)RT II (Relay)
Degree of protection (Installation location)IP54 (Installation location)
Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C
Altitude≤ 2000 m

Standards and regulations
Standards/regulationsIEC 61810-1
IEC 60664-1
Air clearances and creepage distances between the power circuits
Standards/regulationsIEC 60664-1

Mounting
Mounting positionany

ETIM for 1308302 Relays (EC001437)

Feature nameType of electric connection (EF003961)
Feature valuePlug-in connection
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameRated control supply voltage DC (EF003980)
Feature value16.8 V
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameDrive, polarization (EF003355)
Feature valuePolarized
Feature nameDrive, switching attitude (EF003356)
Feature valueMono stable
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value1
Feature nameType of switch contact (EF003358)
Feature valueSingle contact
Feature nameWith forced-guided contacts (EF003357)
Feature valueNo
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameMaterial of contact surface (EF004020)
Feature valueUntreated
Feature nameNominal current (EF000001)
Feature value0.024 A
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature nameWidth (EF000008)
Feature value13 mm
Feature nameHeight (EF000040)
Feature value31.1 mm
Feature nameDepth (EF000049)
Feature value35 mm
