PCE75352-6 PCE WALL BASE WITH LOCK SWITCH PCE 63A 4P+T 6H IP67

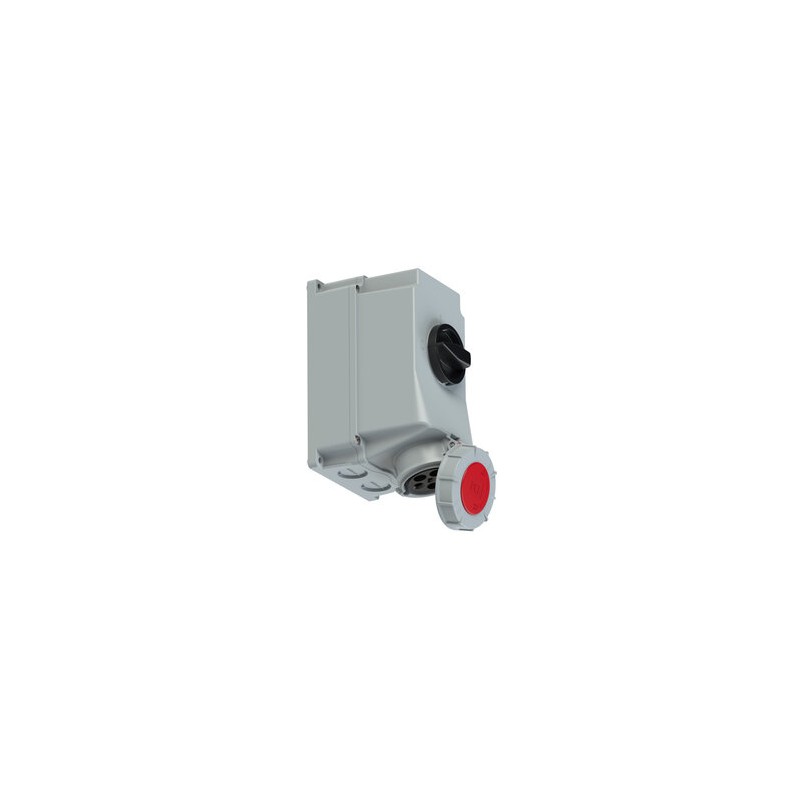

PCE 75352-6 75352-6 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

75352-6 PCE WALL BASE WITH LOCK SWITCH PCE 63A 4P+T 6H IP67

Reference: 75352-6

Manufacturer: PCE

Description:

WALL BASE WITH LOCK SWITCH PCE 63A 4P+T 6H IP67
CEE-switched interlocked socket 63A 5p 6h IP66/IP67

Categories:

  • PCE

Brand new product in its original packaging covered by the warranties and certifications provided by PCE

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 218,96 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CEE-switched interlocked socket 63A 5p 6h IP66/IP67
housing material: PC/ABS
rated current: 63A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML2-063; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67

Article no. 75352-6

PruefzeichenPruefzeichenPruefzeichenPruefzeichen
Name
CEE-switched interlocked socket 63A 5p 6h IP66/IP67
IEC-amperage A
63
Number of poles
5
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Clock hour position h
6
Identification colour
Red
Degree of protection (IP)
IP67
Switch
Mechanical locking
Material housing
Plastic
Model
Base unit and cover
Contact material
CuZn
Surface treatment contacts
Untreated

DATASHEET - PDF

Title
Size
Type
75352-6 75352-6 EN_75352-6.pdf
265 Kbytes
PDF CATALOGUE PCE EN
63 Mbytes
