PCE61242-3 PCE WALL BASE WITH LOCK SWITCH PCE 32A 3P+T 3H IP67

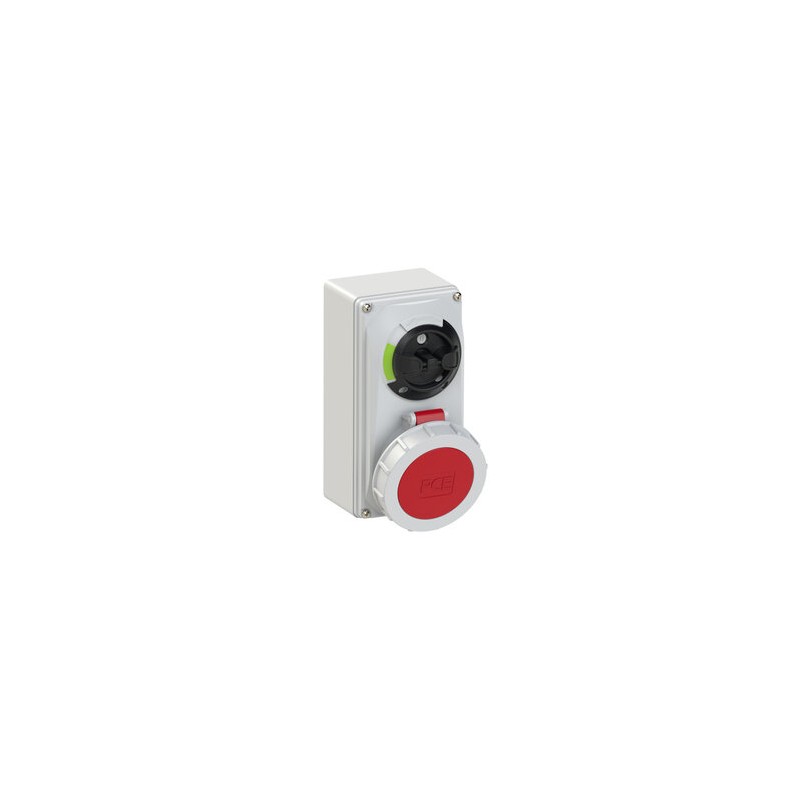

PCE 61242-3 61242-3 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

61242-3 PCE WALL BASE WITH LOCK SWITCH PCE 32A 3P+T 3H IP67

Reference: 61242-3

Manufacturer: PCE

Description:

WALL BASE WITH LOCK SWITCH PCE 32A 3P+T 3H IP67
CEE-switched interlocked socket compact 32A 4p 3h IP66/IP67

Categories:

  • PCE

Brand new product in its original packaging covered by the warranties and certifications provided by PCE

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 60,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CEE-switched interlocked socket compact 32A 4p 3h IP66/IP67
housing material: PA6 + PC/ABS
rated current: 32A
number of poles: 4 (3P+PE)
clock-position: 3h
rated voltage/frequency: 380/440V~ / 50/60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
IP protection class: IP66/IP67

Article no. 61242-3

PruefzeichenPruefzeichenPruefzeichenPruefzeichen
Name
CEE-switched interlocked socket compact 32A 4p 3h IP66/IP67
IEC-amperage A
32
Number of poles
4
Voltage according to EN 60309-2
400-440 V (50+60 Hz) red
Clock hour position h
3
Identification colour
Red
Degree of protection (IP)
IP67
Switch
Mechanical locking
Material housing
Plastic
Model
Base unit and cover
Contact material
CuZn
Surface treatment contacts
Nickel-plated

DATASHEET - PDF

Title
Size
Type
61242-3 61242-3 EN_61242-3.pdf
268 Kbytes
PDF CATALOGUE PCE EN
63 Mbytes
