PCE6114-7 PCE WALL BASE WITH LOCK SWITCH PCE 16A 3P+T 7H IP44

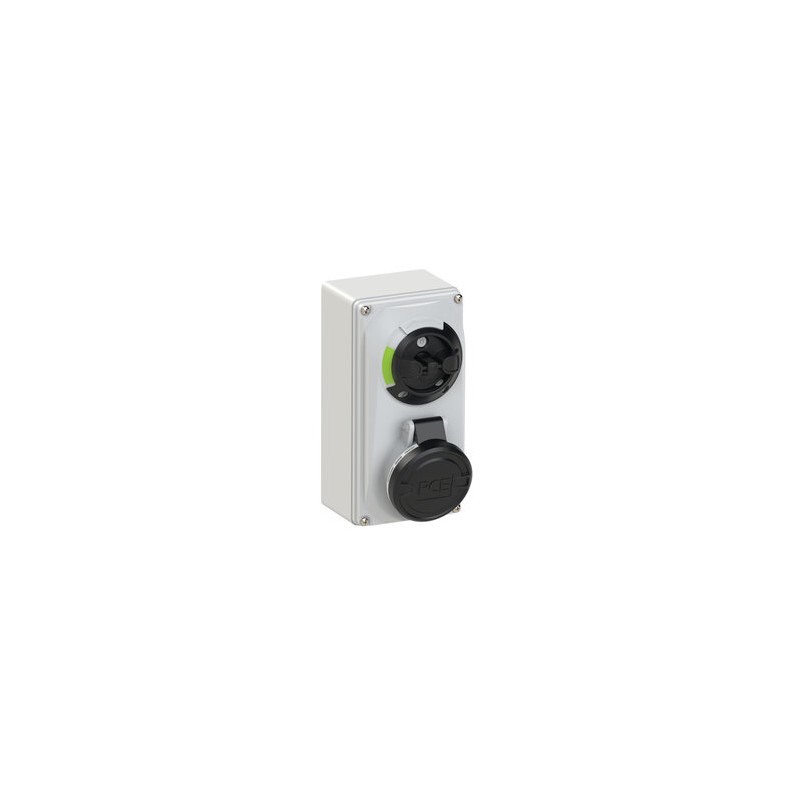

PCE 6114-7 6114-7 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

6114-7 PCE WALL BASE WITH LOCK SWITCH PCE 16A 3P+T 7H IP44

Reference: 6114-7

Manufacturer: PCE

Description:

WALL BASE WITH LOCK SWITCH PCE 16A 3P+T 7H IP44
CEE-switched interlocked socket compact 16A 4p 7h IP44/IP54

Categories:

  • PCE

Brand new product in its original packaging covered by the warranties and certifications provided by PCE

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 41,31 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CEE-switched interlocked socket compact 16A 4p 7h IP44/IP54
housing material: PA6 + PC/ABS
rated current: 16A
number of poles: 4 (3P+PE)
clock-position: 7h
rated voltage/frequency: 480-500V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
IP protection class: IP44/IP54

Article no. 6114-7

PruefzeichenPruefzeichenPruefzeichenPruefzeichen
Name
CEE-switched interlocked socket compact 16A 4p 7h IP44/IP54
IEC-amperage A
16
Number of poles
4
Voltage according to EN 60309-2
500 V (50+60 Hz) black
Clock hour position h
7
Identification colour
Black
Degree of protection (IP)
IP54
Switch
Mechanical locking
Material housing
Plastic
Model
Base unit and cover
Contact material
CuZn
Surface treatment contacts
Nickel-plated

DATASHEET - PDF

Title
Size
Type
6114-7 6114-7 EN_6114-7.pdf
268 Kbytes
PDF CATALOGUE PCE EN
63 Mbytes
