PANASONICSecurity limit switches - PANASONICSG-E1-02 PANASONIC Emergency stop switch Pushlock, Turn reset, 2NC

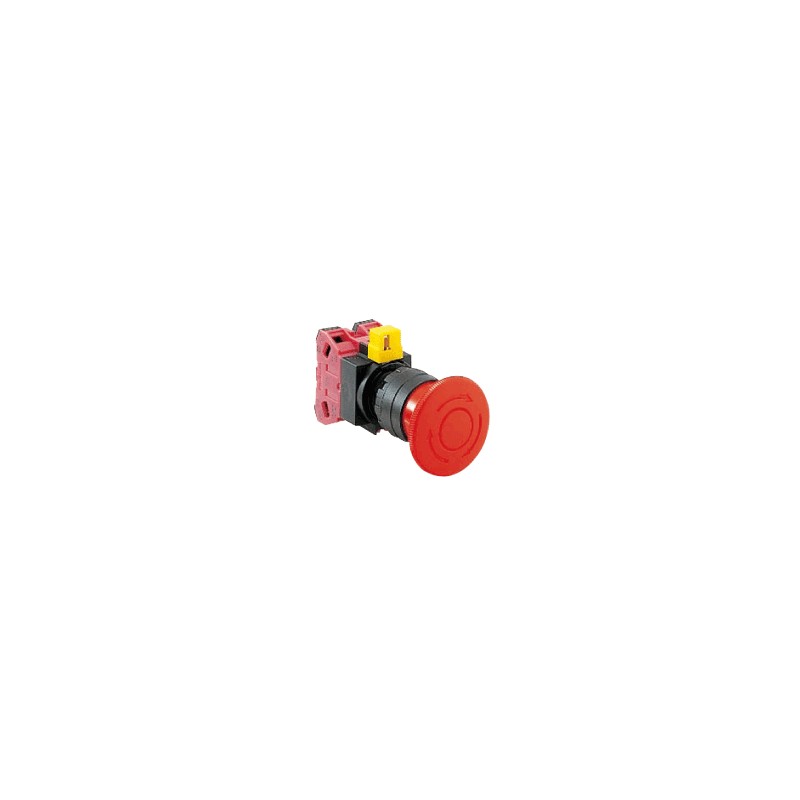

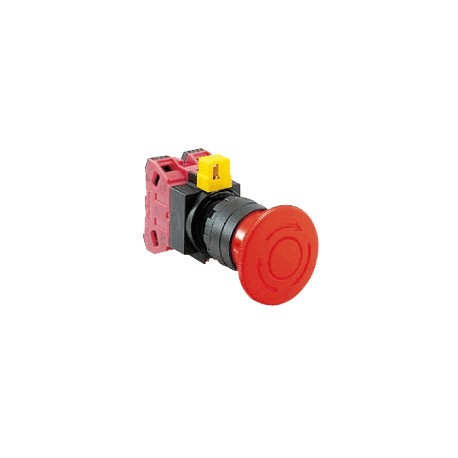

PANASONIC SG-E1-02 SG-E1-02 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SG-E1-02 PANASONIC Emergency stop switch Pushlock, Turn reset, 2NC

Reference: SG-E1-02

Manufacturer: PANASONIC

Description:

Emergency stop switch Pushlock, Turn reset, 2NC

Categories:

  • PANASONIC > Security limit switches - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Product Number SG-E1-02
Part Number SG-E1-02
Product Emergency stop switch
Details Emergency stop switch
Product name Emergency stop switch [Pushbutton type] SG-E1

Item Specifications
Product Number SG-E1-02
Part Number SG-E1-02
Contact arrangement 2NC
Button color Red
Applicable standards JIS C 8201-5-1, IEC 60947-5-1, EN 60947-5-1,
UL 508 (UL listed Certification), CSA 22.2
No.14 (c-UL listed Certification)
Operating condition : Ambient temperature -25 to +60 ℃-13 to +140 ℉(No dew condensation or icing allowed)
Storage : -40 to +80 ℃-40 to +176 ℉
Operating condition : Ambient humidity 45 to 85 % RH
Operating condition : Pollution degree 3
Operating condition : Altitude 2,000 m6,561.68 ftmax.
Impulse withstand voltage (Uimp) 4kV
Rated insulation voltage (Ui) 600V
Thermal current (Ith) 10A
Rated operational voltage (Ue) / Rated operational current (Ie)
Ue
24V 48V 50V 110V 220V 440V
Ie AC Resistive load (AC-12) 10A - 10A 10A 6A 2A
Inductive load (AC-15)
(A600)		 10A - 7A 5A 3A 1A
DC Resistive load (DC-12) 8A 4A - 2.2A 1.1A -
Inductive load (DC-13)
(P600)		 4A 2A - 1.1A 0.6A -
Contact resistance 50m Ω max. (initial value)
Insulation resistance 100 MΩ min. (500 V DC megger)
Electric shock protection class Class II (IEC 61140)
Excess voltage category II (IEC 60664-1)
Reset action Turn reset
Protection Front of the panel : IP65 (IEC 60529)
Shock resistance Malfunction : 100m/s2, Destruction : 1,000m/s2
Vibration resistance Malfunction : 5 to 55 Hz、half amplitude 0.5mm0.020 in
Destruction : 30 Hz, half amplitude 1.5mm0.059 in
B10D 100,000
(ISO 13849-1 Annex C Table C.1)
Mechanical durability 500,000 operations min.
Electrical durability 500,000 operations min. (900 operations/hour)
Material Actuator : PA6, Contact block : PA66
Connecting method Terminal screw (M3.5 philips & flathead )
Applicable wire size Max. 2 mm2(Single core ø1.6ø0.063max.)
2 wires max.
Tightening torque of the terminal screws 1.0 to 1.3 N・m
Tightening torque of the locking ring 2.0 N・m
Weight Approx. 60 g
Accessories Lever lock : 1 pc
