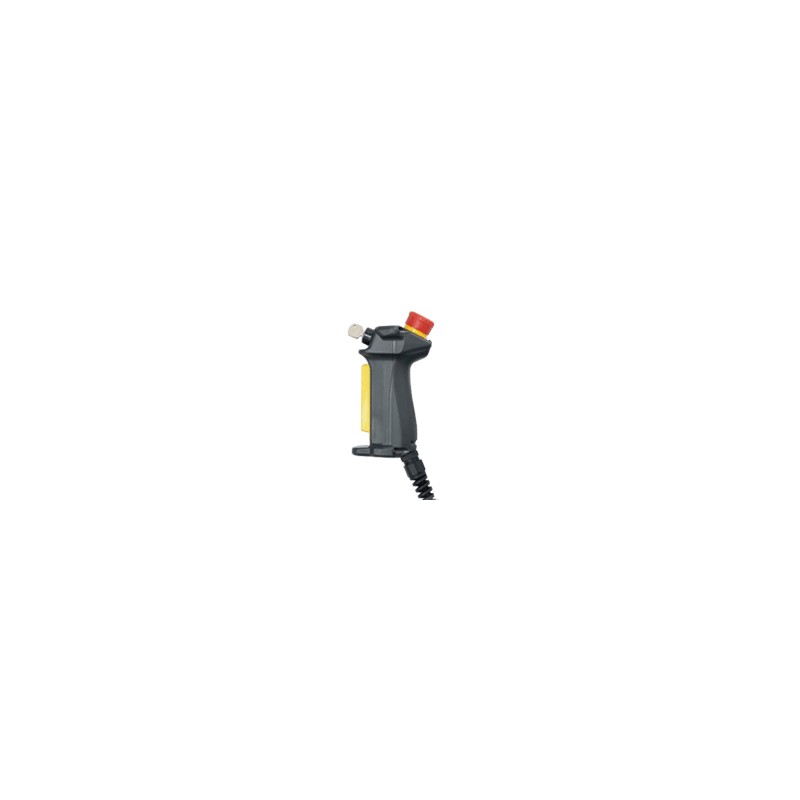

USGC121 SG-C1-21 PANASONIC Enable Grip Switch Without additional control units
USGC121
SG-C1-21
PANASONIC
Enable Grip Switch Without additional control units
Validation knob without additional control units
SG-C1-21_Enable grip switch_Enable grip switch SG-C1
Security limit switches - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | SG-C1-21 |
| Part Number | SG-C1-21 |
| Product | Enable grip switch |
| Product name | Enable grip switch SG-C1 |
| Item | Specifications | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Number | SG-C1-21 | ||||||||||||||||||||||||
| Part Number | SG-C1-21 | ||||||||||||||||||||||||
| Contact configuration : 3 position enabling switch | 2 contacts | ||||||||||||||||||||||||
| Contact configuration : Push monitor switch | With (1NC) | ||||||||||||||||||||||||
| Contact configuration : Additional control units : Emergency stop switch | Without | ||||||||||||||||||||||||
| Contact configuration : Additional control units : Control unit (A) | Without | ||||||||||||||||||||||||
| Contact configuration : Additional control units : Control unit (B) | Without | ||||||||||||||||||||||||
| Contact configuration : Additional control units : Indicator (green) (C) | Without | ||||||||||||||||||||||||
| Rubber boot material / Color | Silicone rubber / (Yellow) (Note): Silicone rubber: Can be used in general factories. Remains flexible in cold temperatures. Suitable in applications with a wide operating temperature range. | ||||||||||||||||||||||||
| Wiring style | Solder terminal | ||||||||||||||||||||||||
| Applicable standards | IEC 60947-5-1, EN 60947-5-1, JIS C 8201-5-1, GS-ET-22, UL 508, CSA C22.2 No.14 | ||||||||||||||||||||||||
| Applicable standards : Standards for use | ISO 12100 / EN ISO 12100, IEC 60204-1 / EN 60204-1, ISO 11161 / EN ISO11161, ISO 10218-1 / EN ISO 10218-1, ANSI/RIA/ISO 10218-1, ANSI/RIA R15.06, ANSI B11.19, ISO 13849-1: 2015 / EN ISO 13849-1: 2015 | ||||||||||||||||||||||||
| Applicable regulations | CE Marking [Machinery Directive (2006/42/EC), RoSH Directive], UKCA Marking [Supply of Machinery (Safety) Regulations (2008 No.1597), RoSH Regulations] | ||||||||||||||||||||||||
| Operating condition : Ambient temperature | -25 to +60 ℃ -13 to +140 ℉ (No dew condensation or icing allowed) Storage : -40 to +80 ℃ -40 to +176 ℉ | ||||||||||||||||||||||||
| Operating condition : Ambient humidity | 45 to 85 % RH | ||||||||||||||||||||||||
| Operating condition : Pollution degree | 3 (Inside 2) | ||||||||||||||||||||||||
| Operating condition : Altitude | 2,000 m 6,561.68 ft max. | ||||||||||||||||||||||||
| Impulse withstand voltage (Uimp) | 2.5 kV (Momentary pushbutton switch and key selector switch : 1.5 kV) | ||||||||||||||||||||||||
| Rated insulation voltage (Ui) | 250 V (Momentary pushbutton switch and key selector switch : 125 V) / Models with indicator : 30 V | ||||||||||||||||||||||||
| Thermal current (Ith) | 3 A (Emergency stop switch : 5 A) | ||||||||||||||||||||||||
| Rated operational voltage (Ue) / Rated operational current (Ie) |
| AC | Resistive load (AC-12) | - | 1A | 0.5A | |||||||||||||||||||
| Inductive load (ACー15) | - | 0.7A | 0.5A | ||||||||||||||||||||||
| DC | Resistive load (DC-12) | 1A | 0.2A | - | |||||||||||||||||||||
| Inductive load (DC-13) | 0.7A | 0.1A | - | ||||||||||||||||||||||
| Push monitor switch (Terminal No. 31-32) | AC | Resistive load (AC-12) | - | 2.5A | 1.5A | ||||||||||||||||||||
| Inductive load (ACー15) | - | 1.5A | 0.75A | ||||||||||||||||||||||
| DC | Resistive load (DC-12) | 2.5A | 1.1A | 0.55A | |||||||||||||||||||||
| Inductive load (DC-13) | 2.3A | 0.55A | 0.27A | ||||||||||||||||||||||
| Emergency stop switch (Terminal No. 1-2, 1-2) | AC | Resistive load (AC-12) | - | 5A | 3A | ||||||||||||||||||||
| Inductive load (ACー15) | - | 3A | 1.5A | ||||||||||||||||||||||
| DC | Resistive load (DC-12) | 2A | 0.4A | 0.2A | |||||||||||||||||||||
| Inductive load (DC-13) | 1A | 0.22A | 0.1A | ||||||||||||||||||||||
| Momentary pushbutton switch / Key selector switch (Terminal No.C1-NO1, NC1 C2-NO2, NC2 ) | AC | Resistive load (AC-12) | - | 0.5A | - | ||||||||||||||||||||
| Inductive load (ACー15) | - | 0.3A | - | ||||||||||||||||||||||
| DC | Resistive load (DC-12) | 1A | 0.2A | - | |||||||||||||||||||||
| Inductive load (DC-13) | 0.7A | 0.1A | - | ||||||||||||||||||||||
