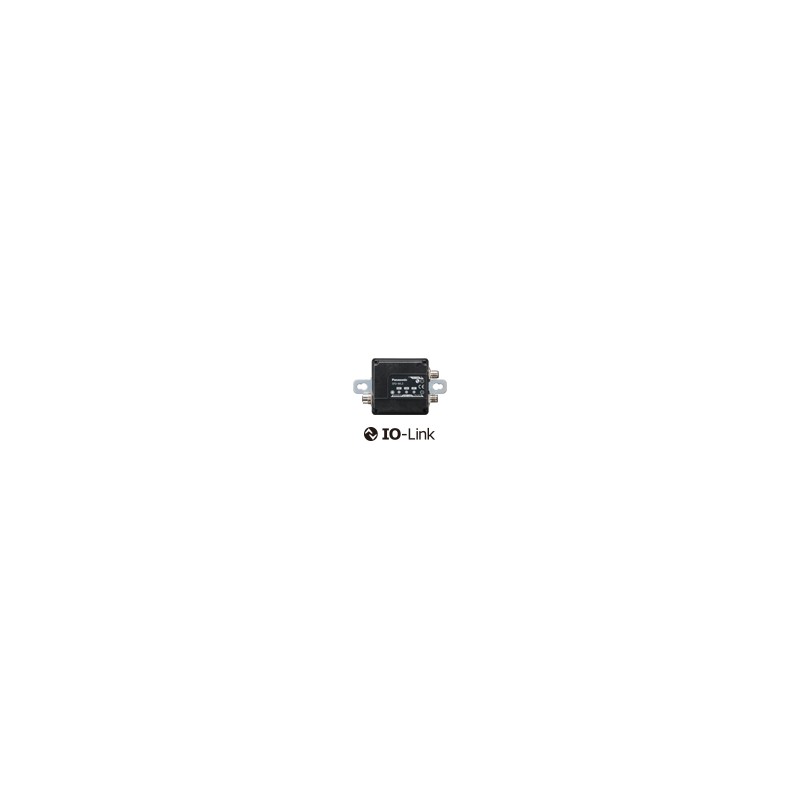

USFDWL3 SFD-WL3 PANASONIC IO-Link communication unit for SF4D, 8-wire M12 connector
USFDWL3
SFD-WL3
PANASONIC
IO-Link communication unit for SF4D, 8-wire M12 connector
SFD-WL3_IO-Link communication unit for safety light curtain SF4D series_IO-Link Communication Unit
Safety - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | SFD-WL3 |
| Part Number | SFD-WL3 |
| Product | IO-Link communication unit for safety light curtain SF4D series |
| Product name | IO-Link Communication Unit |
| Item | Specifications |
|---|---|
| Product Number | SFD-WL3 |
| Part Number | SFD-WL3 |
| Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Communication method : Safety light curtain communication side | RS-485 bidirectional communication (dedicated protocol) |
| Communication method : IO-Link communication side | IO-Link specifications: Ver. 1.1 Baud rate: COM3 (230.4 kbps) Data length: 18 bytes, process data (PD) Minimum cycle time: 1.5 ms |
| Supply voltage : Safety light curtain communication side | 24V DC +20-30 % Ripple P-P 10 % or less |
| Supply voltage : IO-Link communication side | 24V DC +20-25 % Ripple P-P 10 % or less |
| Current consumption : Safety light curtain communication side | 15 mA or less |
| Current consumption : IO-Link communication side | 30 mA or less |
| Functions | • IO-Link communication function • Safety light curtain setting data copy function (Note) Note : • The internal memory (nonvolatile) of this product has a service life. Settings cannot be configured more than 100,000 times. • This product cannot be used to directly enter settings from the IO-Link master unit to a safety light curtain using IO-Link communication. • The safety light curtain setting data copy function is designed only for use in maintenance / replace of safety light curtains.Use the copy function only for loading the setting data of the previous safety light curtain to a new unit. Loading the data to a device other than a newly installed safety light curtain may result in improper device operation. • This function cannot be used unless the product is connected with the IO-Link master unit and IO-Link communication is used. |
| Number of connectable units : This product | 1 unit |
| Number of connectable units : Safety light curtains in series connection | Up to 5 units (total number of beam channels 256 or less) |
| Pollution degree | 3 |
| Excess voltage category | I |
| Operating altitude | 2,000 m 6561.68 ft or less Note : Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m. |
| Degree of protection | IP64 |
| Ambient temperature | -10 to +55℃ 14 to 131℉(No dew condensation or icing allowed), Storage: -25 to +60℃ -13 to 140℉ |
| Ambient humidity | 30 to 85% RH, Storage: 30 to 95% RH |
| Environmental resistance : Dielectric strength voltage | 1,000 V AC for one minute, between all supply terminals connected together and enclosure |
| Environmental resistance : Insulation resistance | 20 MΩ or more, with 500 V DC megger, between all supply terminals connected together and enclosure |
| Environmental resistance : Vibration resistance | 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions for two hours each Malfunction resistance 10 to 55 Hz, 0.75 mm 0.030 in double amplitude in X, Y, and Z directions twenty times each |
| Environmental resistance : Shock resistance | 300 m/s2 acceleration (30 G approx.) in X, Y, and Z directions three times each Malfunction resistance 100 m/s2 acceleration (10 G approx.) in X, Y, and Z directions 1,000 times each |
| Material | Main unit case: PA66 (with glass) Base plate: SPCC + Plating Product model nameplate: Polyester External connection connector: Brass + Plating |
| Connection : Safety light curtain communication side | 8-core cable for safety light curtain (optional) |
| Connection method : IO-Link communication side | 4-core cable with M12 connector (commercially available product) |
| Weight | 270 g approx. |
| Remark | Use the safety light curtain monitoring information obtained via IO-Link only for diagnostic purposes. Do not use it for safety control purposes. |
