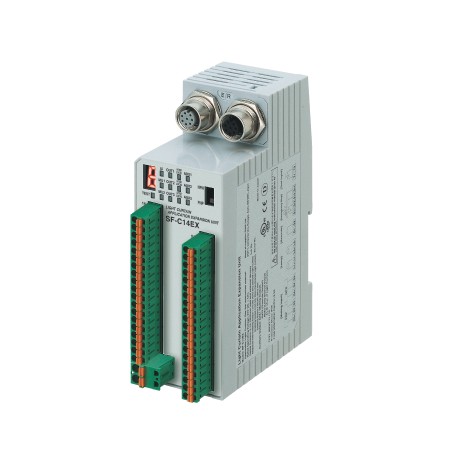

SFC14EX SF-C14EX PANASONIC Safety sensor accessory
Reference: SFC14EX
Catalog Number: SF-C14EX
Manufacturer: PANASONIC
Description:
Safety sensor accessory
SF-C14EX_Exclusive Control Unit for Safety Light Curtain_Exclusive Control Unit for Safety Light Curtain SF-C10_Applicantion expansion unit for the SF4B series
Categories:
- PANASONIC > Safety - PANASONIC > SF4B thru-beam type 4, IP67. ACCE - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
| Product Number | SF-C14EX |
| Part Number | SF-C14EX |
| Product | Exclusive Control Unit for Safety Light Curtain |
| Details | Applicantion expansion unit for the SF4B series |
| Product name | Exclusive Control Unit for Safety Light Curtain SF-C10 |
| Item | Specifications |
|---|---|
| Product Number | SF-C14EX |
| Part Number | SF-C14EX |
| Connectable safety light curtains | SF4B / SF4B-G series (Note：The handy-controller SFB-HC (optional) cannot be used with SF-C14EX-01.) |
| Applicable standards:International standard | IEC 61496-1 (Type 4), IEC 61496 (Type 4),ISO 13849-1 (Category 4, PLe) |
| CE marking directive compliance | Machinery Directive, EMC Directive, RoHS Directive |
| Control category | ISO 13849-1 (EN ISO 13849-1, JIS B 9705-1) compliance up to Category 4, PLe standards |
| Applicable standards:Japan | JIS B 9704-1 (Type 4), JIS B 9705-1 (Category 4, PLe) |
| Applicable standards:Europe (EU) | EN 55011, EN ISO 13849-1 (Category 4, PLe) |
| Applicable standards:North America | ANSI/UL 61496-1 (Type 4), UL 1998 (Class 2) |
| Power voltage | 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 0.2 A or less (Excluding Safety light curtain and other external connecting device) |
| Safety outputs(Safety output 1, Safety output 2, Safety output 3) | PNP open-collector transistor 2 outputs × 3 or NPN open-collector transistor 2 outputs × 3 (selectable using a slider switch) <When PNP output is selected> ・Maximum source current: 200 mA ・Applied voltage: same as supply voltage (between the safety output and +V) ・Residual voltage: 2 V or less (at 200 mA source current) <When NPN output is selected> ・Maximum sink current: 200 mA ・Applied voltage: same as supply voltage (between the safety output and 0 V) ・Residual voltage: 2 V or less (at 200 mA sink current) |
| Safety outputs(Safety output 1, Safety output 2, Safety output 3):Operation mode(Output operation) | Safety output 1: ON when the safety light curtain is in light receiving condition, OFF when the safety light curtain is in light interrupted condition (Note 3) Safety output 2: ON when the safety light curtain is in light receiving condition or the muting function is valid OFF when the safety light curtain is in light interrupted condition and the muting function is invalid (Note 3) Safety output 3: ON when the emergency stop is invalid, OFF when the emergency stop is valid |
| Safety outputs(Safety output 1, Safety output 2, Safety output 3):Protection circuit(Short-circuit protection) | Incorporated |
| Safety outputs(Safety output 1, Safety output 2, Safety output 3):Response time | OFF response: 14 ms or less (Safety output 1 and 2: including the response time of the Safety light curtain) ON response: 90 ms or less (auto-reset) / 140 ms or less (manual reset) (Note) (Note) The auto-reset cannot be used with safety output 3. |
| Auxiliary outputs(Auxiliary output 1, Auxiliary output 2, Auxiliary output 3, Auxiliary output 4) | PNP open-collector transistor × 3 or NPN open-collector transistor × 3 (selectable using a slider switch) <When PNP output is selected> ・Maximum source current: 60 mA ・Applied voltage: same as supply voltage (between the auxiliary output and +V) ・Residual voltage: 2 V or less (at 60 mA source current) <When NPN output is selected> ・Maximum sink current: 60 mA ・Applied voltage: same as supply voltage (between the auxiliary output and 0 V) ・Residual voltage: 2 V or less (at 60 mA sink current) |
| Auxiliary outputs(Auxiliary output 1, Auxiliary output 2, Auxiliary output 3, Auxiliary output 4):Operation mode(Output operation) | Auxiliary output 1: ON when the muting function is invalid, OFF when the muting function is valid Auxiliary output 2: ON when the override function is invalid, OFF when the override function is valid Auxiliary output 3: ON when the muting lamp is normal, OFF when the muting lamp is error Auxiliary output 4: ON when the light curtain is in light interrupted condition, OFF when the light curtain is in light receiving condition (Note：The auxiliary output incorporated in the SF4B series is output.) |
| Auxiliary outputs(Auxiliary output 1, Auxiliary output 2, Auxiliary output 3, Auxiliary output 4):Protection circuit(Short-circuit protection) | Incorporated |
| Muting lamp output | Applicable muting lamp: 24 V DC, 3.6 to 30 W (L1, L2 of each unit) |
| Muting lamp output:Protection circuit | Incorporated |
| PFHD | 1.66 × 10-10 (Note：Probability of dangerous failure per hour) |
| MTTFD | 100 years or more (Note：Mean time to dangerous failure (in years)) |
| Environmental resistance:Degree of protection | Enclosure: IP40 Terminal: IP20 |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +70 ℃ -13 to +158 ℉ |
| Ambient humidity | 30 to 85 % RH, Storage: 30 to 95 % RH |
| Environmental resistance:Dielectric strength voltage | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 55 Hz frequency, 0.35 mm 0.014 in double amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 30 G acceleration in X, Y and Z directions three times each |
| Material | Enclosure: ABS |
| Connection terminal | Detachable spring-cage terminal |
| Weight | Net weight: 250 g approx. |
