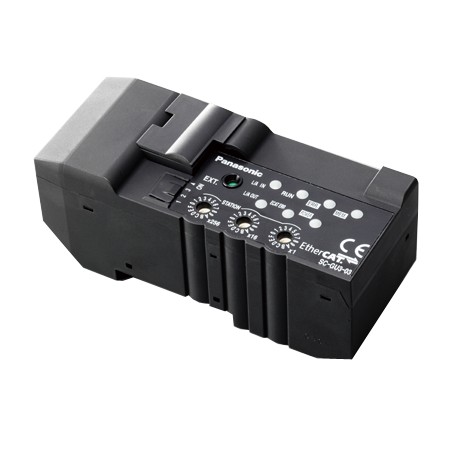

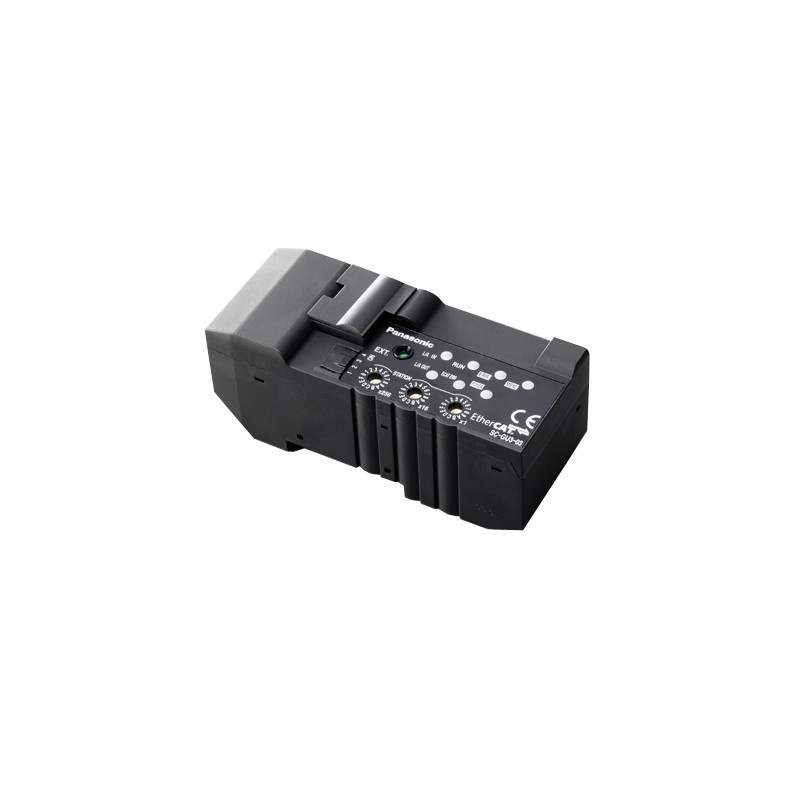

USCGU303 SC-GU3-03 PANASONIC Communication Unit for EtherCAT
USCGU303
SC-GU3-03
SC-GU3-03
PANASONIC
Communication Unit for EtherCAT
SC-GU3 Series. EtherCAT Communication Unit for Amplifiers (FX500/400/300, LS-400, DPS-400)
SC-GU3-03_Commnunication Unit for Open Network_Communication Unit for Open Network SC-GU3_Communication unit for EtherCAT
Fiber - PANASONIC > SC-GU3 series. EtherCAT communications unit - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | SC-GU3-03 |
| Part Number | SC-GU3-03 |
| Product | Commnunication Unit for Open Network |
| Details | Communication unit for EtherCAT |
| Product name | Communication Unit for Open Network SC-GU3 |
| Item | Specifications |
|---|---|
| Product Number | SC-GU3-03 |
| Part Number | SC-GU3-03 |
| Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Number of connectable units | Maximum of 16 units per SC-GU3-01 unit (Max. 12 units when FX-500 / LS-500 series are connected) |
| Supply voltage | 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 80 mA or less (at 24 V) (without connected sensor amplifiers) |
| Allowable passing current | Wire-saving connector 2 A (Note) Be sure to check that total current consumption of sensor amplifiers connected in cascade does not exceed allowable passing current. |
| Compliance standard | IEEE802.3u |
| Baud rate | 100 Mbps |
| Communication cable | Category 5e |
| Internodal distance | 100 m 328.1ft |
| Communication ports | RJ45 × 2 |
| EtherCAT communication standards | Process data communication, Mailbox communication |
| Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), \n(If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉, \nif 8 to 16 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉) \nStorage: –20 to +70 ℃ –4 to +158 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Material | Enclosure: Polycarbonate |
| Weight | Net weight: 75 g approx. Gross weight: 120 g approx. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| USCGU303 SC-GU3-03 SC-GU3-03 sc-gu3-03_e_cata1.pdf | 5 Mbytes |
|
