PM-R25-C3
PANASONIC
1
u-shape type, R-shape, 6mm, NPN, cable 3m
Miniature Photoelectric Sensors - PANASONIC > PM thru-beam microphotosensors - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | PM-R25-C3 |
Part Number | PM-R25-C3 |
Product | Amplifier Built-in / U-shaped Micro Photoelectric Sensor |
Details | Ultra-small / Cable type [R type] |

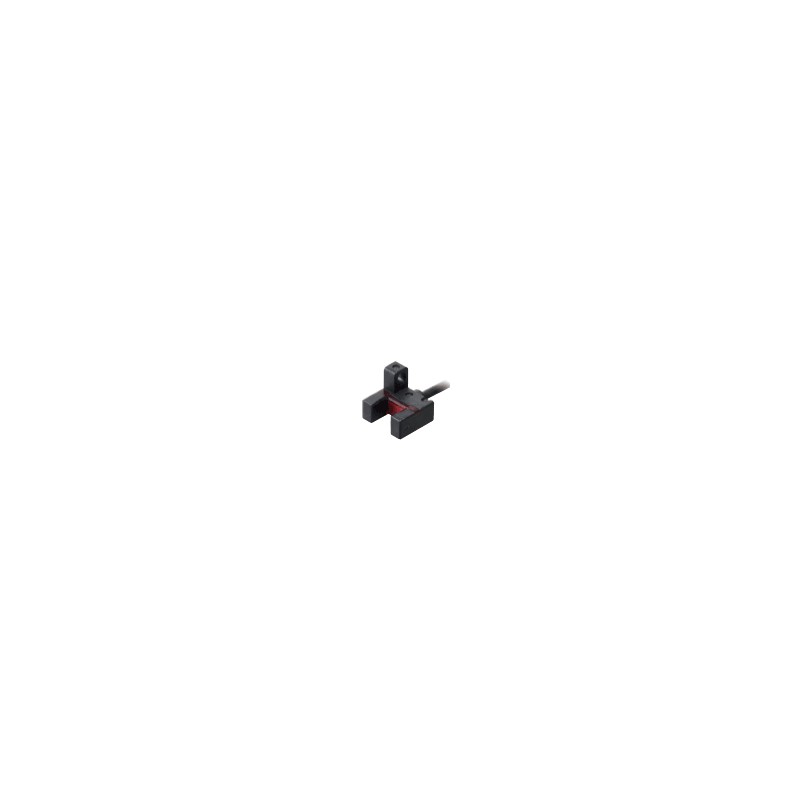

Product name | Amplifier Built-in / U-shaped Micro Photoelectric Sensor [Ultra-small / Cable type] PM-25 |
Item | Specifications | ||
---|---|---|---|
Product Number | PM-R25-C3 | ||
Part Number | PM-R25-C3 | ||
CE marking directives | EMC Directive, RoHS Directive | ||
Sensing range | 6 mm0.236 in(fixed) | ||
Minimum sensing object | 0.8 × 1.2 mm0.031 × 0.047 inopaque object | ||
Hysteresis | 0.05 mm0.002 inor less | ||
Repeatability | 0.01 mm0.0004 inor less | ||
Supply voltage | 5 to 24 V DC ±10 % Ripple P-P 10 % or less | ||
Current consumption | 15 mA or less | ||
Output | NPN open-collector transistor ・Maximum sink current: 50 mA ・Applied voltage: 30 V DC or less (between output and 0 V) ・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) | ||
Output:Output operation | Incorporated with 2 outputs: Light-ON / Dark-ON | ||
Output:Short-circuit protection | Incorporated | ||
Response time | Under light received condition: 20 μs or less Under light interrupted condition: 80 μs or less (Maximum response frequency: 3 kHz)(Note) (Note) : The response frequency is the value when the disc, given in the figure below, is rotated. | ||
Operation indicator | Orange LED (lights up under light received condition) | ||
Pollution degree | 3 | ||
Protection | IP64 (IEC) | ||
Ambient temperature | -25 to +55 ℃-13 to +131 ℉(No dew condensation or icing allowed), Storage: -30 to +80 ℃-22 to +176 ℉ (Note) : In case is used at an ambient temperature of +50 ℃ +122 ℉, or more, make sure to mount it on a metal body. | ||
Ambient humidity | 5 to 85 % RH, Storage: 5 to 95 % RH | ||
Ambient illuminance | Fluorescent light: 1,000 ℓx at the light-receiving face | ||
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | ||
Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | ||
Vibration resistance | 10 to 2,000 Hz frequency, 1.5 mm0.059 indouble amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each | ||
Shock resistance | 15,000 m/s2acceleration (1,500 G approx.) in X, Y and Z directions three times each | ||
Emitting element | Infrared LED (Peak emission wavelength: 855 nm0.034 mil, non-modulated) | ||
Material | Enclosure: PBT Display section: Polycarbonate | ||
Cable | 0.09-mm24-core cabtyre cable, PVC, 3 m9.843 ftlong | ||
Wiring length | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. (Note) : If the cable is extended to 20 m65.617 ftor longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher. | ||
Weight | Net weight: 30 g approx Gross weight: 35 g approx. | ||
Remark | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃+73.4 ℉. |
