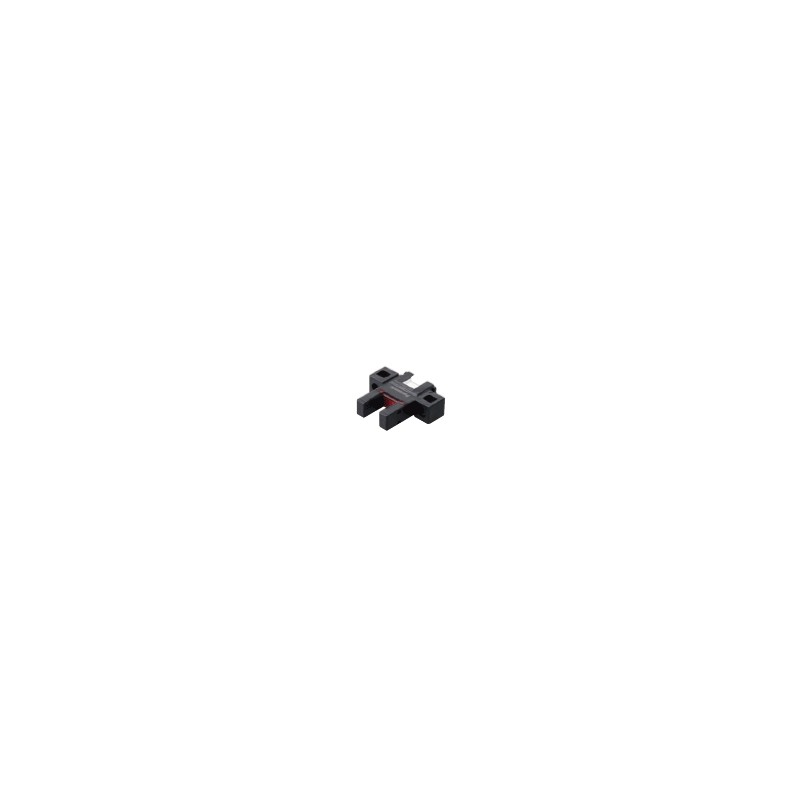

UPMK65 PM-K65 PANASONIC u-shape type, K-shape, 6mm, NPN, connector

Reference: UPMK65

Code: PM-K65

Manufacturer: PANASONIC

Description:

u-shape type, K-shape, 6mm, NPN, connector
Miniature and compact horseshoe photoelectric sensor, type K, 6mm range, 2 outputs (one for Light-ON and one for Dark-ON) NPN, with connector
PM-K65_Amplifier Built-in / U-shaped Micro Photoelectric Sensor_Amplifier Built-in / U-shaped Micro Photoelectric Sensor [Compact / Connector built-in type] PM-65_Compact / Connector built-in type [K type]

Categories:

  • PANASONIC > Miniature Photoelectric Sensors - PANASONIC > PM thru-beam microphotosensors - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Product NumberPM-K65
Part NumberPM-K65
ProductAmplifier Built-in / U-shaped Micro Photoelectric Sensor
DetailsCompact / Connector built-in type [K type]
Product nameAmplifier Built-in / U-shaped Micro Photoelectric Sensor [Compact / Connector built-in type] PM-65

ItemSpecifications
Product NumberPM-K65
Part NumberPM-K65
Applicable regulations and certificationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Listing certification
Sensing range6 mm 0.236 in (fixed)
Minimum sensing object0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis0.05 mm 0.002 in or less
Repeatability0.01 mm 0.0004 in or less
Supply voltage5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current consumption15 mA or less
OutputNPN open-collector transistor
・Maximum sink current: 50 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output:Output operationIncorporated with 2 outputs: Light-ON / Dark-ON
Output:Short-circuit protectionIncorporated
Response timeUnder light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz)(Note)
(Note) Refer to the note on the specification page for the response frequency.
Operation indicatorOrange LED (lights up under light received condition)
Pollution degree3
ProtectionIP40 (IEC)
Ambient temperature-25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉
Ambient humidity5 to 85 % RH, Storage: 5 to 95 % RH
Ambient illuminanceFluorescent light: 1,000 ℓx at the light-receiving face
Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock resistance15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting elementInfrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
MaterialEnclosure: PBT
Display section: Polycarbonate
Cable lengthExtension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
(Note) If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.
WeightNet weight: 3 g approx.
Gross weight: 3 g approx.
RemarkWhere measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.
