PANASONICMiniature Photoelectric Sensors - PANASONICPM THRU-BEAM MICROPHOTOSENSORS - PANASONICPM-K64P PANASONIC u-shape type, 5mm, PNP, connector

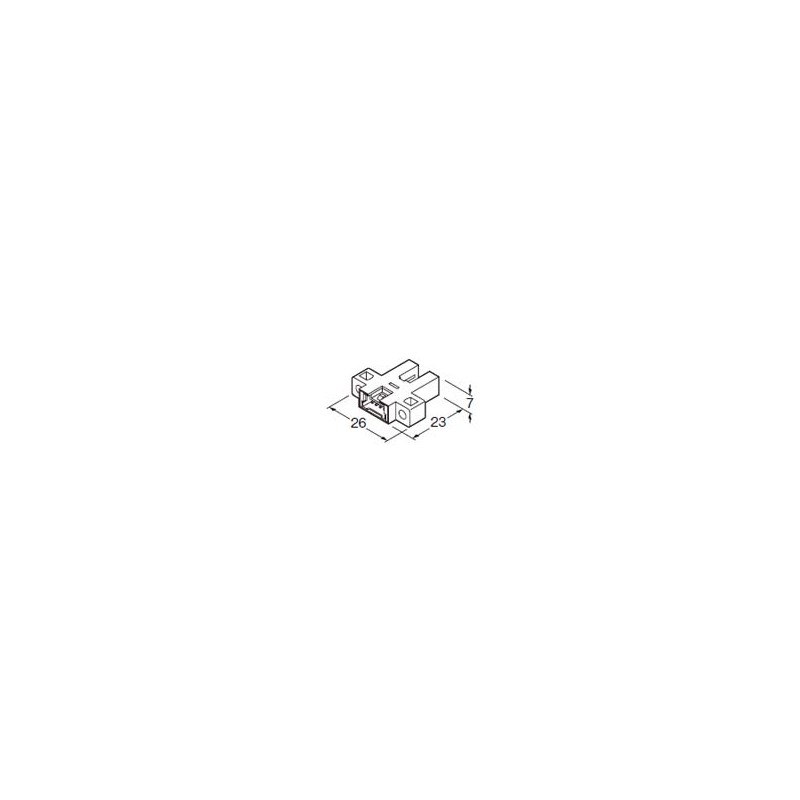

PANASONIC PM-K64P PM-K64P - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PM-K64P PANASONIC u-shape type, 5mm, PNP, connector

Reference: PM-K64P

Manufacturer: PANASONIC

Description:

PM-K64P_Connector Built-in U-shaped Micro Photoelectric Sensor[Amplifier Built-in] PM-64(Discontinued)

Categories:

  • PANASONIC > Miniature Photoelectric Sensors - PANASONIC > PM thru-beam microphotosensors - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Product Number PM-K64P
Part Number PM-K64P
Product name Connector Built-in U-shaped Micro Photoelectric Sensor[Amplifier Built-in] PM-64(Discontinued)

Item Specifications
Product Number PM-K64P
Part Number PM-K64P
Sensing range 5 mm 0.197 in (fixed)
Minimum sensing object 0.8 x 1.8 mm 0.031 x 0.071 in opaque object
Hysteresis 0.05 mm 0.002 in or less
(Note) This is the value when a sensing object is moved in a lateral direction to the U-shape.
Repeatability 0.01 mm 0.004 in or less
(Note) This is the value when a sensing object is moved in a lateral direction to the U-shape and when the inserting length of the sensing board is 5 mm 0.197 in.
Supply voltage 5 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption 15 mA or less
Output PNP open-collector transistor
Maximum source current: 50 mA
Applied voltage: 30 V DC or less (between output and +V)
Residual voltage: 0.7 V or less (at 50 mA source current), 0.4 V or less (at 16 mA source current)
Output:Output operation Incorporated with 2 outputs: Light-ON / Dark-ON
Response time Under light received condition: 20 micros or less, Under light interrupted condition: 100 micros or less(Response frequency: 1 kHz or more)
Operation indicator Orange LED (lights up under light received condition)
Ambient temperature -25 to +55 degrees -13 to +131degrees Fahrenheit(No dew condensation or icing allowed), Storage: -30 to +80 degrees -22 to +176degrees Fahrenheit
Ambient humidity 35 to 85 % RH, Storage: 5 to 95 % RH
Ambient illuminance Fluorescent light: 1,000 lx at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 50 MOhm, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each
Shock resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions for three times each
Emitting element Infrared LED(Peak emission wavelength: 940 nm 0.037 mil, non-modulated)
Material Enclosure: PBT, Slit cover: Polycarbonate
Wiring length Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
(Note) Confirm that the sensor terminal voltage is more than 4.5 V when using an extension of over 20 m 65.617 ft.
Weight Net weight: 3 g approx.
