PANASONICMinas E servo drives - PANASONICMINAS E, INCREMENTAL ENCODER ENGINES - PANASONICMUMA042P1T PANASONIC MUMA042P1T Minas E servo motor 400W

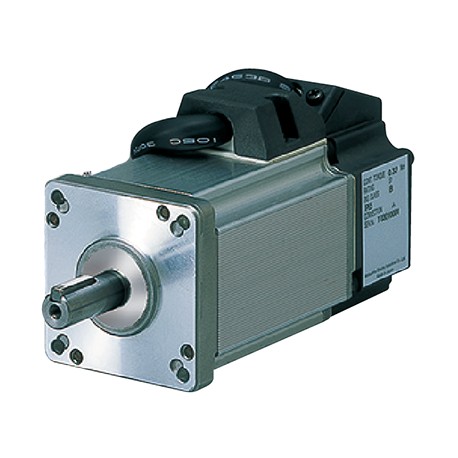

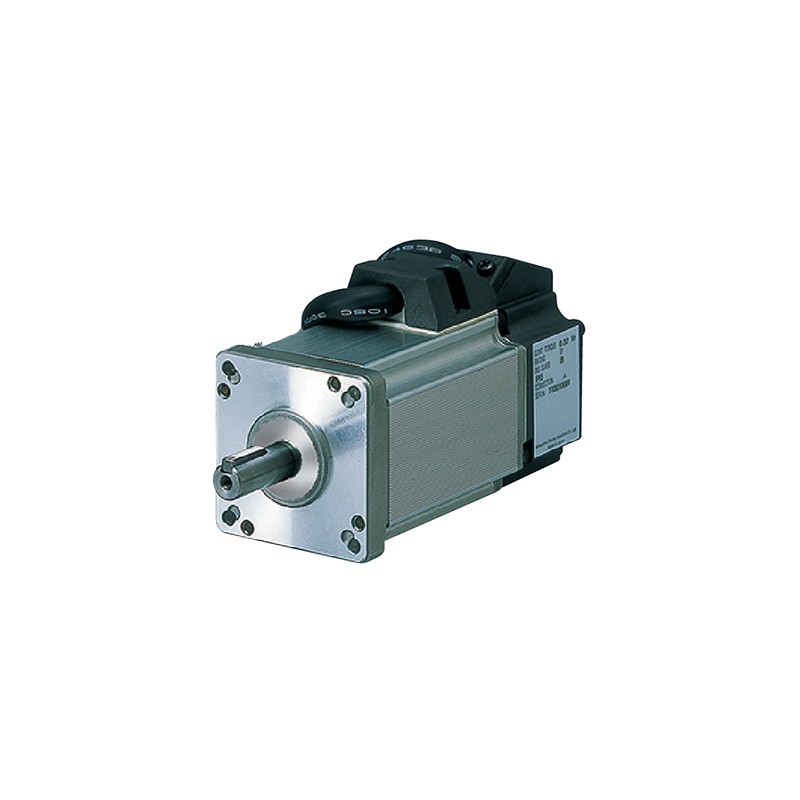

PANASONIC MUMA042P1T MUMA042P1T - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MUMA042P1T PANASONIC MUMA042P1T Minas E servo motor 400W

Reference: MUMA042P1T

Manufacturer: PANASONIC

Description:

MUMA042P1T_Servo Motor_MINAS E series Servo Motor

Categories:

  • PANASONIC > Minas E servo drives - PANASONIC > MINAS E, incremental encoder engines - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Part Number MUMA042P1T
Product Servo Motor
Product name MINAS E series Servo Motor
Features Compact Servo Only for Position Control.

Item Specifications
Part Number MUMA042P1T
Type Ultra low inertia
Enclosure IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
Environmental Conditions For more details, please refer to the instruction manual.
Voltage specifications 200 V
Rated output 400 W
Rated current (A (rms)) 2.5
Holding brake with
Mass (kg) 1.9
Oil seal without
Shaft Key-way, center tap
Rated torque (N ⋅ m) 1.3
Momentary Max. peak torque (N ⋅ m) 3.8
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P2891
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 5000
Moment of inertia of rotor ( x10-4kg ⋅ m²) 0.20
Recommended moment of inertia ratio of the load and the rotor 30 times or less
About recommended moment of inertia ratio of the load and the rotor Note) 3. Consult us or a dealer if the load moment of inertia exceeds the specified value.
Rotary encoder: specifications 2500 P/r Incremental
Rotary encoder: Resolution 10000
