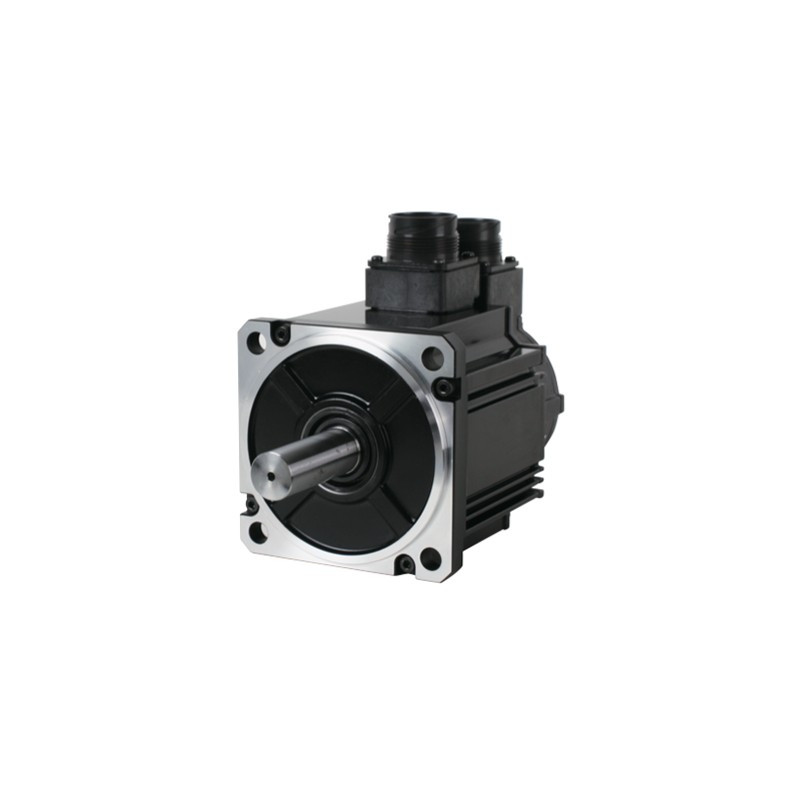

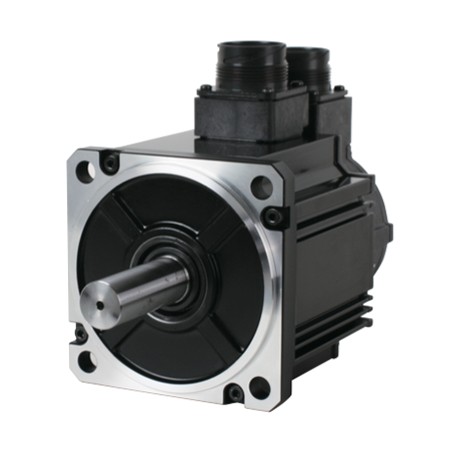

MSMF202L1C5 PANASONIC Motor MINAS A6, 2kW, low inertia, 6.37Nm, 3000rpm, 200V class, round shaft, oil seal
MSMF202L1C5
PANASONIC
Motor MINAS A6, 2kW, low inertia, 6.37Nm, 3000rpm, 200V class, round shaft, oil seal
SERVO MOTOR MINAS A6, 2 kW (6.37Nm), low inertia, 3,000 rpm, incremental & absolute encoder 23 bits, with oil retention, shaft with chaveta
MSMF202L1C5_Servo Motor_MINAS A6 Family Servo Motor_Low inertia, Connector type
MINAS A6 Series
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Part Number | MSMF202L1C5 |
| Product | Servo Motor |
| Details | Low inertia, Connector type |
| Product name | MINAS A6 Family Servo Motor |
| Features | 50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz |
| Item | Specifications |
|---|---|
| Part Number | MSMF202L1C5 |
| Details | Low inertia, Connector type |
| Family Name | MINAS A6 |
| Series | MSMF Series |
| Type | Low inertia |
| Protection class | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 100 mm sq. |
| Flange sq. dimension (Unit:mm) | 100 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Motor connector: JL10, Encoder connector: Small size JN2 |
| Power supply capacity (kVA) | 3.8 |
| Voltage specifications | 200 V |
| Rated output | 2000 W |
| Rated current (A (rms)) | 11.3 |
| Holding brake | without |
| Mass (kg) | 5.6 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 6.37 |
| Continuous stall torque (N ⋅ m) | 7.64 |
| Momentary Max. peak torque (N ⋅ m) | 19.1 |
| Max. current (A (o-p)) | 48 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 4.06 |
| Recommended moment of inertia ratio of the load and the rotor | 15 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Data sheet MSMF202L1C5 PANASONIC MINAS A6 Family Servo Motor | 17 Mbytes |
|
