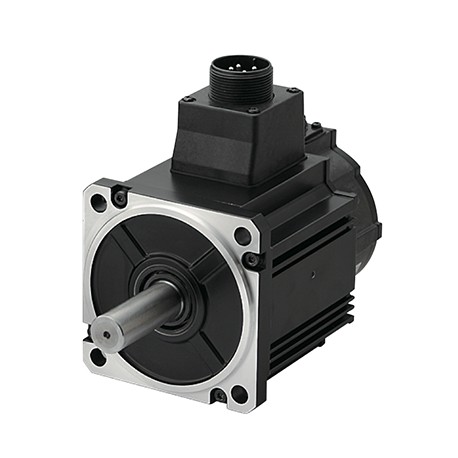

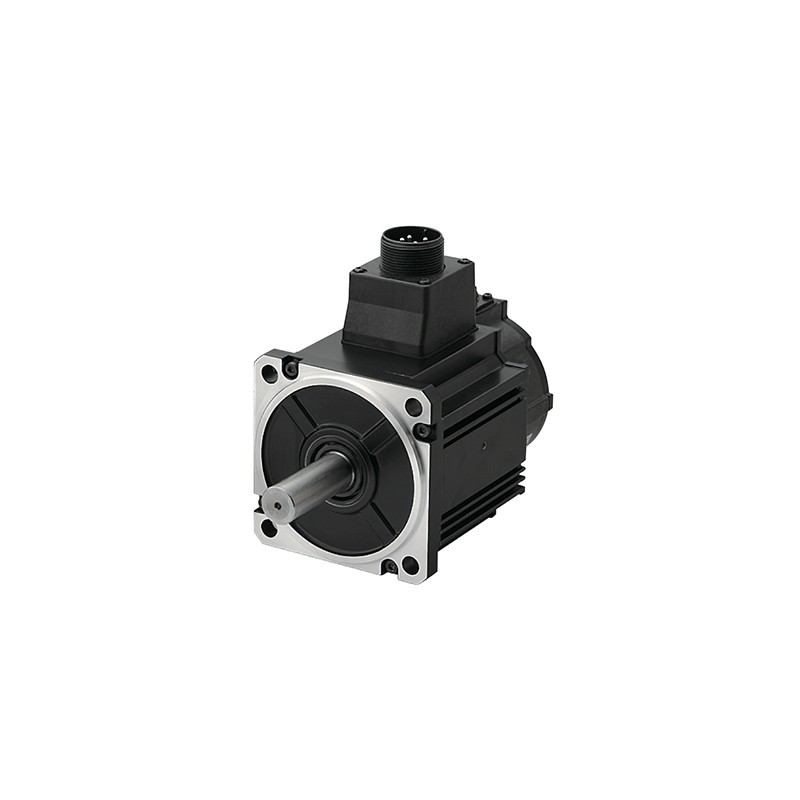

MSME104S1G PANASONIC Motor MINAS A5, 1kW, low inertia, 3.18Nm, 3000rpm, 400V class, key-way shaft, oil seal,..
MSME104S1G
PANASONIC
Motor MINAS A5, 1kW, low inertia, 3.18Nm, 3000rpm, 400V class, key-way shaft, oil seal, absolute encoder
Minas A5 Series. 1 phase 200V engines, low inertia - PANASONIC > MINAS A5, low inertia incremental encoder - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Part Number | MSME104S1G |
| Product | Servo Motor |
| Details | Low inertia, Connector type, IP67 |
| Product name | MINAS A5 Family Servo Motor |
| Features | Servo motor that bring out potential of the machine. |
| Item | Specifications |
|---|---|
| Part Number | MSME104S1G |
| Details | Low inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MSME Series |
| Type | Low inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 100 mm sq. |
| Flange sq. dimension (Unit:mm) | 100 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 1.8 |
| Voltage specifications | 400 V |
| Rated output | 1000 W |
| Rated current (A (rms)) | 3.3 |
| Holding brake | without |
| Mass (kg) | 3.5 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 3.18 |
| Momentary Max. peak torque (N ⋅ m) | 9.55 |
| Max. current (A (o-p)) | 14 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0PM20048 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4kg ⋅ m²) | 2.03 |
| Recommended moment of inertia ratio of the load and the rotor | 15 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
