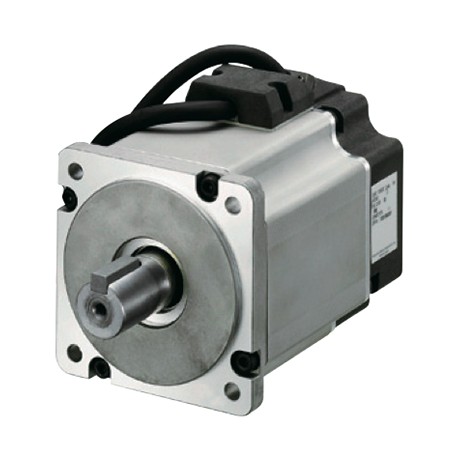

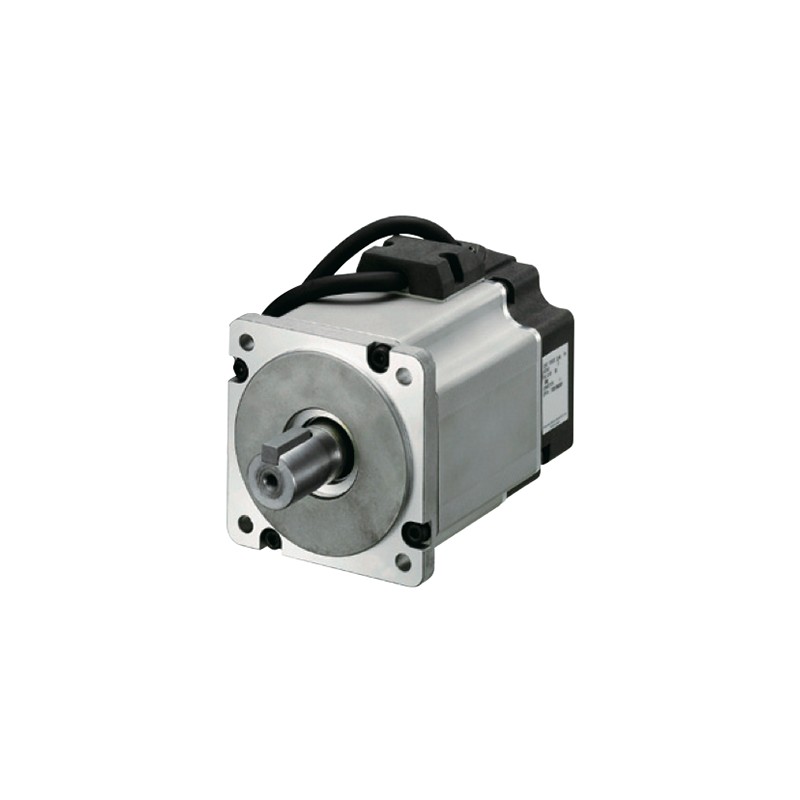

MSMD082G1U PANASONIC MINAS A5 Family Servo Motor
MSMD082G1U
PANASONIC
MINAS A5 Family Servo Motor
MSMD082G1U_Servo Motor_MINAS A5 Family Servo Motor_Low inertia, Lead wire type, IP65
Home > PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Part Number | MSMD082G1U |
| Product | Servo Motor |
| Details | Low inertia, Lead wire type, IP65 |
| Product name | MINAS A5 Family Servo Motor |
| Features | Servo motor that bring out potential of the machine. |
| Item | Specifications |
|---|---|
| Part Number | MSMD082G1U |
| Details | Low inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MSMD Series |
| Type | Low inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 80 mm sq. |
| Flange sq. dimension (Unit:mm) | 80 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 1.3 |
| Voltage specifications | 200 V |
| Rated output | 750 W |
| Rated current (A (rms)) | 4.0 |
| Holding brake | without |
| Mass (kg) | 2.3 |
| Oil seal | with |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 2.4 |
| Momentary Max. peak torque (N ⋅ m) | 7.1 |
| Max. current (A (o-p)) | 17.0 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 4500 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.87 |
| Recommended moment of inertia ratio of the load and the rotor | 20 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PANASONIC EN.pdf | 15 Mbytes |
|
| Data sheet MSMD082G1U PANASONIC MINAS A5 Family Servo Motor | 10 Mbytes |
|
