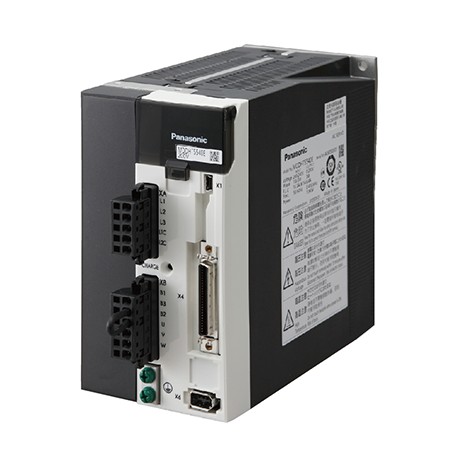

MFDHTB3A2E PANASONIC Servo drive MINAS A5E series, position control via pulse input, without analog input, 4..
Reference: MFDHTB3A2E
Manufacturer: PANASONIC
Description:
MFDHTB3A2E_Servo Driver_MINAS A5 Family Servo Driver_A5E seriesPosition control typewithout the safety function
Categories:
- PANASONIC > Minas A5 Series - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
| Part Number | MFDHTB3A2E |
| Product | Servo Driver |
| Details | A5E series Position control type without the safety function |
| Product name | MINAS A5 Family Servo Driver |
| Features | Servo motor that bring out potential of the machine. |
| Item | Specifications |
|---|---|
| Part Number | MFDHTB3A2E |
| Details | A5E series Position control type without the safety function |
| Family Name | MINAS A5 |
| Series | A5E series |
| Type | Position control type |
| Frame | F-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control |
| Safety Function | without the safety function |
| Power device Max. current rating | 150A |
| Current detector current rating | 120A |
| Supply voltage | 3-phase 200 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 130 |
| Dimensions (H) (Unit: mm) | 220 |
| Dimensions (D) (Unit: mm) | 214 |
| Mass (kg) | 4.8 |
| Environment | For more details, please refer to the instruction manual. |
DATASHEET - PDF
