MDME204G1H
PANASONIC
1

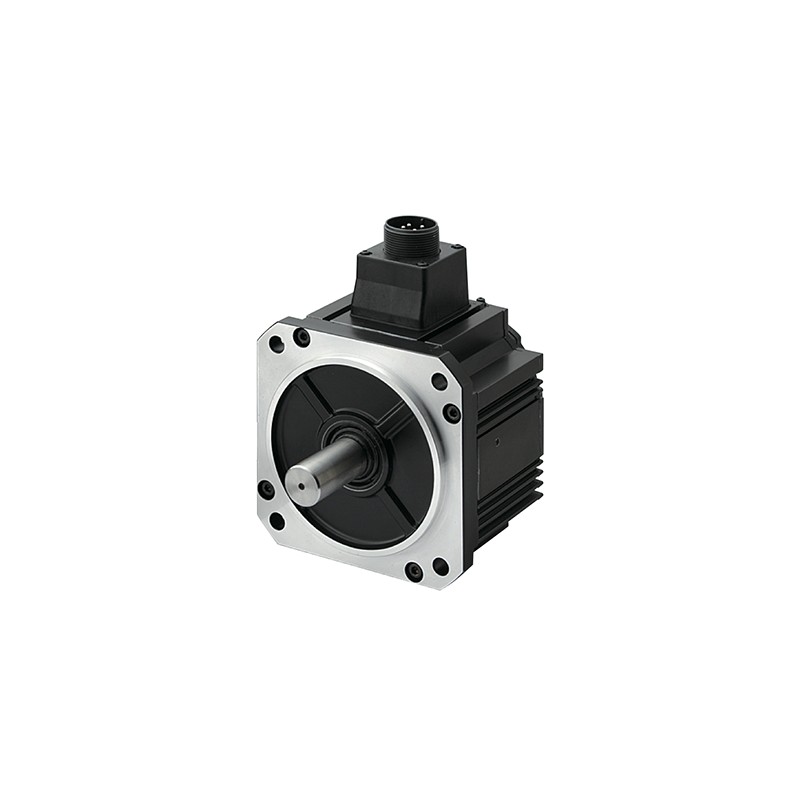

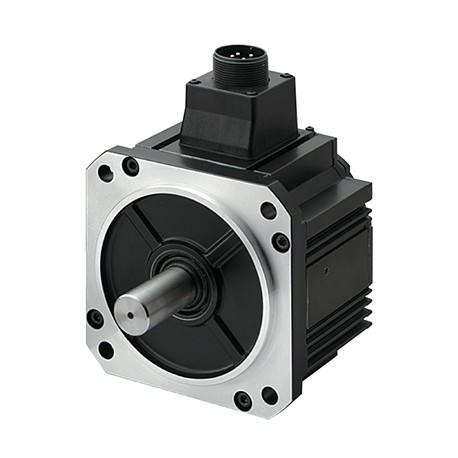

Motor MINAS A5, 2kW, middle inertia, 9.55Nm, 2000rpm, 400V class, key-way shaft, oil seal, holding brake
Minas A5 Series - PANASONIC > MINAS A5, Drivers, 3 phase 400V power supply - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Part Number | MDME204G1H |
Product | Servo Motor |
Details | Middle inertia, Connector type, IP67 |
Product name | MINAS A5 Family Servo Motor |
Features | Servo motor that bring out potential of the machine. |
Item | Specifications |
---|---|
Part Number | MDME204G1H |
Details | Middle inertia, Connector type, IP67 |
Family Name | MINAS A5 |
Series | MDME Series |
Type | Middle inertia |
Enclosure | IP67 |
About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
Environmental Conditions | For more details, please refer to the instruction manual. |
Flange sq. dimension | 130 mm sq. |
Flange sq. dimension (Unit:mm) | 130 |
Motor lead-out configuration | Connector |
Motor encoder connector | Connector |
Power supply capacity (kVA) | 3.3 |
Voltage specifications | 400 V |
Rated output | 2000 W |
Rated current (A (rms)) | 5.9 |
Holding brake | with |
Mass (kg) | 9.5 |
Oil seal | with |
Shaft | Key-way |
Rated torque (N ⋅ m) | 9.55 |
Momentary Max. peak torque (N ⋅ m) | 28.6 |
Max. current (A (o-p)) | 25 |
Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0PM20049 |
About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
Rated rotational speed (r/min) | 2000 |
Rated rotational Max. speed (r/min) | 3000 |
Moment of inertia of rotor ( x10-4kg ⋅ m²) | 10.0 |
Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
Rotary encoder: specifications | 20-bit Incremental system |
Rotary encoder: Resolution | 1048576 |
