PANASONICMinas A5 Series - PANASONICMINAS A5, DRIVERS, 1 PHASE 200V POWER SUPPLY - PANASONICMDDHT3530 PANASONIC Servo drive MINAS A5, position, velocity and torque control, with Safety Torque Off func..

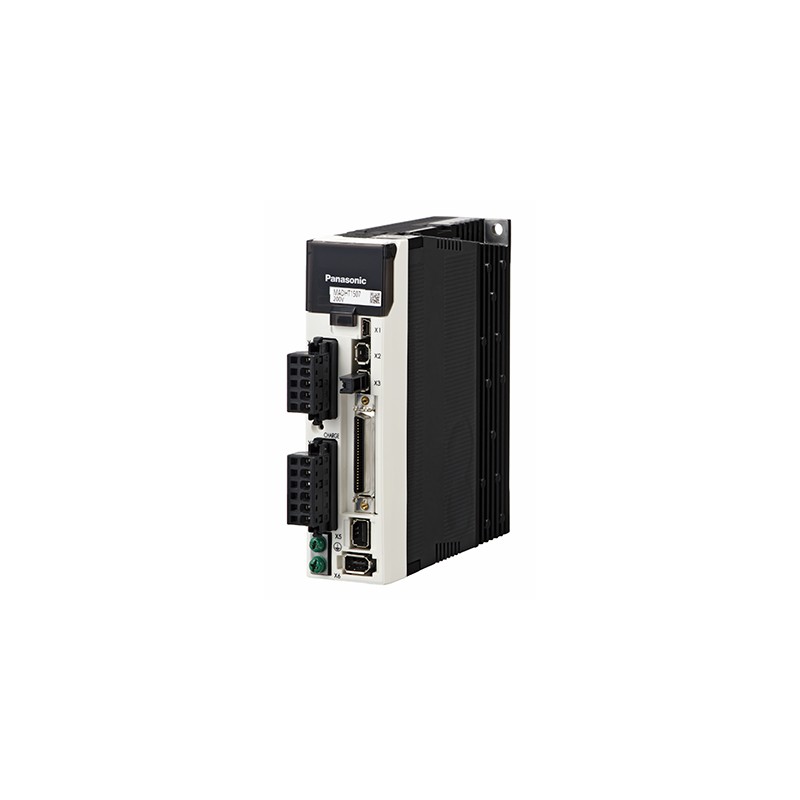

PANASONIC MDDHT3530 MDDHT3530 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MDDHT3530 PANASONIC Servo drive MINAS A5, position, velocity and torque control, with Safety Torque Off func..

Reference: MDDHT3530

Manufacturer: PANASONIC

Description:

Servo drive MINAS A5, position, velocity and torque control, with Safety Torque Off function(STO), 1kW, 1x200VAC

Categories:

  • PANASONIC > Minas A5 Series - PANASONIC > MINAS A5, Drivers, 1 phase 200V power supply - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Part Number MDDHT3530
Product Servo Driver
Details A5 series
Speed, Position, Torque, Full-closed type
with the safety function
Product name MINAS A5 Family Servo Driver
Features Servo motor that bring out potential of the machine.

Item Specifications
Part Number MDDHT3530
Details A5 series
Speed, Position, Torque, Full-closed type
with the safety function
Family Name MINAS A5
Series A5 series
Type Speed, Position, Torque, Full-closed type
Frame D-Frame
Frequency response 2.3 kHz
Control method Position control, Velocity control, Torque control, and Full-closed control
Safety Function with the safety function
Power device Max. current rating 30A
Current detector current rating 30A
Supply voltage Single/3-phase 200 V
I/F Classification of type Analog/Pulse
Dimensions (W) (Unit: mm) 85
Dimensions (H) (Unit: mm) 150
Dimensions (D) (Unit: mm) 170
Mass (kg) 1.8
Environment For more details, please refer to the instruction manual.

DATASHEET - PDF

Title
Size
Type
PDF CATALOG PANASONIC SERVO A5 LIQI EN
5 Mbytes
PDF CATALOGUE PANASONIC EN
15 Mbytes
