PANASONICMinas A5 Series - PANASONICMCDHT3520E PANASONIC Servo drive MINAS A5E series, position control via address input, without analog input,..

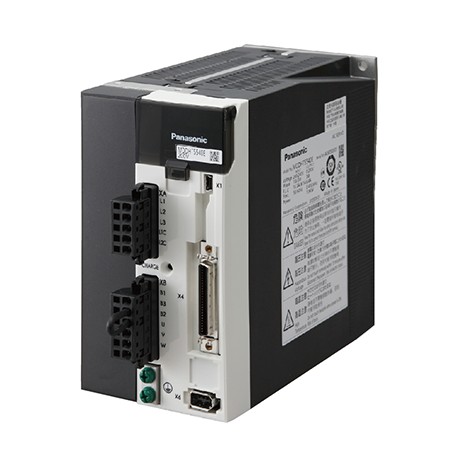

PANASONIC MCDHT3520E MCDHT3520E - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MCDHT3520E PANASONIC Servo drive MINAS A5E series, position control via address input, without analog input,..

Reference: MCDHT3520E

Manufacturer: PANASONIC

Description:

MCDHT3520E_Servo Driver_MINAS A5 Family Servo Driver_A5E seriesPosition control typewithout the safety function

Categories:

  • PANASONIC > Minas A5 Series - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Part Number MCDHT3520E
Product Servo Driver
Details A5E series
Position control type
without the safety function
Product name MINAS A5 Family Servo Driver
Features Servo motor that bring out potential of the machine.

Item Specifications
Part Number MCDHT3520E
Details A5E series
Position control type
without the safety function
Family Name MINAS A5
Series A5E series
Type Position control type
Frame C-Frame
Frequency response 2.3 kHz
Control method Position control
Safety Function without the safety function
Power device Max. current rating 30A
Current detector current rating 20A
Supply voltage Single/3-phase 200 V
I/F Classification of type Analog/Pulse
Dimensions (W) (Unit: mm) 65
Dimensions (H) (Unit: mm) 150
Dimensions (D) (Unit: mm) 170
Mass (kg) 1.6
Environment For more details, please refer to the instruction manual.

DATASHEET - PDF

Title
Size
Type
PDF CATALOG PANASONIC SERVO A5 LIQI EN
5 Mbytes
PDF CATALOGUE PANASONIC EN
15 Mbytes
