PANASONICColour sensors - PANASONICLX100 DIGITAL MARK SENSOR - PANASONICULX101P LX101P LX-101-P PANASONIC Digtal mark sensor, teach-in, PNP, cable 2m

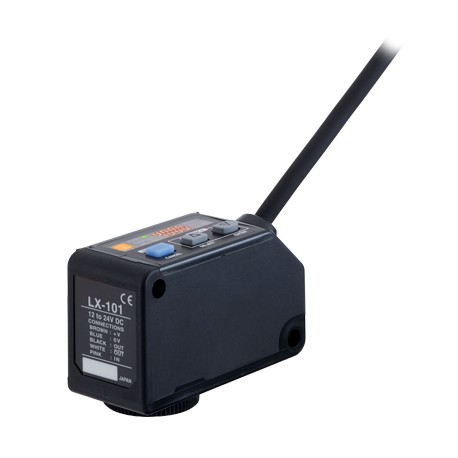

PANASONIC ULX101P LX101P LX-101-P - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ULX101P LX101P LX-101-P PANASONIC Digtal mark sensor, teach-in, PNP, cable 2m

Reference: ULX101P

Code: LX101P

Catalog Number: LX-101-P

Manufacturer: PANASONIC

Description:

Digtal mark sensor, teach-in, PNP, cable 2m
Sensor for mark/color detection, automatic selection of RGB optical LED, cable, PNP

Categories:

  • PANASONIC > Colour sensors - PANASONIC > LX100 digital mark sensor - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 391,91 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice
Stock delivery tomorrow. 1 units.

More units, standard lead time: 3-4 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product Number LX-101-P
Part Number LX-101-P
Product Digital Mark Sensor
Details Cable type
Product name Digital Mark Sensor LX-100

Item Specifications
Product Number LX-101-P
Part Number LX-101-P
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 10 ± 3 mm0.394 ± 0.118 in
Spot size 1 x 5 mm 0.039 x0.197 in(at 10 mm0.394 insetting distance)
Supply voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption Normal mode: 750 mW or less(Current consumption 30 mA or less at 24 V supply voltage)
ECO mode: 600 mW or less(Current consumption 25 mA or less at 24 V supply voltage)
Output 1(OUT) PNP open-collector transistor
- Maximum source current: 50 mA
- Applied voltage: 30 V DC or less (between output and +V)
- Residual voltage: 1.5 V or less (at 50 mA source current)
Output 1:Short-circuit protection Incorporated
Output 1:Output operation Mark mode: Light-ON / Dark-ON (Auto-setting on teaching)
Color mode: Consistent-ON / Inconsistent-ON (Setting on teaching)
Output 2(OUT) PNP open-collector transistor
- Maximum source current: 50 mA
- Applied voltage: 30 V DC or less (between output and +V)
- Residual voltage: 1.5 V or less (at 50 mA source current)
Output 2:Short-circuit protection Incorporated
Output 2:Output operation Inverted operation of the output 1
Response time Mark mode: 45 micro s or less
Color mode: 150 micro s or less
Teaching input PNP non-contact input
- Signal condition: High... +4 V to +V (sink current: 3 mA or less), Low... 0 to +0.6 V, or open
- Input impedance: 10 kOhm approx.
Digital display 4-digit red LED display
Sensitivity setting Mark mode: 2-level teaching / Full-auto teaching
Color mode: 1-level teaching
Fine sensitivity adjustment function Incorporated
Timer function Incorporated with variable ON-delay / OFF-delay timer,
switchable either effective or ineffective
(Timer period: 1 to 500 ms, 9 levels variable)
Protection IP67 (IEC)
Ambient temperature -10 to +55 ℃+14 to +131 ℉(No dew condensation or icing allowed),
Storage: -20 to +70 ℃-4 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3.0 mm0.118 indouble amplitude (max. 20 G) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directionsthree times each
Emitting element Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm0.025 mil/ 525 nm0.021 mil/ 470 nm0.019 mil)
Material Enclosure: PBT
Display cover: Polycarbonate
Operation buttons: Silicone rubber
Lens: Glass
Lens holder: Aluminum
Cable 0.34 mm25-core cabtyre cable, 2 m6.562 ftlong
Cable extension Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable.
Weight Net weight: 120 g approx
Gross weight: 180 g approx
Accessory M4 (length 30 mm1.181 in) screw with washers: 2 pcs.

DATASHEET - PDF

Title
Size
Type
Datasheet 1: LX101P - LX101P | LX-101-P
1 Mbytes
PDF CATALOG PANASONIC SENSORS EN
31 Mbytes
PDF CATALOGUE PANASONIC EN
15 Mbytes
