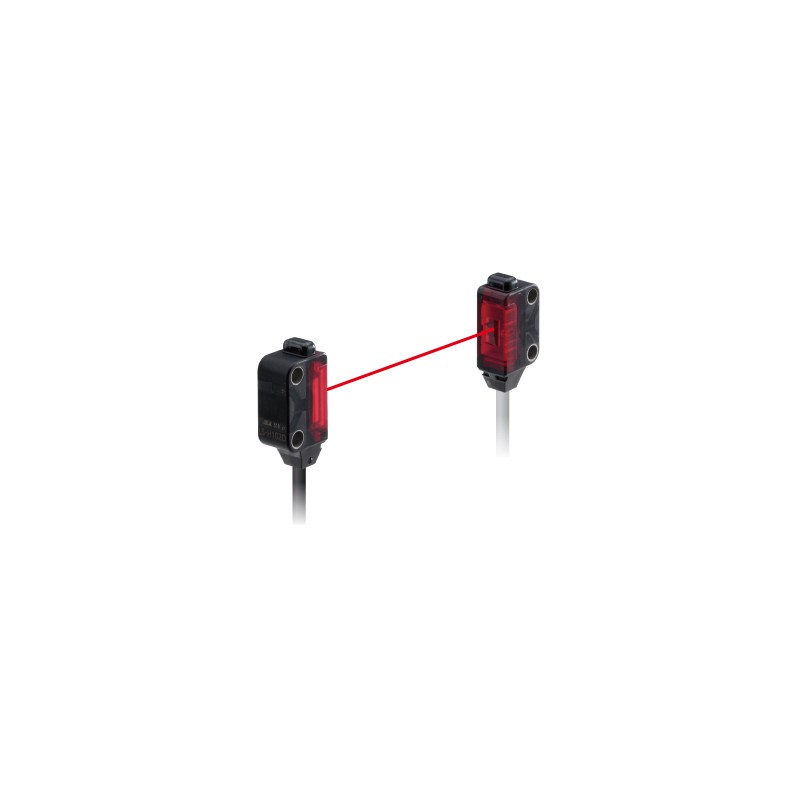

ULSH102C5 LS-H102-C5 PANASONIC Sensor head, thru-beam, side sensing type, range 1m, cable 5m
ULSH102C5
LS-H102-C5
PANASONIC
Sensor head, thru-beam, side sensing type, range 1m, cable 5m
LS500. Sensor head, barrier, side detection, range 1m, cable 5m
LS-H102-C5_Amplifier-separated Type Digital Laser Sensor_Amplifier-separated Type Digital Laser Sensor LS-500_Sensor heads(Thru-beam type)
Digital laser - PANASONIC > LS high precision Digital Laser Sensor - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | LS-H102-C5 |
| Part Number | LS-H102-C5 |
| Product | Amplifier-separated Type Digital Laser Sensor |
| Details | Sensor heads(Thru-beam type) |
| Product name | Amplifier-separated Type Digital Laser Sensor LS-500 |
| Item | Specifications |
|---|---|
| Product Number | LS-H102-C5 |
| Part Number | LS-H102-C5 |
| Regulatory compliance | EMC Directive, RoHS Directive |
| Applicable amplifiers | LS-501(P), LS-501(P)-C2 (Note：When using the thru-beam type LS-H101□ or LS-H102□, do not set the receiving light sensitivity (gctL) of the applicable LS-500 series amplifier to level 2 or less. This is because there is a possibility of sensing becoming unstable.) |
| Sensing range:H-SP mode | 1m 3.281 ft (Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.) (Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m 0.033 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicable LS-500 series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Sensing range:FAST mode | 1m 3.281 ft (Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.) (Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m 0.033 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicable LS-500 series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Sensing range:STD mode | 1m 3.281 ft (Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.) (Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m 0.033 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicable LS-500 series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Sensing range:U-LG mode | 1m 3.281 ft (Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.) (Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m 0.033 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicable LS-500 series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Sensing range:U-LG | 1m 3.281 ft (Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.) (Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m 0.033 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicable LS-500 series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Sensing range:HYPR | 1m 3.281 ft (Note：The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.) (Note：The sensing ranges for coaxial retroreflective type sensors are values for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.01 m 0.033 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the amplifier unit’s receiving sensitivity function to lower the sensitivity, change the response time, or move the sensor head away from the target object. The incident light intensity may vary with the condition of the reflector surface. When using one of the applicable LS-500 series amplifiers, leave an adequate safety margin when setting the threshold.) |
| Spot size | Approx. dia. 5 mm dia. 0.197 in or less (at a distance from the emitter of 1 m 3.281 ft) |
| Sensing object | Opaque, translucent, or transparent object (Note：Make sure to confirm detection with an actual sensor before use.) |
| Operation indicator | Orange LED (lights up when the amplifier output is ON) |
| Protection | IP67 (IEC) |
| Ambient temperature | -10 to +55degrees + 14 to + 131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -20 to +70degrees -4 to +158 degrees Fahrenheit |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm double amplitude or maximum acceleration 98 m/s2 in X, Y, and Z direction for 2 hours each. |
| Shock resistance | 98 m / s2 acceleration (10 G approx.) in X, Y and Z directions three times each |
| Emitting element:Type | Red semiconductor laser diode |
| Emitting element:Peak emission wavelength | 660 nm 0.026 mil |
| Emitting element:Laser class | Class 1 [IEC / EN / JIS / GB / KS / FDA] (Note：This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. |
| Emitting element:Max. output | 2mW |
| Material | Enclosure: PBT Cover: Acrylic |
| Cable | 0.09 mm2 2-core shielded cable, 2 m 6.562 ft long (Note：Cable cannot be extended.) |
| Accessory | MS-EXL2-2 (Mounting plate): 2 pcs. |
