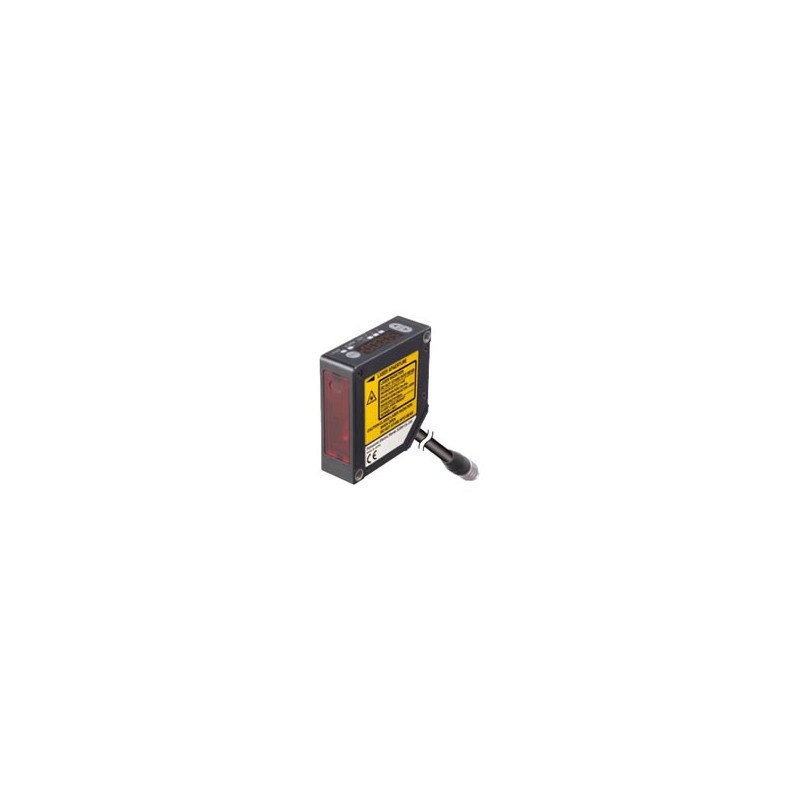

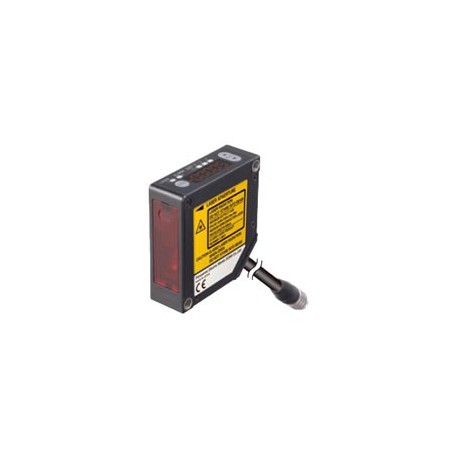

UHLG103SJ HL-G103-S-J PANASONIC Compact Laser Displacement Sensor, High functionality type 30 mm, with conne..
UHLG103SJ
HL-G103-S-J
HL-G103-S-J
PANASONIC
Compact Laser Displacement Sensor, High functionality type 30 mm, with connector cable 0.5 m
CMOS class 2 measuring laser, IP67, Diffuse Reflection, built-in display and amplifier, 2 analog s., 3 selectable digital outputs PNP/NPN, RS422/RS485, measurement range: 30 ± 4 mm., resolution: 0.5 μm., wired connector 0.5 m.
HL-G103-S-J_Compact Laser Displacement Sensor_Compact Laser Displacement Sensor HL-G1_Sensor head (High functionality type)
Laser Sensors - Spot Type - AN - PANASONIC > HL G1 - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | HL-G103-S-J |
| Part Number | HL-G103-S-J |
| Product | Compact Laser Displacement Sensor |
| Details | Sensor head (High functionality type) |
| Product name | Compact Laser Displacement Sensor HL-G1 |
| Item | Specifications |
|---|---|
| Product Number | HL-G103-S-J |
| Part Number | HL-G103-S-J |
| Regulatory compliance | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Type | High functionality type |
| Measurement center distance | 30 mm 1.181 in |
| Measuring range | ± 4 mm ± 0.157 in |
| Resolution | 0.5 μm 0.020 mil |
| Linearity | ± 0.1 % F.S. |
| Temprerature characteristics | ± 0.08 % F.S. / ℃ |
| Light source | Red semiconductor laser, Class 2 (IEC / EN / JIS / GB / KS / FDA (Note：This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. Max. output: 1 mW (Peak emission wavelength: 655 nm 0.026 mil) |
| Beam diameter | 0.1 × 0.1 mm 0.004 × 0.004 in (Note) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2 (13.5 %) of the center light intensity. If there is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than the sensing point itself, then the results may be affected. |
| Receiving element | CMOS image sensor |
| Supply voltage | 24 V DC ± 10 % including ripple 0.5 V (P-P) |
| Current consumption | 100 mA or less |
| Sampling rate | 200 μs, 500 μs, 1 ms, 2 ms |
| Analog output : Voltage | Output range: 0 to +10.5 V (normal), 11 V (alarm) Output impedance: 100 Ohm |
| Analog output : Current | Output range: 3.2 to 20.8 mA (normal), 21.6 mA (alarm) Load impedance: 300 Ω or less |
| Outputs (OUT 1, OUT 2, OUT 3) | Judgment output or alarm output (Setting can be selected.) NPN open-collector transistor / PNP open-collector transistor (selectable) -Maximum sink current: 50 mA -Applied voltage: 3 to 24 V DC (between output and 0 V) -Residual voltage: 2 V or less (at 50 mA of sink current) -Maximum source current: 50 mA -Residual voltage: 2.8 V or less (at 50 mA of source current) |
| Output (OUT 1, OUT 2, OUT 3) : Output operation | Opened when the amount of light is insufficient. |
| Output (OUT 1, OUT 2, OUT 3) : Short circuit protection | Incorporated (automatic restoration) |
| Output polarity setting input | NPN open collector output operates when 0 V is connected. PNP open collector output operates when 24 V DC is connected. |
| Timing input | NPN output operates when 0V is connected and NPN is set. (It depends on the setting.) PNP output operates when external power + is connected and PNP is set. (It depends on the setting.) |
| Multi input | Zero set, zero set off, reset, memory switching, teaching, saving, and laser control according to the input time. In case NPN output is selected, Function varies according to the time 0 V is connected NPN. In case PNP output is selected, Function varies according to the time external power + is connected. |
| Communications interface | RS-422 or RS-485 (selectable) Baud rate: 9,600/19,200/38,400/115,200/230,400/460,800/921,600 bps Data length 8 bit, Stop bit length 1 bit, Without parity check, BCC check, Termination code: CR |
| Indicator : Laser emission | Green LED (lights up during laser emission) |
| Indicator : Alarm | Orange LED lights up when this product cannot measure because of insuffienct or excessive light intensity. |
| Indicator : Measurement range | Three yellow LED |
| Digital display | Red LED 5 digit display |
| Degree of pollution | 2 |
| Operating altitude | 2,000 m 6561 ft or less |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature | -10 to +45 ℃ +14 to +113 ℉ (No dew condensation allowed), Storage: -20 to +60 ℃ -4 to +140 ℉ |
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Environmental resistance : Ambient illuminance | Incandescent light: 3,000 liter x or less at the light-receiving face (Note) The fluctuation by ambient illuminance is ± 0.1 % F.S. or less. |
| Insulation resistance | 20 MOhm , or more, with 250 V DC between all supply teminals connected together and enclosure |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Environmental resistance : Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X,Y and Z directions for two hours each |
| Environmental resistance : Shock resistance | 500 m/s2 acceleration (50 G approx.) in X,Y and Z directions three times each |
| Material | Enclosure: PBT Front cover: Acrylic Cable: PVC |
| Cable | 14-core cabtyre cable with connector, 0.5 m 1.640 ft long |
| Cable extension | Extension up to total 20 m 65.617 ft is possible with optional cable. |
| Weight | Net weight: 70 g approx. (not including cable), 110 g approx. (including cable) Gross weight: 160 g approx. |
| Accessory | Warning label: 1 set |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were as follows: supply voltage 24 V DC, ambient temperature +20 ℃ +68 ℉, sampling rate 500 μs, average number of samples: 1024, measurement center distance, object measured is made of white ceramic and analog measurement values. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: HLG103SJ - HL-G103-S-J | HL-G103-S-J | 3 Mbytes |
|
