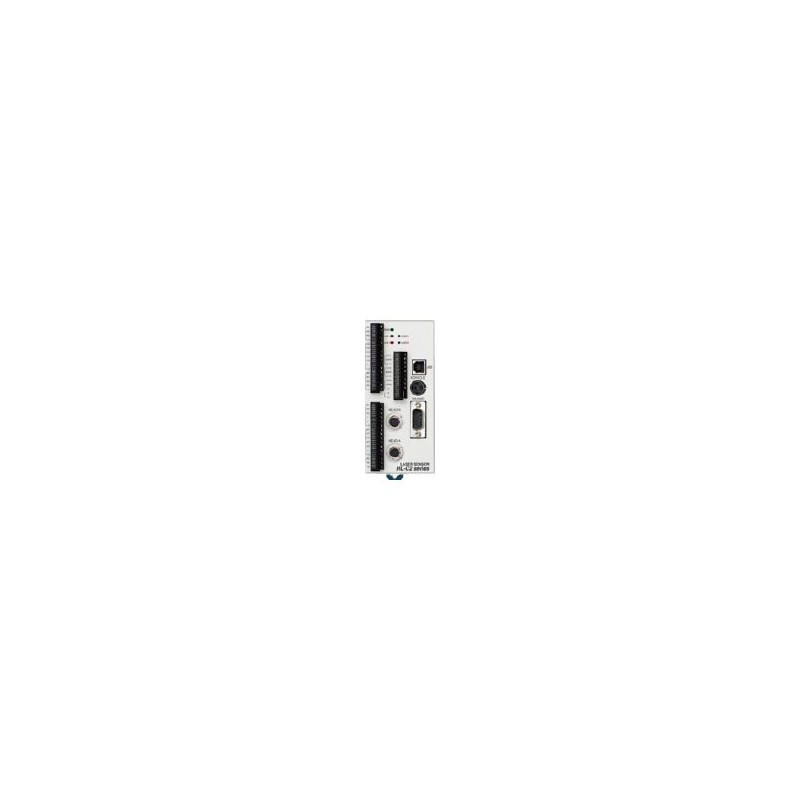

UHLC2CEP HL-C2CE-P PANASONIC Control unite HL-C2, low resolution, -5 to +5V, 4-20mA, PNP-type
UHLC2CEP
HL-C2CE-P
HL-C2CE-P
PANASONIC
Control unite HL-C2, low resolution, -5 to +5V, 4-20mA, PNP-type
High performance analog laser low resolution controller, HL-C2 series, RS232 port, analog output ±5V/ 4 - 20mA, PNP digital output
HL-C2CE-P_Ultra High-speed High-precision Laser Displacement Sensor_Ultra High-speed・High-precision Laser Displacement Sensor HL-C2_Controller
Laser Sensors - Spot Type - AN - PANASONIC > HLC2-Controller - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | HL-C2CE-P |
| Part Number | HL-C2CE-P |
| Product | Ultra High-speed High-precision Laser Displacement Sensor |
| Details | Controller |
| Product name | Ultra High-speed・High-precision Laser Displacement Sensor HL-C2 |
| Item | Specifications |
|---|---|
| Product Number | HL-C2CE-P |
| Part Number | HL-C2CE-P |
| Connectale sensor head | Number of connectable units: Max. 2 units. |
| Supply voltage | 24 V DC plus or minus 10 % including ripple 0.5 V (P-P) |
| Current consumption | 500 mA approx. at 2 sensor heads connected 350 mA approx. at 1 sensor head connected (100 mA approx. is additionally required when the mini console is connected) |
| Sampling rate | 10 micro s, 20 micro s, 40 micro s, 100 micro s, 200 micro s, 400 micro s, 1 ms, 2 ms |
| Analog output : Voltage | Voltage output scale: -5 to +5 V/F.S (initial value) Output range during normal status: -10.0 to +10.0 V Output at abnormal status: -10.8 V or +10.8 V Resolution: 2 mV, Linearity: plus or minus 0.05 % F.S. Max. 2 mA, output impedance 50 Ohm , Response delay time: 1.5 micro s/V approx. (Note) The linearity is F.S.=20 V to digital measurement value. Response delay time is the period after update of measurement value. |
| Analog output : Current | Current output scale: 4 to 20 mA/F.S (initial value) Output range during normal status: 2 to 24 mA Output at abnormal status: 1 mA or 25 mA Resolution: 3 micro A, Linearity plus or minus 0.05% F.S. Load impedance: 250 Ohm max., Response delay time: 10 micro s approx. (Note) The linearity is F.S.=16 mA to digital measurement value. Response delay time is the period after update of measurement value. |
| Alarm output | PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less(between alarm output and +V) - Residual voltage: 1 V or less(at 100 mA source current) |
| Alarm output : Output operation | Opened when the amount of light is insufficient |
| Alarm output : Short-circuit protection | Incorporated |
| Judgment output (HI, GO, LO) | PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less(between judgment output to +V) - Residual voltage: 1 V or less(at 100 mA source current) |
| Judgment output (HI, GO, LO): Output operation | Opened at output operation |
| Judgment output (HI, GO, LO) : Short-circuit protection | Incorporated |
| Strobe output | PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less(between strobe output to +V) - Residual voltage: 1 V or less(at 100 mA source current) |
| Strobe output : Output operation | Opened at data determination |
| Strobe output : Short-circuit protection | Incorporated |
| Remote interlock input | Laser emission is delayed when connected to IL (+). Laser emission stop at open Applied voltage: 30 V DC or less(Leak current: 0.1 mA or less) |
| Laser control input | Laser emission is stopped when connected to external power (+). Laser is emitted immediately after opened. Applied voltage: 30 V DC or less(Leak current: 0.1 mA or less) |
| Zero set input | Zero set is ON when connected with external power (+). Zero set turns to OFF after continuously connected to external power (+) for one second. Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) |
| Timing input | ON at/during connection to external power (+)(depending on analysis mode) Applied voltage: 30 V DC or less(Leak current: 0.1 mA or less) |
| Reset input | Reset is done when connected to external power (+). Applied voltage: 30 V DC or less(Leak current: 0.1 mA or less) |
| Memory change input | Memory is specified when connected to external power (+). Applied voltage: 30 V DC or less(Leak current: 0.1 mA or less) |
| Indicator : Power | Green LED (lights up at power on) |
| Indicator : Sensor head A Laser radiation | Green LED (lights up during or immediately before laser emission of sensor head A) |
| Indicator : Sensor head B Laser radiation | Green LED (lights up during or immediately before laser emission of sensor head B) |
| Indicator : Alarm 1 | Red LED (lights up when OUT1 can not be measured due to insufficient amount of light) |
| Indicator : Alarm 2 | Red LED (lights up when OUT2 can not be measured due to insufficient amount of light) |
| Environmental resistance : Ambient temperature | 0 to +50 degrees +32 to +122 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -20 to +70 degrees -4 to +158 degrees Fahrenheit |
| Environmental resistance : Ambient humidity | 35 to 85 %RH |
| Environmental resistance : Vibration resistance | 10 to 55 Hz frequency (period: 1 min.), 0.75 mm 0.030 in amplitude in X, Y and Z directions for 30 min. each |
| Environmental resistance : Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions for three times each |
| Material | Case: Polycarbonate |
| Weight | 450 g approx. |
| Accessory | USB cable (2 m 6.562 ft long): 1 pc. Short bracket: 1 pc. |
