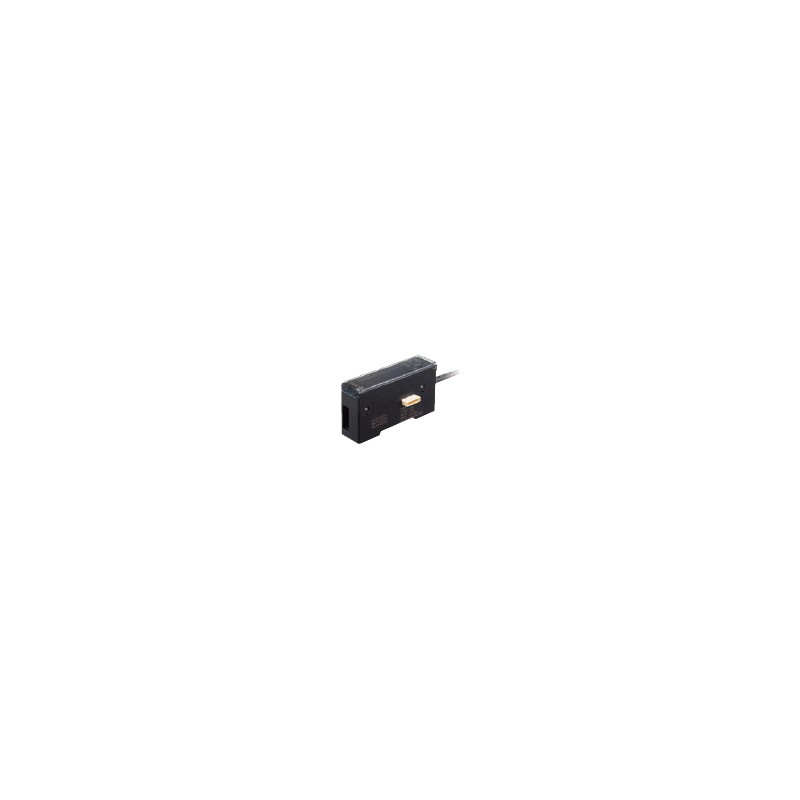

UHGSC112P HG-SC112-P PANASONIC HG-S contact measurement sensor, controller, slave unite, digital output, PNP
UHGSC112P
HG-SC112-P
PANASONIC
HG-S contact measurement sensor, controller, slave unite, digital output, PNP
HG-S - Contact measurement sensor. Slave controller. PNP Digital Output
HG-SC112-P_Contact-Type Digital Displacement Sensor_Contact-Type Digital Displacement Sensor HG-S_Slave unit Standard type
Fiber - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | HG-SC112-P |
| Part Number | HG-SC112-P |
| Product | Contact-Type Digital Displacement Sensor |
| Details | Slave unit Standard type |
| Product name | Contact-Type Digital Displacement Sensor HG-S |
| Item | Specifications |
|---|---|
| Product Number | HG-SC112-P |
| Part Number | HG-SC112-P |
| Regulatory compliance | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Pollution degree | 2 |
| Operating altitude | 2000 m 6561.68 ft or less |
| Environmental resistance : Protection | IP40 (IEC) |
| Environmental resistance : Ambient temperature | -10 to +50 ℃ +14 to +122 ℉ (No condensation or icing), Storage: -20 to +60 ℃ -4 to +140 ℉ |
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Environmental resistance : Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58Hz), maximum acceleration 49 m/s2 (58 to 150 Hz) in X, Y and Z directions for two hours each |
| Environmental resistance : Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each |
| Material | Case: Polycarbonate, Cover: Polycarbonate, Switches: Polyacetal |
| Weight | Net weight: 130 g approx. |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were as follows: supply voltage 24 V DC, ambient temperature +20 ℃ +68 ℉. |
| External inputs (Input 1, Input 2, Input 3):Trigger input | Input time 2 ms or more (ON) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
